High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears

high accuracy automatic rolling shutter machine,automatic rolling shutter machine hydraulic shears,ppgi shutter door machine

automatic rolling shutter machine hydraulic shears

ppgi shutter door machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

پایین درب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

قیچی هیدرولیک دستگاه رول فرمینگ پایینی درب کرکره ای با دقت بالا

مواد خام:

PPGI، GI، PPGL GL

سرعت کار:

10-15 متر در دقیقه

ضخامت مواد:

0.3 میلی متر - 0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

دقت برش:

± 1 میلی متر

قدرت موتور درایو:

5 کیلو وات

نیروگاه ایستگاه هیدرولیک:

5 کیلو وات

برجسته کردن:

high accuracy automatic rolling shutter machine,automatic rolling shutter machine hydraulic shears,ppgi shutter door machine

automatic rolling shutter machine hydraulic shears

ppgi shutter door machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

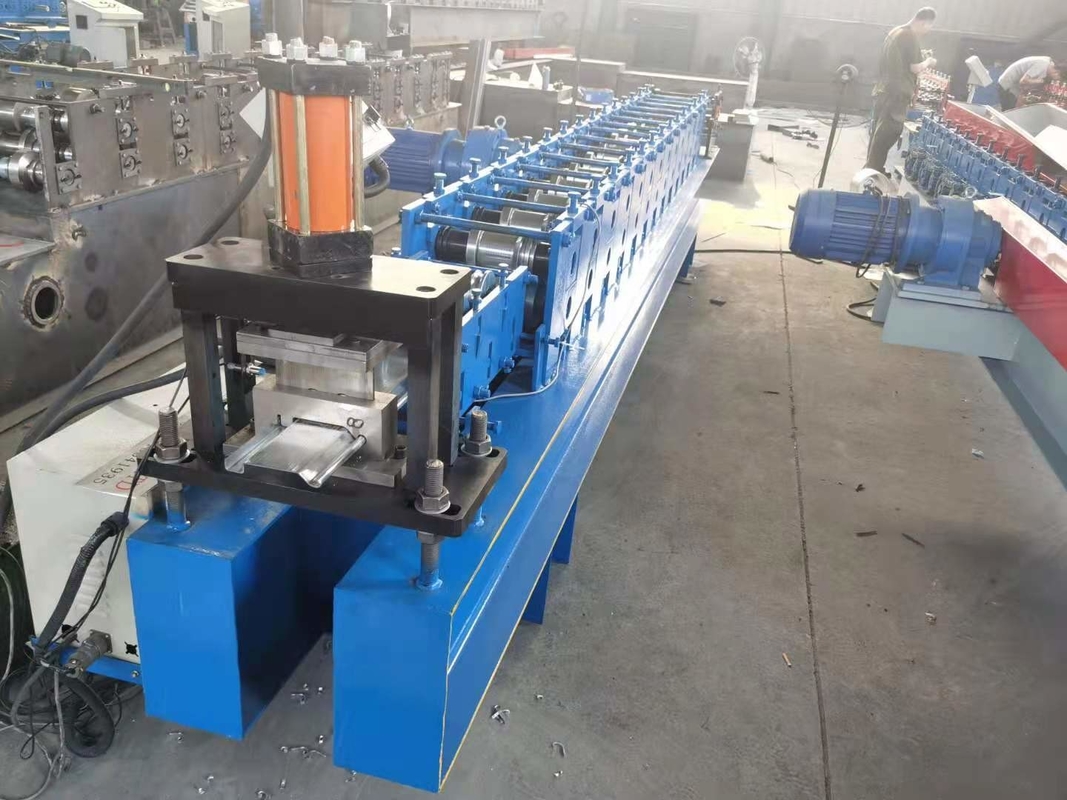

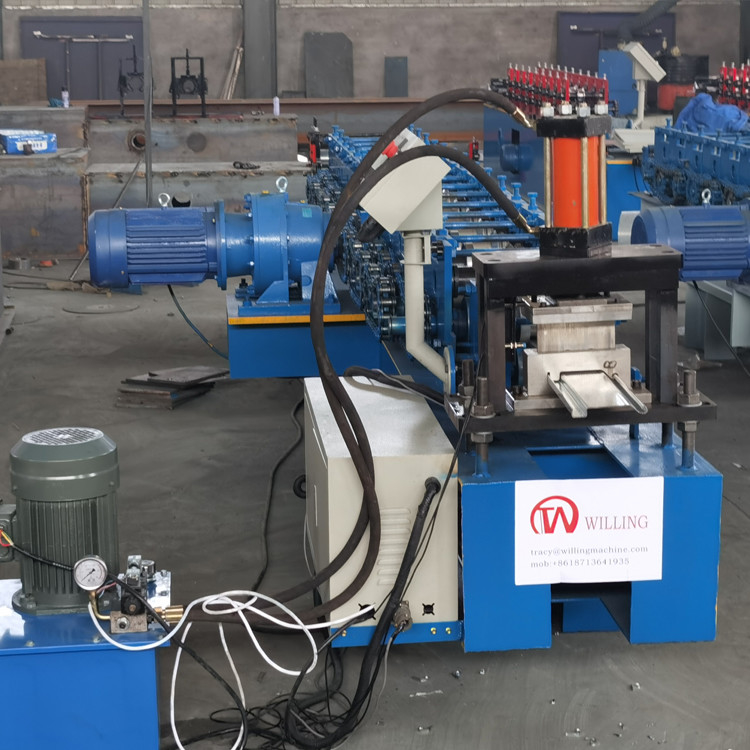

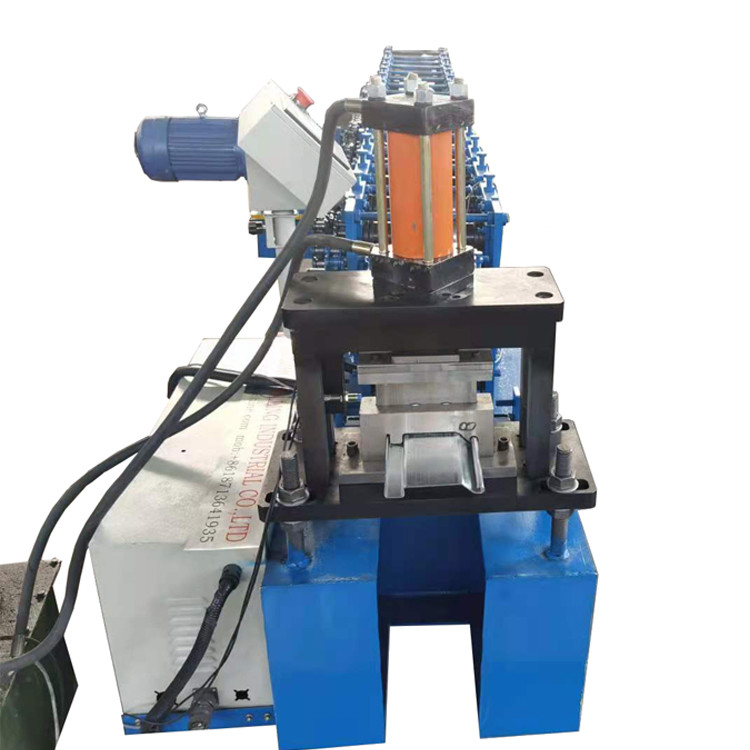

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears

The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.25 mm - 0.9 mm
3	Working Speed	10-15 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine, food, electronics, clean plants, cigarettes, printing, textiles, supermarkets and other light industrial plants.

Advantage

The rolling door produced by this equipment can effectively isolate temperature, heat, insects, noise, and odor, and play a blocking role in the room, reduce energy consumption, and keep the indoor working environment clean. At the same time, the size of the door can be adjusted according to the installation size on site. Windows can be added to increase indoor lighting and transparency.
