Name: Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: یک لایه
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

roof roll forming machine plc control,50hz roof roll forming machine,plc ibr roof sheet forming machine

50hz roof roll forming machine

plc ibr roof sheet forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

یک لایه

با ما تماس بگیرید

درخواست قیمت

Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

جزئیات محصول

نام محصول:

Electric Shear IBR Roof Tiles Roll Forming Machine PLC Control

مواد خام:

PL، GL، PPGL، PPGI

سرعت کار:

16-20 متر در دقیقه

ضخامت مواد:

0.25 میلی متر - 0.9 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

وضعیت:

جدید

قدرت موتور درایو:

4 کیلو وات

قدرت برشی الکتریکی:

4 کیلو وات

برجسته کردن:

roof roll forming machine plc control,50hz roof roll forming machine,plc ibr roof sheet forming machine

50hz roof roll forming machine

plc ibr roof sheet forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

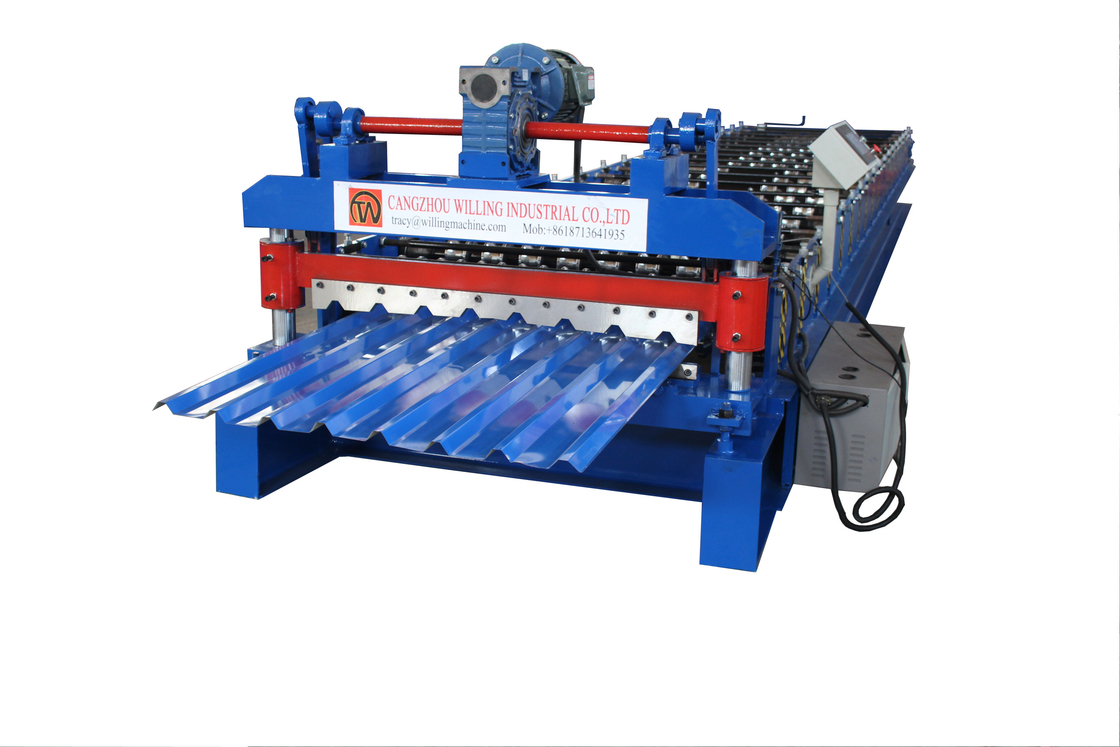

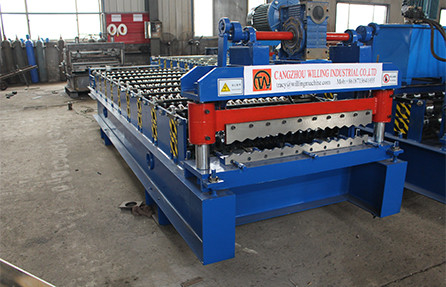

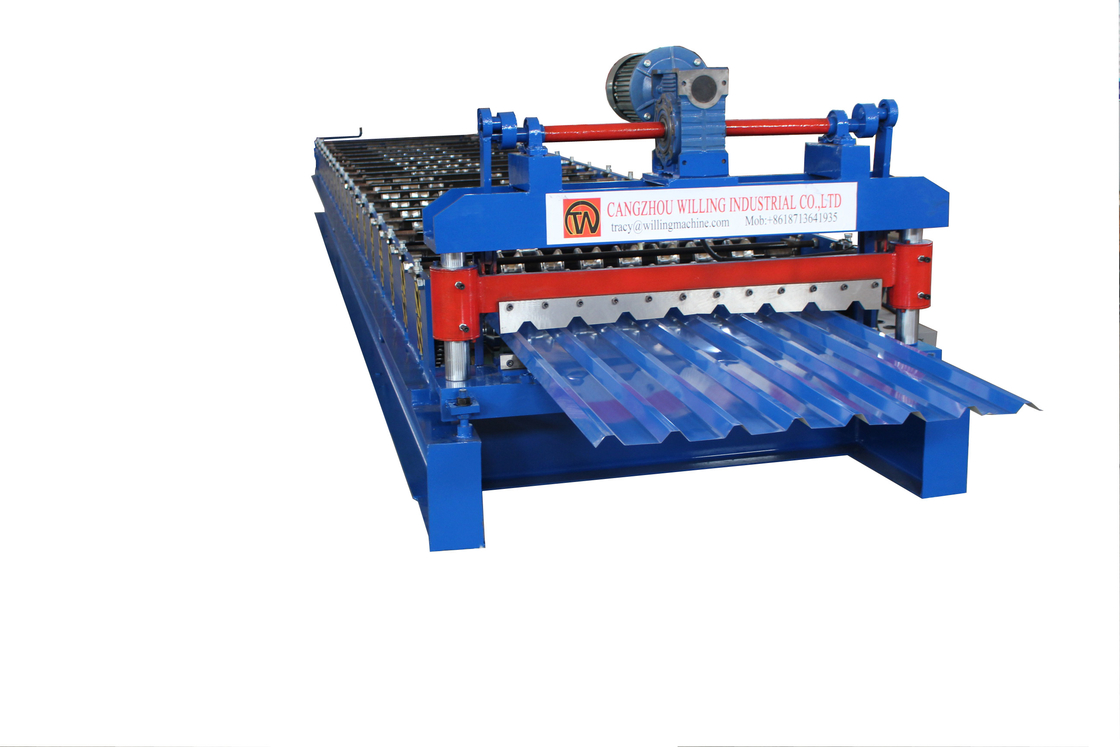

Electric Shear IBR Roof Tiles Roll Forming Machine PLC Control

The PLC control of the electric shearing machine IBR forming machine is a mechanical equipment that uses modern PLC control technology to realize programmed and automated production. The full-automatic tile press can be installed and used separately, or it can be equipped with automatic uncoiler, automatic packaging machine and other production lines.

Specification

No.	Item	Description
1	Coil	PL,GL,PPGI,PPGL
2	Raw Material Thickness	0.25 mm - 0.9 mm
3	Working Speed	15-20 m/min
4	Roller Station	15 Stations
5	Dimension (LWH)	4500 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	4 KW
9	Electric Shear Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This product is widely used in many fields. For example, in factories, warehouses, stadiums, exhibition halls, theaters, laboratories, and prefabricated houses, color steel plates have the advantages of simple installation, durability, long life, corrosion resistance, and good appearance, so they are also widely used in the chemical construction industry.

Advantage

Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
