0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic

ppgi ibr roofing sheet making machine,0.9mm ibr roofing sheet making machine,ppgi ibr roof sheet forming machine

0.9mm ibr roofing sheet making machine

ppgi ibr roof sheet forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه هیدرولیک ساخت ورق سقف ذوزنقه IBR

مواد خام:

PL، GL، PPGL، PPGI

سرعت کار:

16-20 متر در دقیقه

ضخامت مواد:

0.25 میلی متر - 0.9 میلی متر

ولتاژ:

3 فاز 380 ولت 60 هرتز

وضعیت:

جدید

قدرت موتور درایو:

4 کیلو وات

قدرت برشی الکتریکی:

4 کیلو وات

ماده غلتکی:

45# فولاد اندود

اجزای اصلی:

موتور، بلبرینگ، دنده، پمپ، موتور، PLC

برجسته کردن:

ppgi ibr roofing sheet making machine,0.9mm ibr roofing sheet making machine,ppgi ibr roof sheet forming machine

0.9mm ibr roofing sheet making machine

ppgi ibr roof sheet forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

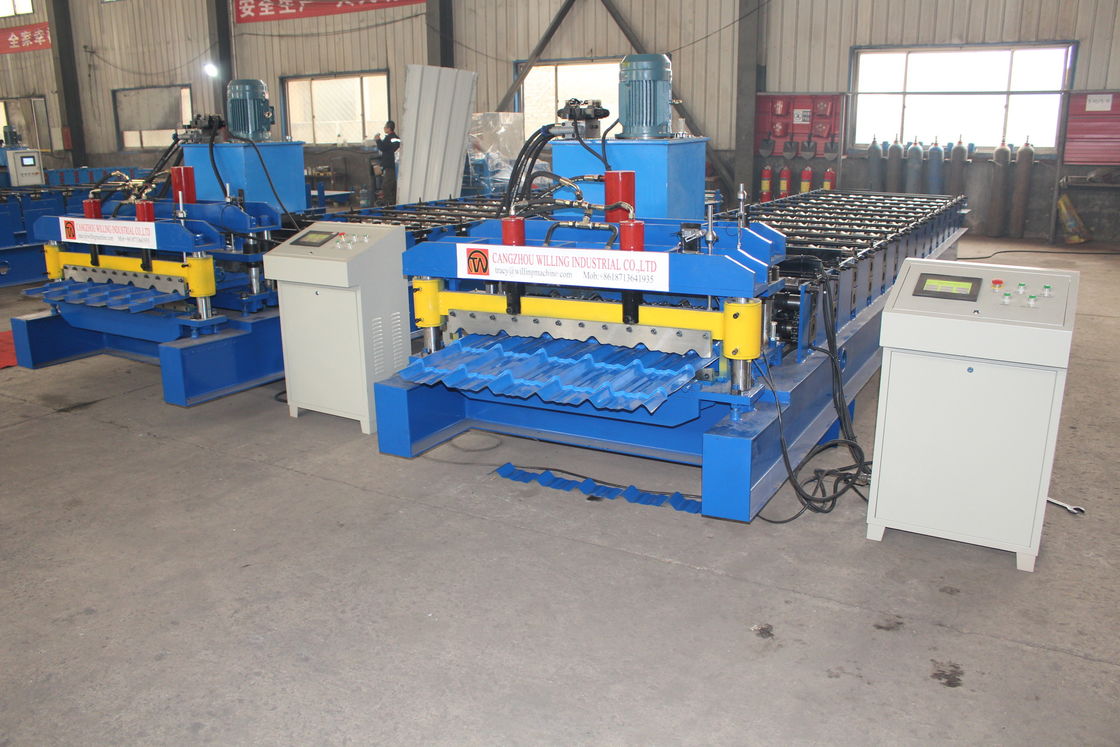

IBR Trapezoid Roofing Sheet Making Machine Hydraulic

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.
The equipment automatically set in accordance with the computer data to produce different lengths of finished products.
For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

Specification

No.	Item	Description
1	Coil	PL,GL,PPGI,PPGL
2	Raw Material Thickness	0.25 mm - 0.9 mm
3	Working Speed	15-20 m/min
4	Roller Station	15 Stations
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	4 KW
9	Electric Shear Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

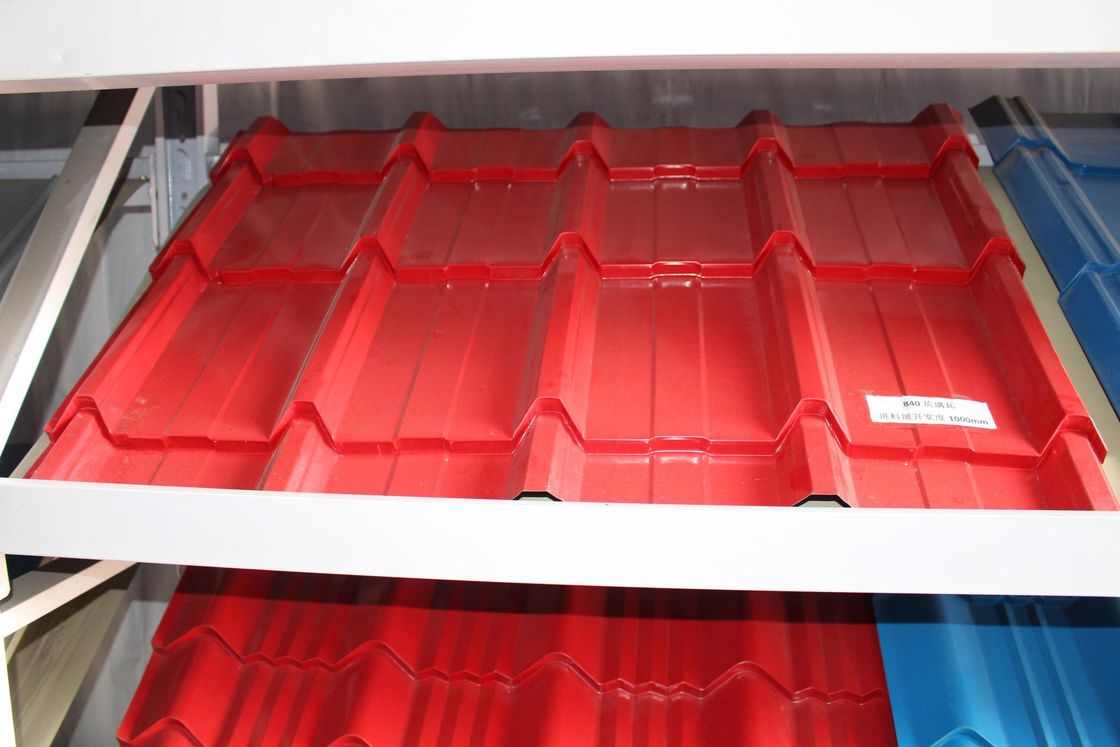

The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.

Advantage
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
