Name: Electric Shearing Ppgl Double Layer Forming Machine Trapezoid And Corrugated
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Electric Shearing Ppgl Double Layer Forming Machine Trapezoid And Corrugated

ppgl double layer forming machine,electric shearing double layer forming machine,ppgl corrugated roll forming machine

electric shearing double layer forming machine

ppgl corrugated roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه قیچی برقی دولایه رول فرمینگ ذوزنقه ای و راه راه

خدمات پس از فروش ارائه شده است:

مهندسان موجود در خدمت

مواد خام:

GI، GL، PPGI، PPGL

ولتاژ:

380/50Hz/3PH

سیستم کنترل:

PLC

سرعت:

15-20 متر در دقیقه

ضخامت:

0.25 میلی متر-0.8 میلی متر

قدرت:

3 کیلو وات

برجسته کردن:

ppgl double layer forming machine,electric shearing double layer forming machine,ppgl corrugated roll forming machine

electric shearing double layer forming machine

ppgl corrugated roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

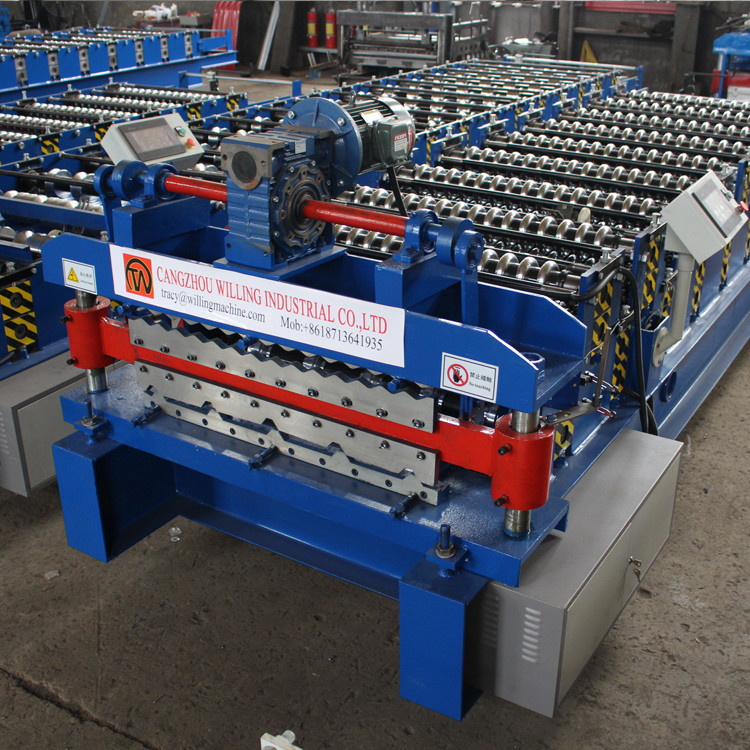

Electric Shearing Double Layer Roll Forming Machine Trapezoid And Corrugated

Electric Shearing Double Layer Roll Forming Machine can press two types of sheets. The advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two Single board computer.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.25-0.8mm
3	Working Speed	15-20/min
4	Roller Station	18/16 Raws
5	Dimension (LWH)	8500 mm1200 mm1200 mm
6	Machine Weight	4800 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Electric Shearing Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This two type sheet is the common used roof tiles, widely use in wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc.

Advantage

this mahcine suitable for many type raw materials like GI, GL, PPGI, PPGL, aluminum plate, etc. due to it have the function of anti-corrosion and acid resistance so the service life is 10-15 years , It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance , Fireproof, rainproof and long service life ect.
