Hydraulic Crimping PPGI Roof Tile Roll Forming Machine For Curved Arch Sheet

ppgi roof tile roll forming machine,3ph roof tile roll forming machine,curved arch roof tile roll former

3ph roof tile roll forming machine

curved arch roof tile roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ورق سقف قوسی منحنی دستگاه رول چین دار هیدرولیک

مواد خام:

ورق PPGI/گالوانیزه

ولتاژ:

380/50Hz/3PH

سیستم کنترل:

PLC

ابعاد (L*W*H):

1600*1200*1350 میلی متر

قدرت موتور:

4 کیلو وات

عرض مواد خام:

1000 میلی متر

نیروگاه ایستگاه هیدرولیک:

4 کیلو وات

ویژگی ها:

عمل آسان

وزن:

2500 کیلوگرم

برجسته کردن:

ppgi roof tile roll forming machine,3ph roof tile roll forming machine,curved arch roof tile roll former

3ph roof tile roll forming machine

curved arch roof tile roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

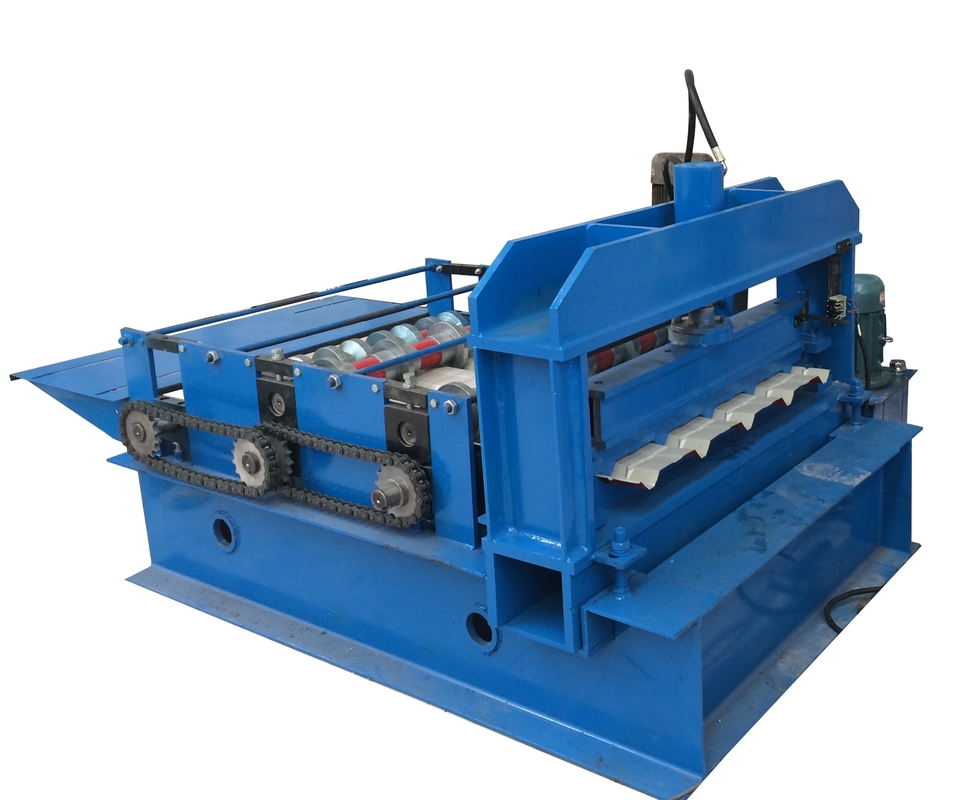

Hydraulic Crimping Roll Forming Machine Curved Arch Roof Sheet

This is a machine designed by our company to solve the water accumulation on the roof. This machine has changed the inefficiency of manual operation before adopting a modern high-efficiency fully automated PLC control system. Because its bending angle can be adjusted greatly and conveniently, the limitations of traditional production are changed.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	90deg per 4 min
4	Roller Station	3 Raws
5	Electrical Control System	Panasonic PLC
6	Motor power	4 KW
7	Hydraulic Station Power	4KW
8	Power Supply	380V/50HZ/3 PH
9	Cutting Accuracy	±2 mm
10	Driving Mode	Single Chain 1 inch
11	Material of Shaft	70 mm 45#steel forged
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively.

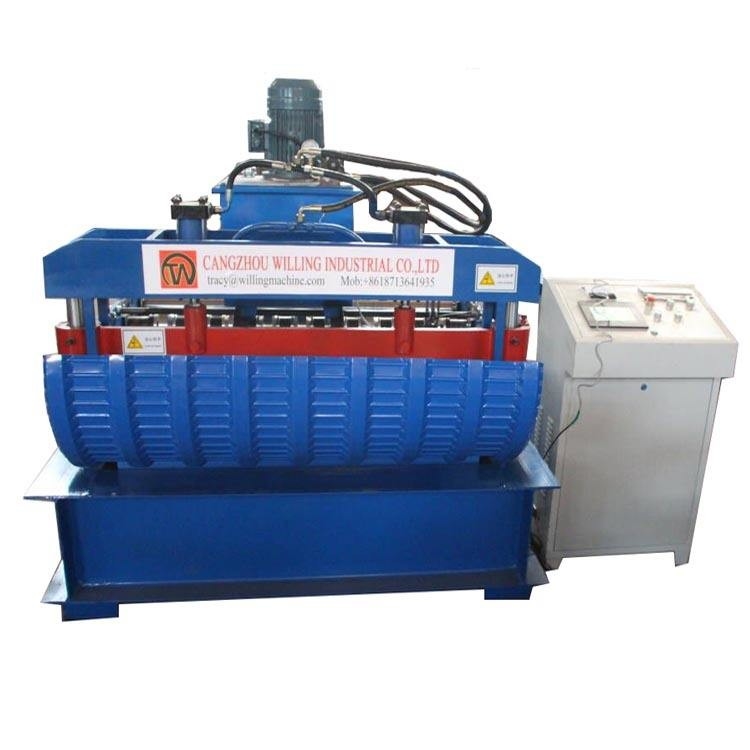

Main crimping machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic Crimping PPGI Roof Tile Roll Forming Machine For Curved Arch Sheet 0
