Aluminum Plc Control 0.8mm Roof Roll Forming Machine

plc control roof roll forming machine,0.8mm roof roll forming machine,plc control tile roll forming machine

0.8mm roof roll forming machine

plc control tile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

Aluminum Plc Control 0.8mm Roof Roll Forming Machine

جزئیات محصول

نام محصول:

آلومینیوم سقف کاشی ورق پانل رول شکل گیری ساخت ماشین Plc کنترل

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

گارانتی:

1 سال

ضخامت نورد:

0.3-0.8mm

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

قدرت موتور:

4 کیلو وات

عرض تغذیه:

1220 میلی متر

ضخامت مواد:

0.25-0.8 میلی متر

فشار ایستگاه هیدرولیک:

12.0 مگاپاسکال

برجسته کردن:

plc control roof roll forming machine,0.8mm roof roll forming machine,plc control tile roll forming machine

0.8mm roof roll forming machine

plc control tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

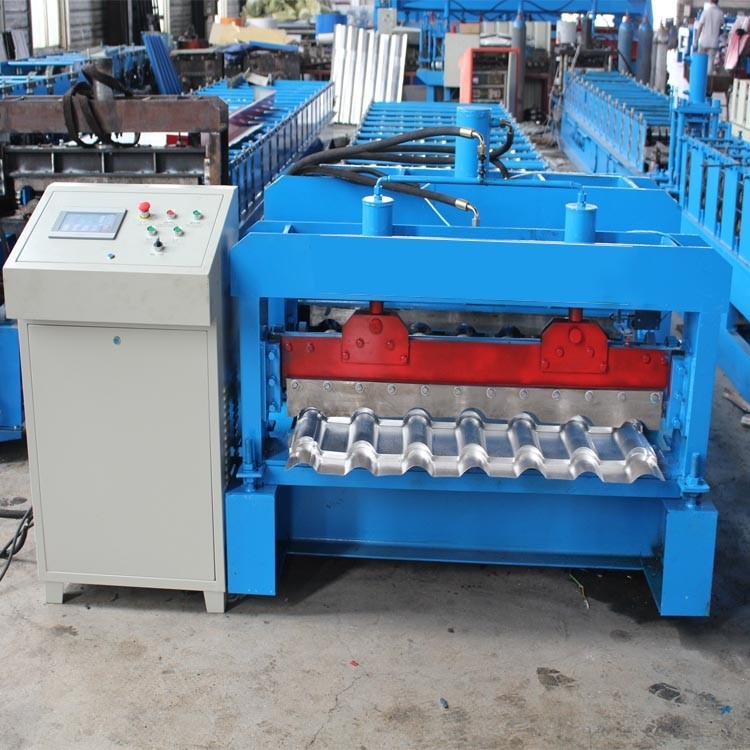

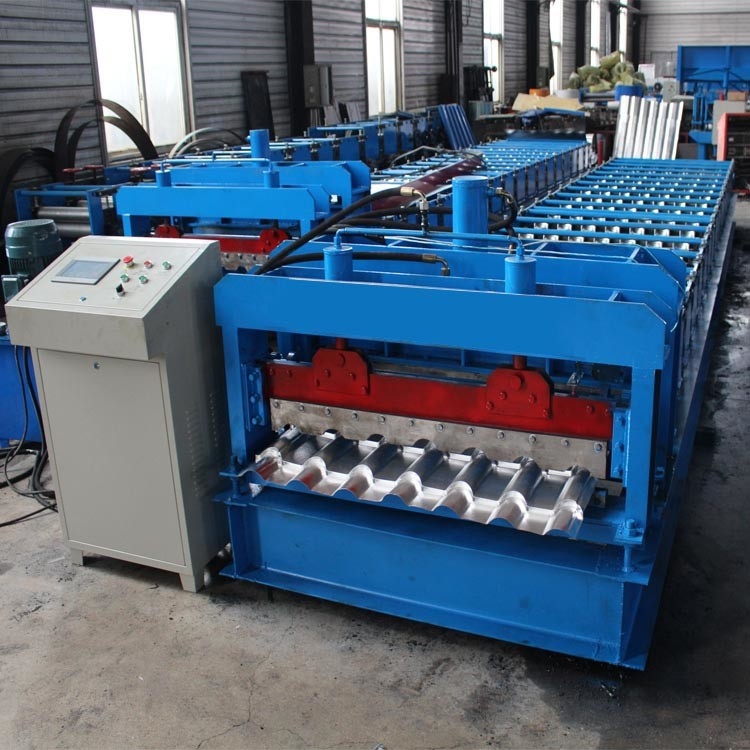

Aluminum Roofing Tile Sheet Panel Roll Forming Making Machine Plc Control

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability. This machine can be customized.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	8-30m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Electrical Control System	Delta PLC (can be customized)
6	Drive Motor Power	4KW
7	Hydraulic Station Power	4KW
8	Power Supply	380V, 50HZ, 3 PHASES(can be customized)
9	Cutting Accuracy	±2 mm
10	Driving Mode	Single Chain 1 inch
11	Material of Shaft	70 mm 45#steel forged
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Application
They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.

Packaging & Delivery

Important Components Wiped with Anti Rust Oil, Rollers and Shafters covered by foam film,Hydraulic station PLC control Box Spare parts and some small parts packed in plywood box,All Components Fixed by steel wire in Container.
