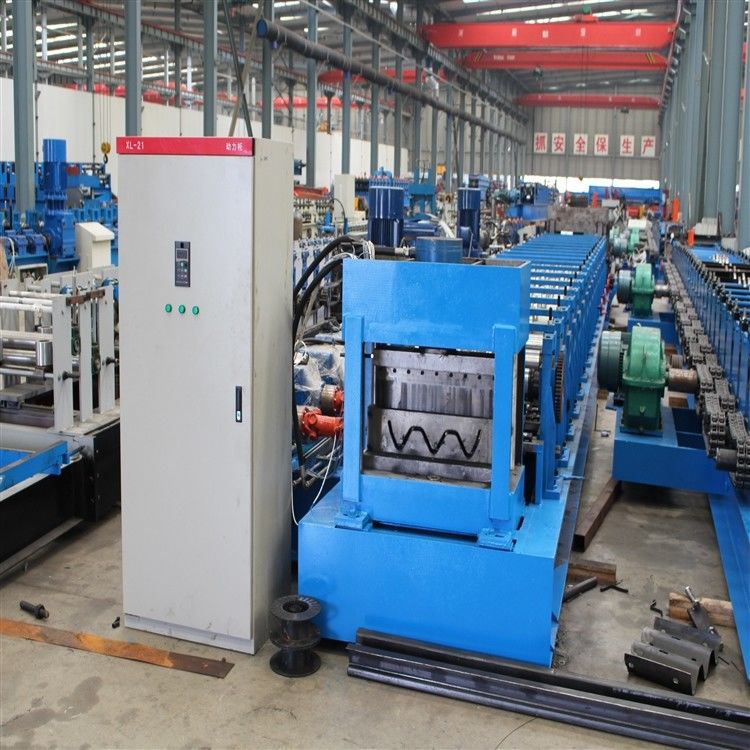

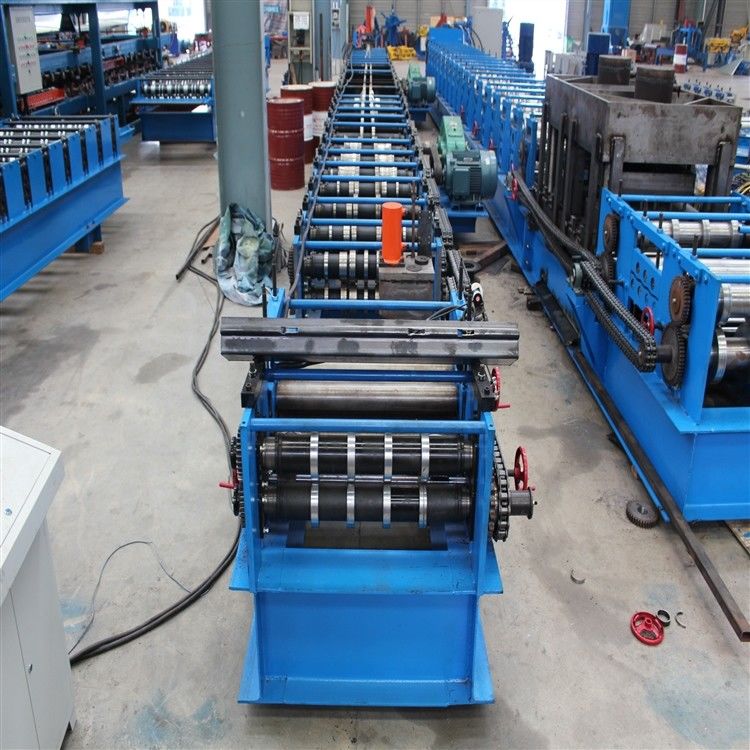

Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive

chain drive highway guardrail forming machine,914mm highway guardrail forming machine,chain drive corrugated roll forming machine

914mm highway guardrail forming machine

chain drive corrugated roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

تیرهای فولادی ورق موجدار بزرگراه رول تشکیل ماشین

ولتاژ:

380 ولت 50 هرتز 3 فاز، 380 ولت یا به عنوان سفارشی

نوع درایو:

درایو زنجیر

سرعت کار:

8-12 متر در دقیقه

مواد خام:

فولاد

عرض تغذیه:

914-1250 میلی متر

سیستم کنترل:

کنترل PLC

وزن:

4500 حدود کیلوگرم

برجسته کردن:

chain drive highway guardrail forming machine,914mm highway guardrail forming machine,chain drive corrugated roll forming machine

914mm highway guardrail forming machine

chain drive corrugated roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

بهترین قیمت رو بدست بیار

ویدئو

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

بهترین قیمت رو بدست بیار

ویدئو

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

بهترین قیمت رو بدست بیار

ویدئو

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Highway Guardrail Roll Forming Machine Corrugated Sheet Steel Beams

Highway Guardrail Roll Forming Machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.

Specification

weight capacity of decoiler	6-9 T
machine stand	welded shape steel
type of forming machine	wallboard type with chain transmissionfloor deck
diameter of shaft	85mm
orming speed:	10-18m/min
roll station	19 stations(according profile)
material of roller	45 steel
type of cutting	hydraulic cutting
Dimension	580012001500
material of cutting blade	Cr12
thickness of steel coil	1.5-3.0 mm
Control system	PLC brand
Warranty	1 year

Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
