Trapezoidal Profile Ppgi Roof Tile Roll Former Electric Cutting

ppgi roof tile roll former,trapezoidal profile roof tile roll former,ppgi steel tile forming machine

trapezoidal profile roof tile roll former

ppgi steel tile forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سقف کاشی ذوزنقه ای شکل رول شکل گیری ماشین برش برقی

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

18 - 32 GA

عرض تغذیه:

925 میلی متر

وضعیت:

جدید

ولتاژ:

380 ولت

قدرت حرکتی اصلی:

3 کیلو وات

قدرت برش:

3 کیلو وات

حالت رانندگی:

تک زنجیر 1 اینچ

برجسته کردن:

ppgi roof tile roll former,trapezoidal profile roof tile roll former,ppgi steel tile forming machine

trapezoidal profile roof tile roll former

ppgi steel tile forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

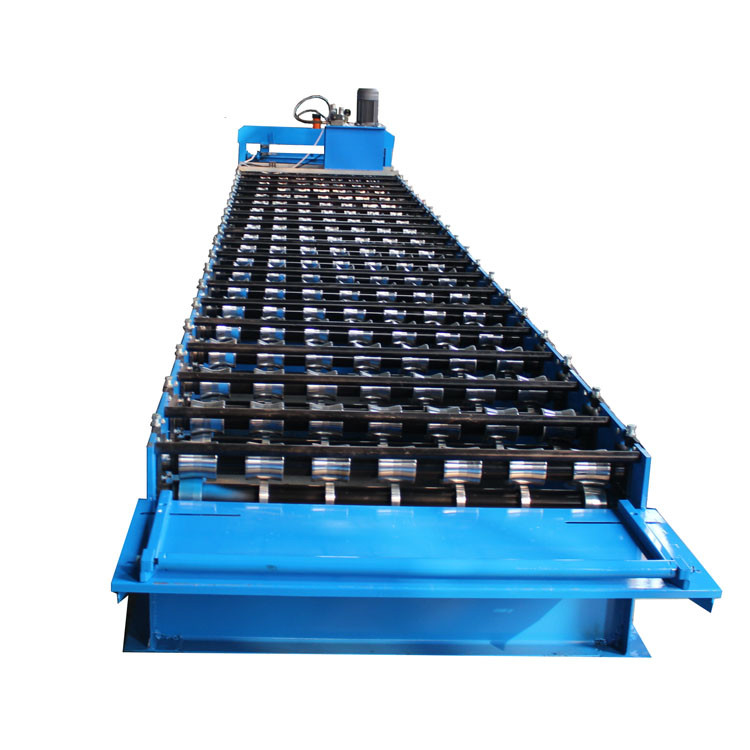

Roof Tile Trapezoidal Profile Roll Forming Making Machine Electric Cutting

This roll forming machine is for steel sheet cold-form industries. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel roof or wall panel. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Specification

Material Thickness	0.25-0.8 mm
Working Speed	15 m/min
Roller Stations	15 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	3 KW
Electrical Cutting	3 KW
Cutting accuracy	±2 mm
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Trapezoidal Profile Ppgi Roof Tile Roll Former Electric Cutting 0

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
