Steel Profile 415V Glazed Roof Tile Making Machine Plc

415v glazed roof tile making machine,plc glazed roof tile making machine,415v glazed tile making machine

plc glazed roof tile making machine

415v glazed tile making machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

پروفیل فولادی دستگاه کاشی سازی سقف لعابدار

ماده غلتکی:

45# فولاد

جنس شفت اصلی:

45# فولاد

ولتاژ:

380v/415v

سیستم کنترل:

PLC

ضخامت مواد:

0.25-0.8 میلی متر

سرعت کار:

1- 5 متر در دقیقه

قدرت حرکتی اصلی:

4 کیلو وات

گارانتی قطعات اصلی:

1 سال

درجه خودکار:

خودکار

برجسته کردن:

415v glazed roof tile making machine,plc glazed roof tile making machine,415v glazed tile making machine

plc glazed roof tile making machine

415v glazed tile making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

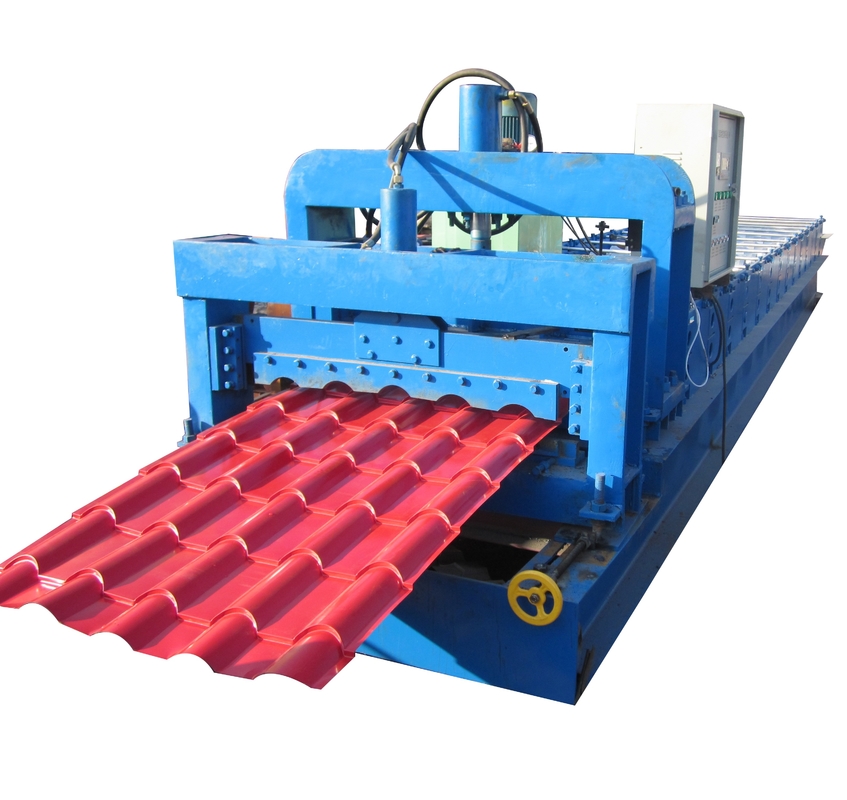

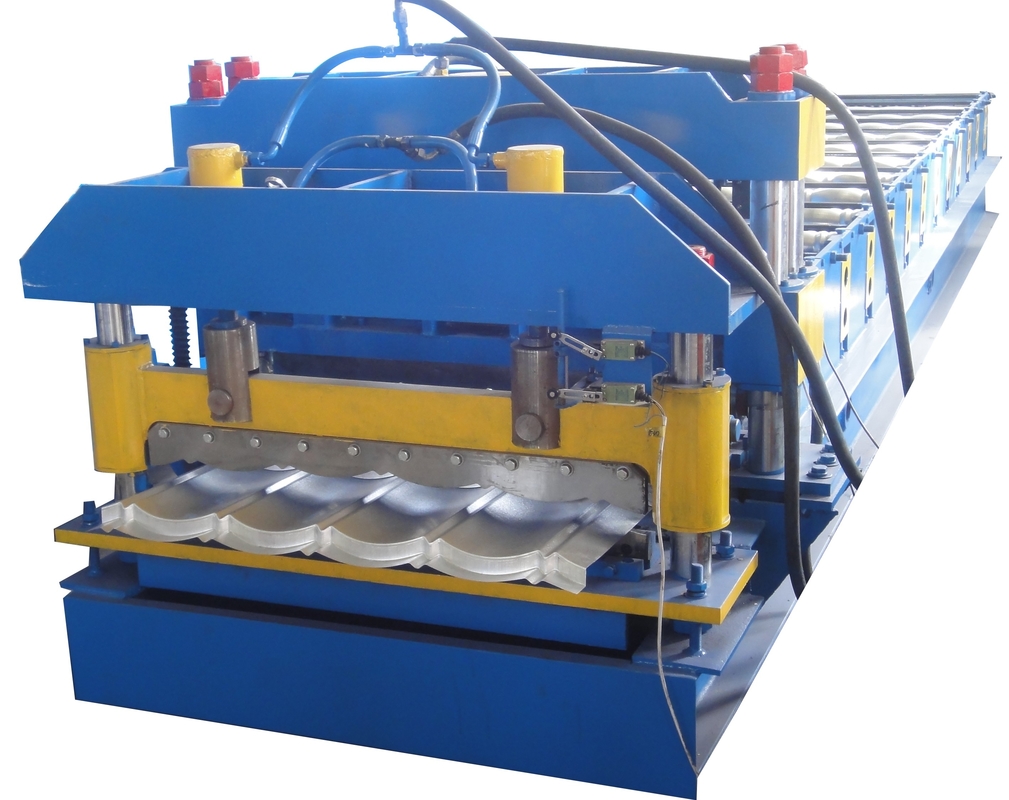

Glazed Roof Tile Making Machine Steel Profile

Glazed Steptile Roof Tile Roll Forming Machine adopts hydraulic creasing and hydraulic shearing has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

Specification

Material Thickness	0.25-0.8 mm
Working Speed	1- 5 m/min
Roller Stations	15 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
