1.25'' Low Ribs Sheet Roof Roll Forming Machine Hydraulic System Plc

roof roll forming machine plc,1.25 inch roof roll forming machine,1.25" roofing sheet roll forming machine

1.25 inch roof roll forming machine

1.25" roofing sheet roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

1.25 اینچ کم دنده سقف ورق رول فرمینگ ماشین سیستم هیدرولیک

استفاده کردن:

پانل سقف و دیوار

خدمات پس از فروش ارائه شده است:

مهندسان موجود برای ماشین آلات در خارج از کشور ، پشتیبانی فنی ویدیویی ، پشتیبانی آنلاین ، خدمات تعمیر

سیستم کنترل:

PLC

مواد خام:

ورق PPGI/گالوانیزه

قاب اصلی:

فولاد 350 H

نوع برش:

برش هیدرولیکی

دقت برش:

± 2 میلی متر

برجسته کردن:

roof roll forming machine plc,1.25 inch roof roll forming machine,1.25" roofing sheet roll forming machine

1.25 inch roof roll forming machine

1.25" roofing sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

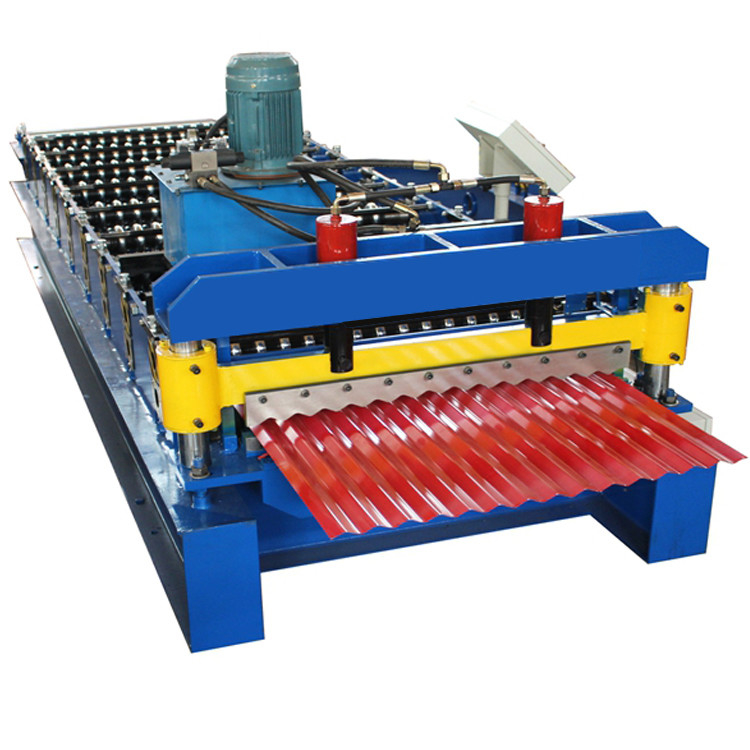

1.25'' Low Ribs Roofing Sheet Roll Forming Machine Hydraulic System

The lower corrugations of 1.25″ Corrugated make it primarily a wall panel – though it has been chosen on roofs with special consideration.

This machine is manufactured from high tensile steel and to the

strictest standards using high precision welding. The heavy duty,

high tensile steel, single columns are chromium plated for maximum life span.

1.25″ Corrugated is most popular in non-painted Galvalume or Galvanized finish, though painted finishes are available.

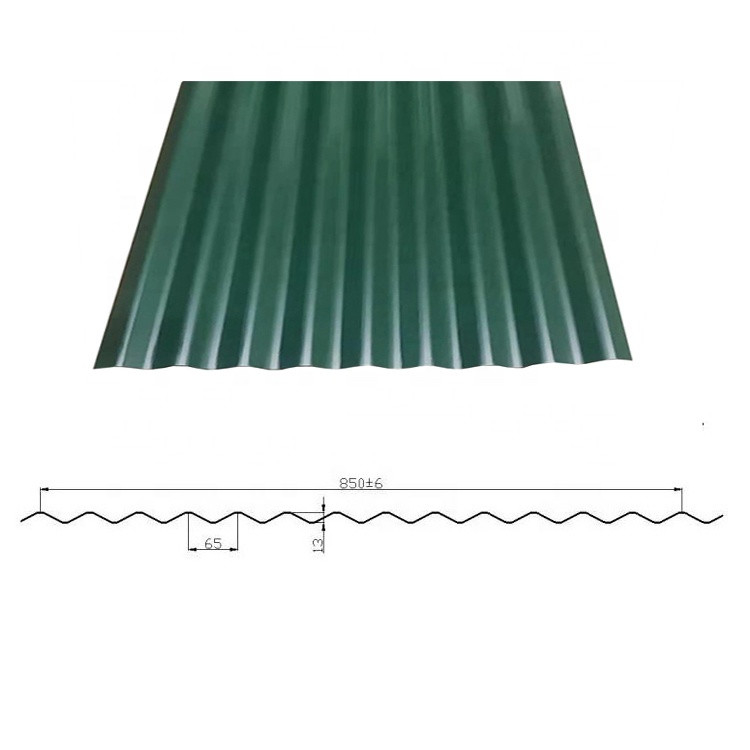

Profile
1.25'' Low Ribs Sheet Roof Roll Forming Machine Hydraulic System Plc 0

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15 m/min
Roller Stations	15 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
