Name: Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کاشی Met / کاشی لعابدار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

ppgi high speed roll forming machine,380v high speed roll forming machine,ppgi tile roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

کاشی Met / کاشی لعابدار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

USA Met / لعاب کاشی نورد ماشین قالب گیری سرعت بالا

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت

استفاده کردن:

تابلو پشت بام

گارانتی:

1 سال

ضخامت مواد:

0.25-0.8 میلی متر

هیدرولیک برق:

4 کیلو وات

دقت برش:

± 2 میلی متر

برجسته کردن:

ppgi high speed roll forming machine,380v high speed roll forming machine,ppgi tile roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

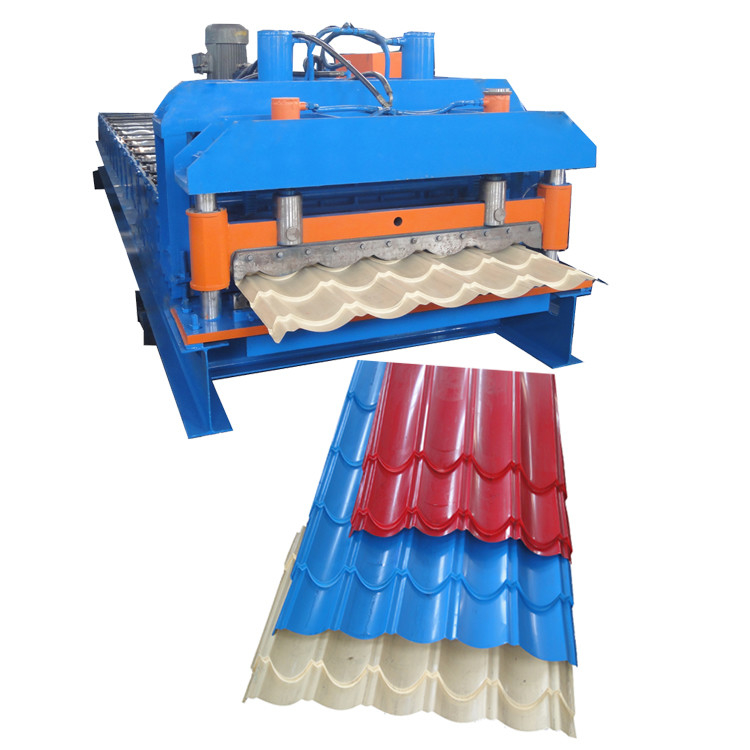

USA Met / Glaze Tile Rolling Molding Machine High Speed

Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles.

Met-Tile roofing panel provides the appearance of tile roofing with all the advantages and performance of metal. Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.

Metal roof tiles with “steps” are rollformed using a rollforming machine from pre-painted steel and Galvanized steel. The Step Tile is formed using pre-painted steel and Galvanized steel.

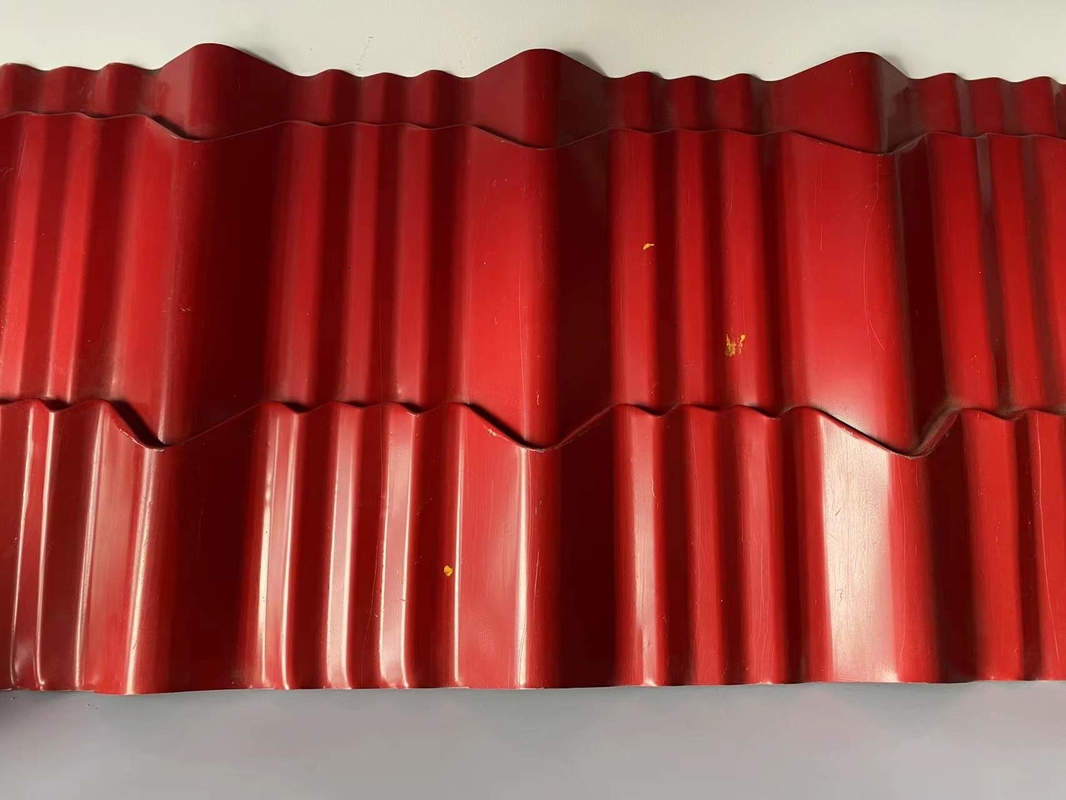

Profile

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v 0

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15m/min
Main servo	5.5kw
Hydraulic Station Power	4 kw
Electrical Control System	PLC
Suitable Material	PPGI (235Mpa)
Material of Cutter	Cr12
Driving Mode	single chain 1 inch
Cutting accuracy	±2 mm
Power Supply	380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure	12.0 Mpa

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
