Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel

plc roof tile roll forming machine,ppgi roof tile roll forming machine,plc color steel roll forming machine

ppgi roof tile roll forming machine

plc color steel roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سر و صدا کم لعاب سقف-کاشی ساخت دستگاه رنگ فولادی

خدمات پس از فروش ارائه شده است:

مهندسان موجود برای ماشین آلات در خارج از کشور ، پشتیبانی فنی ویدیویی ، پشتیبانی آنلاین ، خدمات تعمیر

ظرفیت تولید:

3-5 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

وزن:

5.8 تن

زمان تحویل:

45 روز کاری

اتهام اتوماسیون:

کامل اتوماتیک

برجسته کردن:

plc roof tile roll forming machine,ppgi roof tile roll forming machine,plc color steel roll forming machine

ppgi roof tile roll forming machine

plc color steel roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

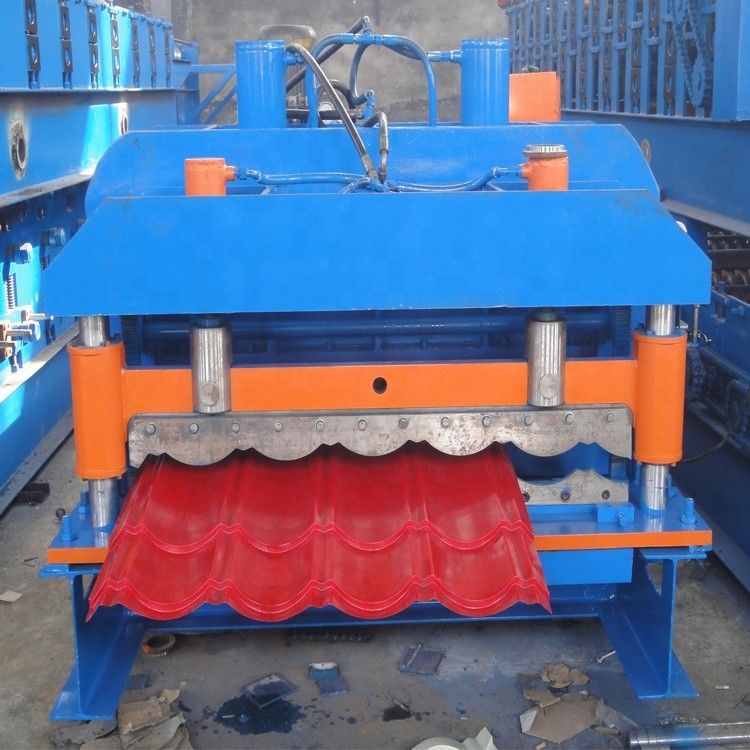

Low Noise Glazed Roof-Tile Making Machine Color Steel

Our Full automatic PPGI Versatile Versa tile roofing tile color steel roll forming machine 0.3-0.8mm for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

ADVANTAGES OF OUR ROLL-FORMERS AS A START-UP COMPANY

• Simple manufacturing process (one manufacturing process).

• Easy administration (very few product lines and variations).

• High demand for product.

• Easy to market.

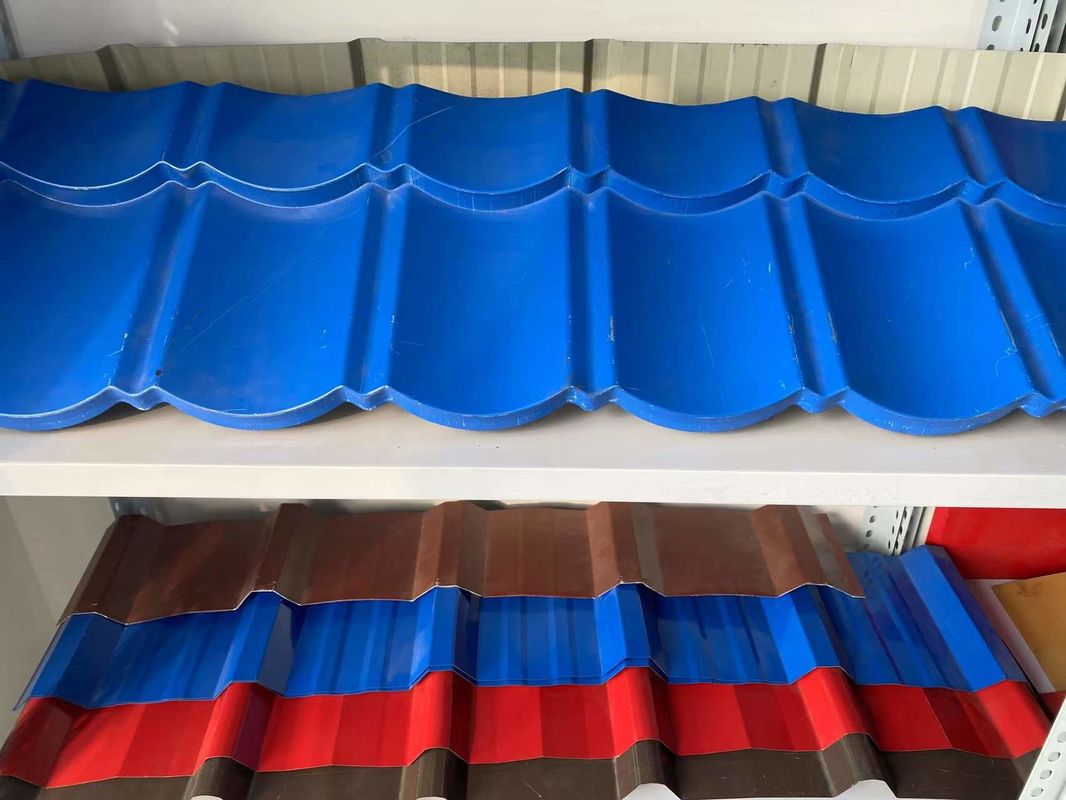

Profile
Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel 0

Specification

1.Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free)
3.Main body	Roller station	13 rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Chain transmission
	Weight	5.8T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	5.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
