Name: Garage PPGI Shutter Door Roll Forming Machine 15m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: پایین درب
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Garage PPGI Shutter Door Roll Forming Machine 15m/Min

ppgi shutter door roll forming machine,15m/min shutter door roll forming machine,ppgi shutter door rolling machine

15m/min shutter door roll forming machine

ppgi shutter door rolling machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

پایین درب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خطوط رول درب گاراژ برای فروش در بریتانیا

مواد خام:

PPGI، GI، PPGL GL

سرعت کار:

10-15 متر در دقیقه

ضخامت مواد:

0.3 میلی متر - 0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

دقت برش:

± 1 میلی متر

قدرت اصلی:

4 کیلو وات

قدرت پمپاژ:

4 کیلو وات

اندازه Cr-Plating:

0.05 میلی متر

ایستگاه رول:

11 می ایستد

برجسته کردن:

ppgi shutter door roll forming machine,15m/min shutter door roll forming machine,ppgi shutter door rolling machine

15m/min shutter door roll forming machine

ppgi shutter door rolling machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

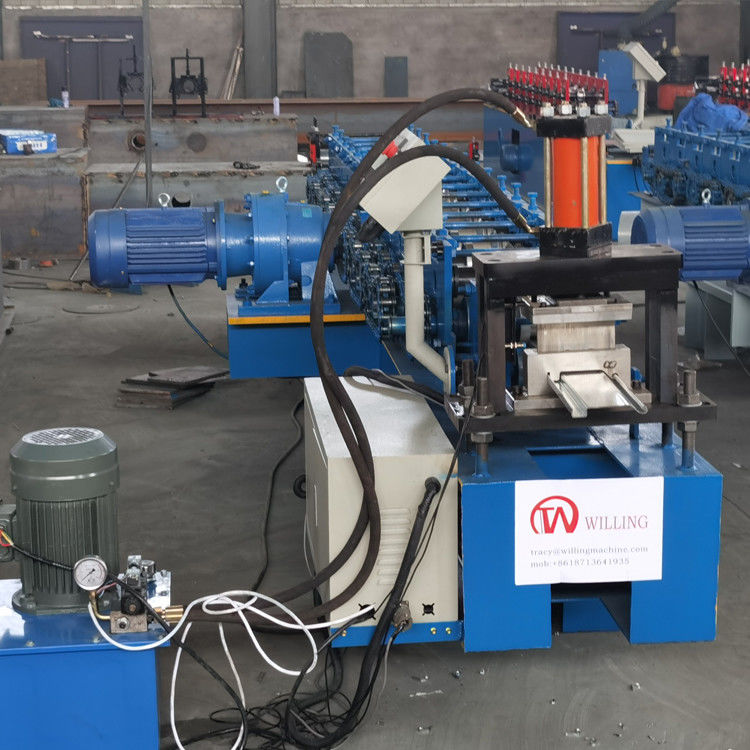

Garage Door Roll Forming Lines For Sale In Uk

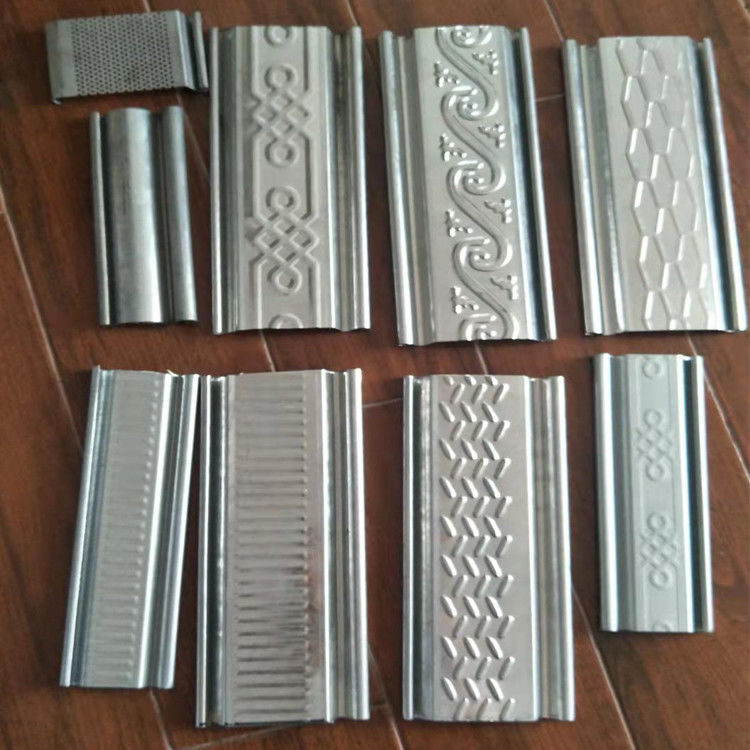

The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.25 mm - 0.9 mm
3	Working Speed	10-15 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Power Supply	380V, 50HZ, 3 PHASES(can be customized)
9	Cutting Accuracy	± 1 mm
10	Driving Mode	Gear Wheel
11	Material of Shaft	60 mm 45#steel forged
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
