Name: Shutter Slat Door Steel GI Cold Roll Forming Machine 380V
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: پایین درب
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Shutter Slat Door Steel GI Cold Roll Forming Machine 380V

gi cold roll forming machine,cold roll forming machine 380v,gi shutter door roll forming machine

cold roll forming machine 380v

gi shutter door roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

پایین درب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

شاتر اسلت درب رول فرمینگ ماشین فولاد سرد

مواد خام:

PPGI، GI، PPGL GL

بهره وری:

10-25 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

دقت برش:

± 1 میلی متر

مواد غلتک:

45# فولاد

قطر شافت:

75 میلی متر

قطر غلتک:

50 میلی متر

برجسته کردن:

gi cold roll forming machine,cold roll forming machine 380v,gi shutter door roll forming machine

cold roll forming machine 380v

gi shutter door roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

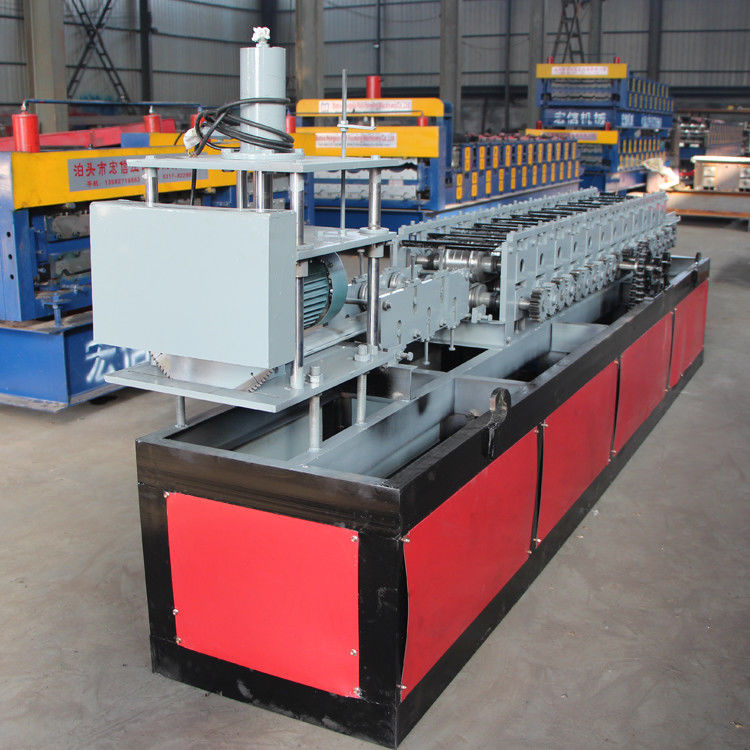

Shutter Slat Door Roll Forming Machine Cold Steel

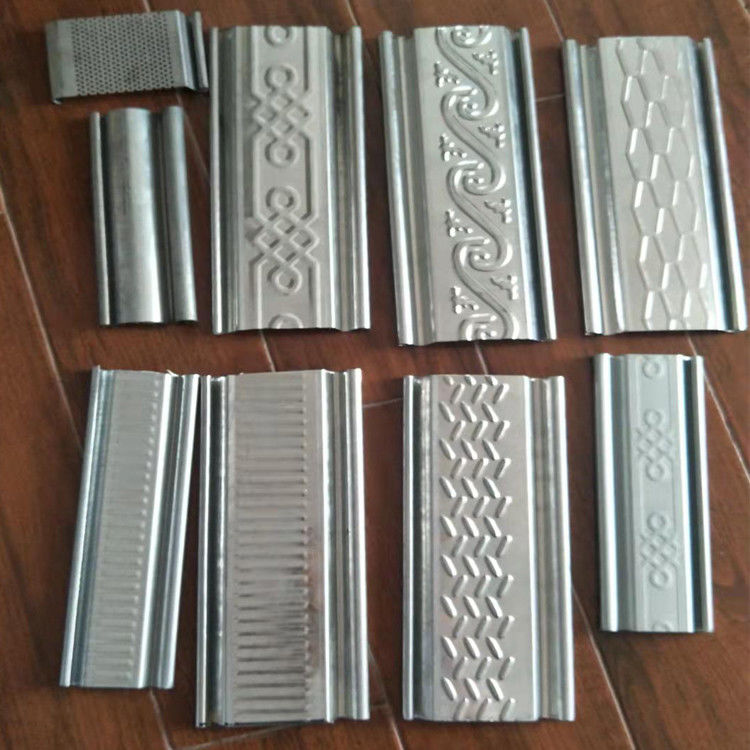

The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.3mm - 0.8 mm
3	Working Speed	10-25 m/min
4	Roller Station	12 Stations
5	Size	7500 mm1500 mm1600 mm
6	Machine Weight	2.5T
7	Electrical Control System	PLC
8	Power Supply	380V, 50HZ, 3 PHASES(can be customized)
9	Cutting Accuracy	± 1 mm
10	Driving Mode	Gear Wheel
11	Material of Shaft	60 mm 45#steel forged
12	Cutter Standard	GCr12

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
