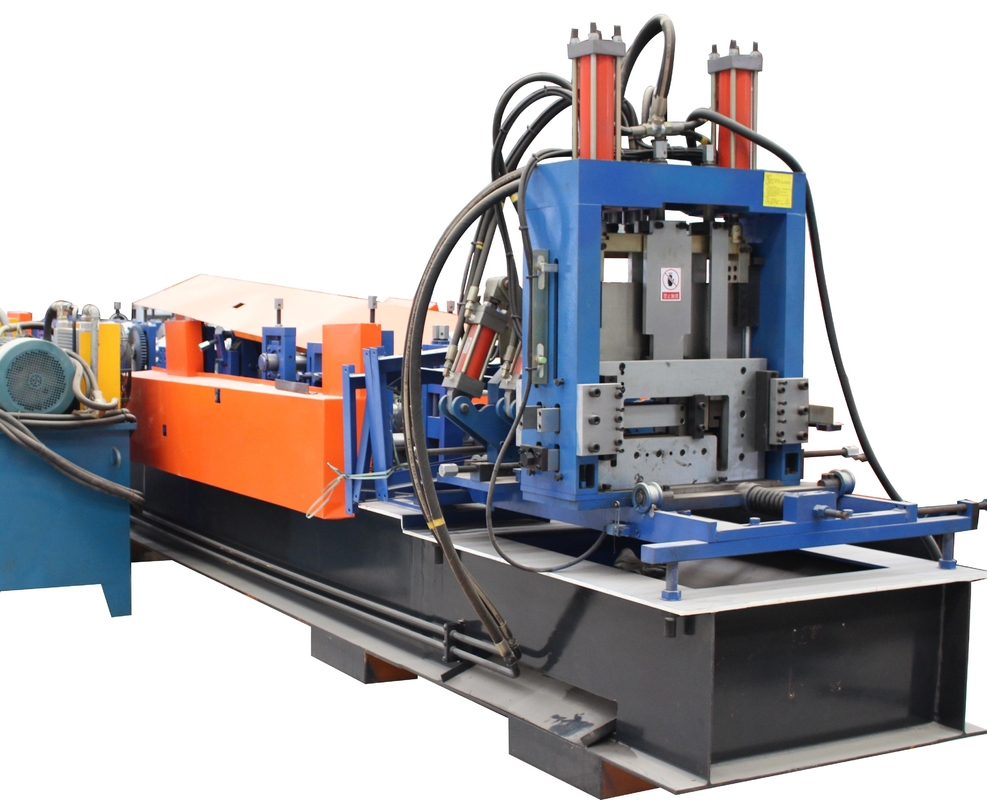

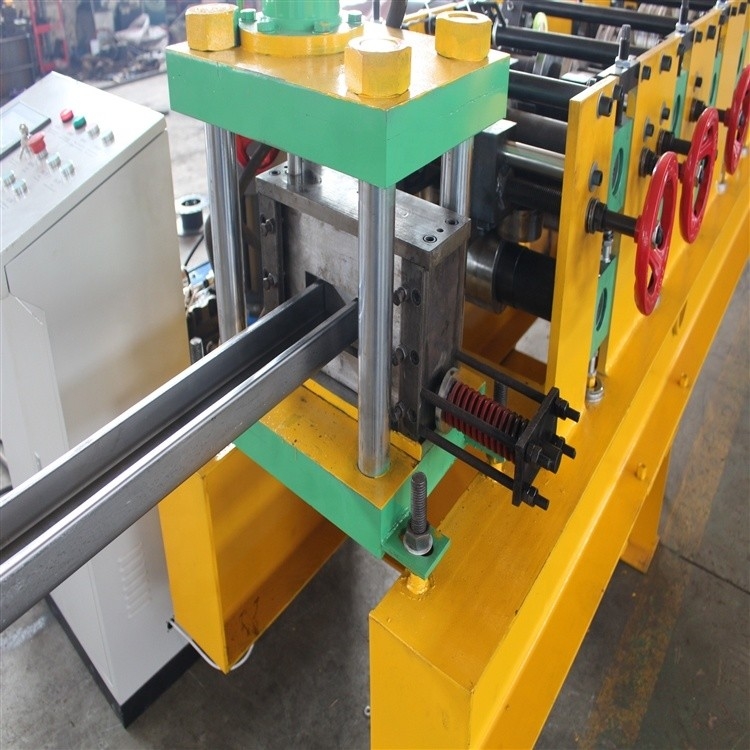

Lip Channel 1.5mm Galvalume Cz Purlin Roll Forming Machine

galvalume cz purlin roll forming machine,1.5mm cz purlin roll forming machine,lip channel purlin roll forming line

1.5mm cz purlin roll forming machine

lip channel purlin roll forming line

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول کانال C Liip برای آفریقای جنوبی

مواد خام:

گالوالوم، گالوانیزه

ابعاد (L*W*H):

9500 میلی متر * 1400 میلی متر * 1350 میلی متر

ضخامت تغذیه:

1.5-3.0mm

وزن:

حدود 5T

ایجاد سرعت:

12-24 متر در دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

برجسته کردن:

galvalume cz purlin roll forming machine,1.5mm cz purlin roll forming machine,lip channel purlin roll forming line

1.5mm cz purlin roll forming machine

lip channel purlin roll forming line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

C Liip Channel Roll Forming Machine For South Africa

CZ channel changeable roll forming machine CAN produce two different type of shape purlin in one machine, C type purlin has good straightness and has good compression and bending resistance. Z type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased. with it high productive speed, it can help client save labor cost and save more space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Feeding Thickness	1.5-3.0mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	9500 mm1400 mm 1350mm
6	Machine Weight	About 5T
7	Electrical Control System	Panasonic PLC
8	Total Power	22 kw
9	Power Supply	380V/50HZ/3PH
10	Cutting Accuracy	±2 mm
11	Driving Mode	Single Chain 2 inch
12	Main Frame	400mm H-Beam

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
