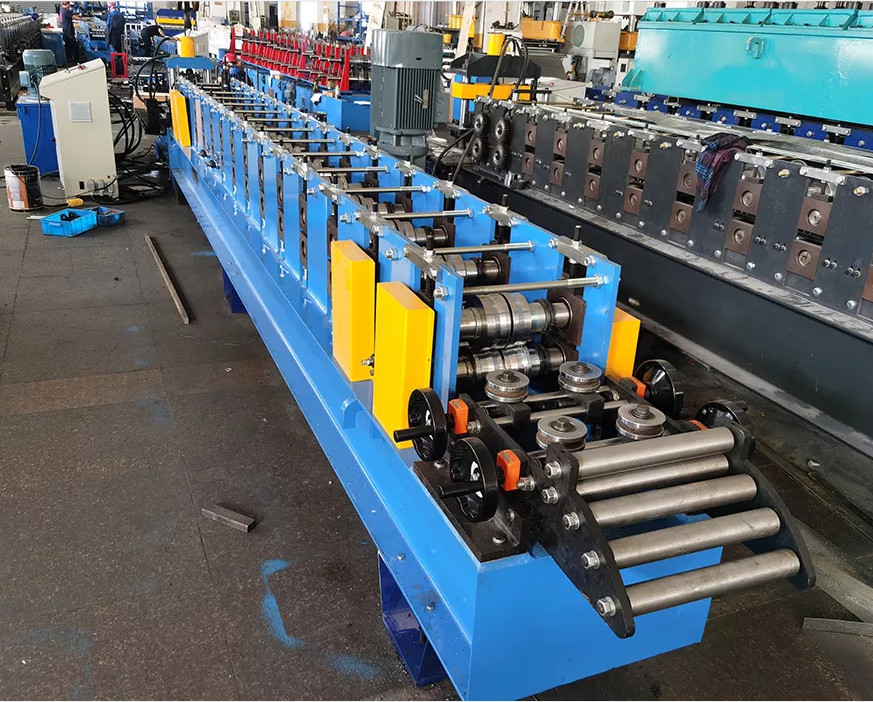

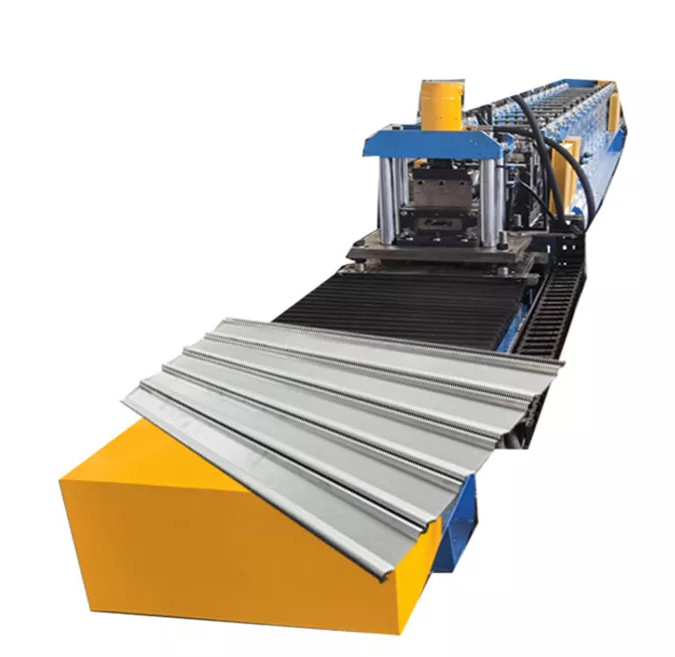

Chain Drive Rolling Shutter Door Roll Forming Machine High Speed Full Auto 25m/Min

chaindrive rolling shutter door roll forming machine,25m/min rolling shutter door roll forming machine,gl shutter door machine

25m/min rolling shutter door roll forming machine

gl shutter door machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

پرسرعت کرکره درب رول فرمینگ ماشین تمام اتوماتیک

ایستگاه های شکل دهی:

با توجه به شما نقشه های نمایه

مواد غلتک:

درمان خاموش کردن GCr15، Cr12، SKD11: HRC58-62 (اختیاری)

راه درایو:

درایو زنجیره ای، درایو جعبه دنده (اختیاری)

ولتاژ:

380 ولت 50Hz 3Phases

سرعت کار کل خط:

0-25 متر در دقیقه

دقت طول:

±0.3mm/10m

PLC:

یاسکاوا، زیمنس، میتسوبیشی، پاناسونیک (برند انتخابی)

برجسته کردن:

chaindrive rolling shutter door roll forming machine,25m/min rolling shutter door roll forming machine,gl shutter door machine

25m/min rolling shutter door roll forming machine

gl shutter door machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

High Speed Roller Shutter Door Roll Forming Machine Full Auto

Rolling door, garage door, European type rolling door, fire door, security door, fire shutter door, inorganic fabric rolling door machinery, fire door frame, security door frame,......Its products are widely used in steel structure industry, building construction, vehicle industry, doors and Windows industry, transportation industry, and various projects.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.8mm - 1.0 mm
3	Working Speed	20-30 m/min
4	Roller Station	12 Stations
5	Inverter	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
6	PLC	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
7	Electrical Control System	Delta PLC (can be customized)
8	Cutting system	pre cutting,hydraulic post cutting,servo Tracking cutting
9	Punching system	hydraulic punching ,punching press machine(option)
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Length precision	±0.3mm/10m
12	Driving Mode	Gear Wheel

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
