Glazed Tile Roof 0.25 Double Layer Roll Forming Machine Gearbox Drive Plc Control

gearbox double layer roll forming machine,0.25 double layer roll forming machine,gearbox drive roof tile roll former

0.25 double layer roll forming machine

gearbox drive roof tile roll former

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

دو لایه لعاب کاشی تشکیل ماشین Plc کنترل

ضخامت:

0.25-0.8 میلی متر

ماده شفت:

جنس فولاد فورج 45# است

مواد غلتک:

درمان خاموش کردن GCr15، Cr12، SKD11: HRC58-62 (اختیاری)

سیستم کنترل:

PLC

سرعت:

8-15 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز 3PH

راه درایو:

درایو زنجیره ای، درایو جعبه دنده (اختیاری)

برجسته کردن:

gearbox double layer roll forming machine,0.25 double layer roll forming machine,gearbox drive roof tile roll former

0.25 double layer roll forming machine

gearbox drive roof tile roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

35 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

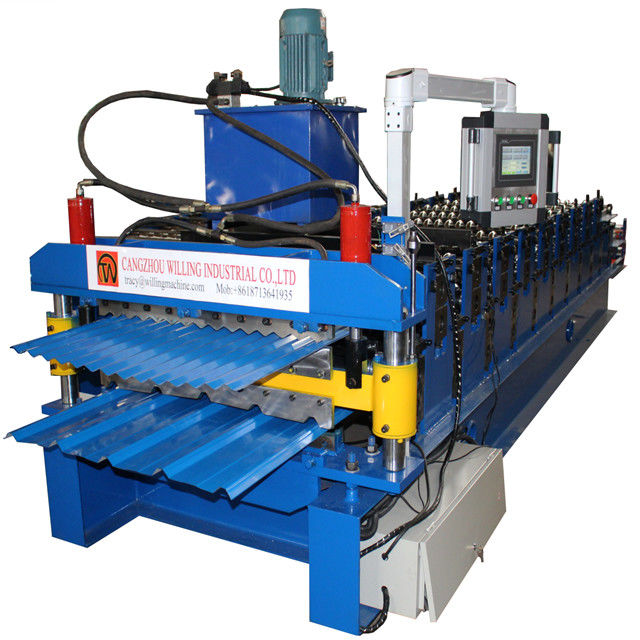

Double Layer Glazed Tile Forming Machine Plc Control

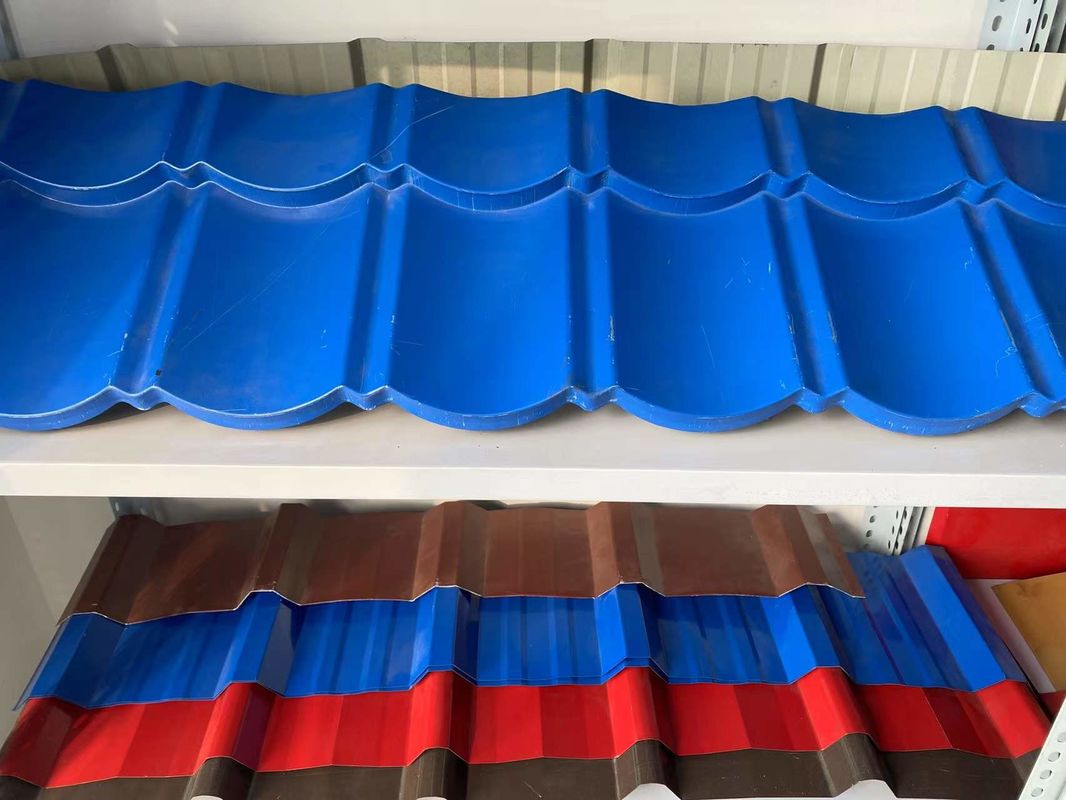

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Way of drive	chain drive,Gearbox drive(optional)
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.25-0.8mm
8	Productivity	8-15m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
12	Middle plate	16mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
