خانه > محصولات > CZ Purlin Roll Forming Machine >

PLC Purlin Interchangeable Cz Roll Forming Machine Full Automatic

purlin interchangeable cz roll forming machine,plc cz roll forming machine,automatic c and z purlin machine

plc cz roll forming machine

automatic c and z purlin machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

ظرفیت تولید:

8-10 متر در دقیقه

نکات کلیدی فروش:

دقت بالا

مواد محور:

45#فولاد

ضخامت:

1.5-3 میلی متر

تیغه:

به نیاز خریدار

سیستم کنترل:

PLC

ضخامت نورد:

0.3-0.8mm

قاب:

فولاد 400 H

برجسته کردن:

purlin interchangeable cz roll forming machine,plc cz roll forming machine,automatic c and z purlin machine

plc cz roll forming machine

automatic c and z purlin machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

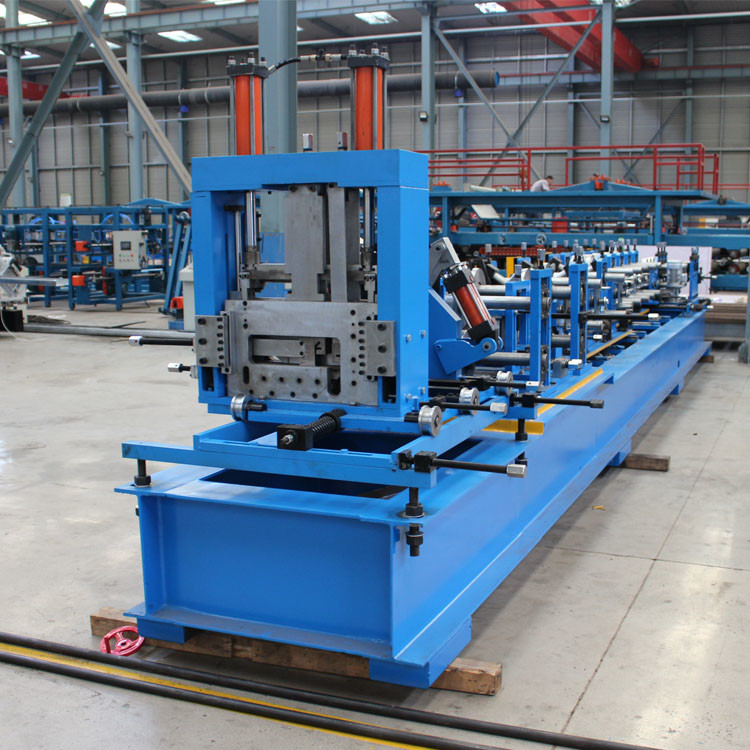

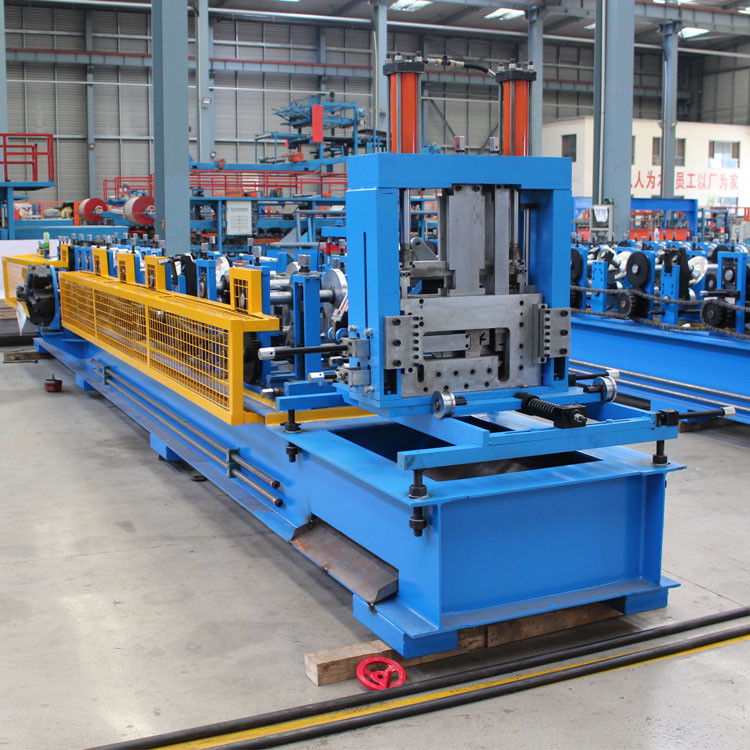

CZ Purlin Interchangeable Roll Forming Machine Full Automatic

Where are our company C/Z purlin interchangeable roll forming machine diffience from other compititor: 1.The finished purlin has high straight level and high crush resistance ability. 2.The finished Z purlin can be lap reversely.The connection point improve strength. 3.Use reduce motor and frequency to control, the speed length and location can be control. 4.Interchangeable progress between C and Z is fast and easy

feature

1.Take continuous production,there is no need to change the rollers in rough-forming section.

2. c z shape purlin forming machine hot sale price finished with good flatness bending pressure performance is good, automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation,

3.the product can be used as medium-sized industrial and civil buildings the main force structure, such as factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and wall flat load bearing support.

specifications

Length of the main part	6800mm800mm1200mm
Weight of main part	7.2 tons
Voltage	380V 50HZ 3Phase
Frame	400 H steel
Drive mode	differential gear
Main axle material	GR15
Material of shafts	45# steel
Diameter of shafts	φ80mm
Number of rollers	12 rollers
Main power	11kw(cycloidal planetary gear speed reducer)
Forming speed	8m-10m/min
Adjustment method	Half seams type Looper
