Metal Sheet PPGI 380V60Hz Glazed Tile Roll Forming Machine Automatic

ppgi glazed tile roll forming machine,380v60hz glazed tile roll forming machine,ppgi glazed tile forming machine

380v60hz glazed tile roll forming machine

ppgi glazed tile forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ورق فلزی لعاب کاشی رول دستگاه شکل دهی اتوماتیک

نکات کلیدی فروش:

طول عمر طولانی

مواد خام:

ورق PPGI/گالوانیزه

ولتاژ:

380V60Hz یا با توجه به نیاز مشتری

اجزای اصلی:

موتور ، PLC

ضخامت مواد:

0.3-0.8mm

ظرفیت تولید:

8-12 متر در دقیقه

سیستم کنترل:

جعبه کنترل PLC

برجسته کردن:

ppgi glazed tile roll forming machine,380v60hz glazed tile roll forming machine,ppgi glazed tile forming machine

380v60hz glazed tile roll forming machine

ppgi glazed tile forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

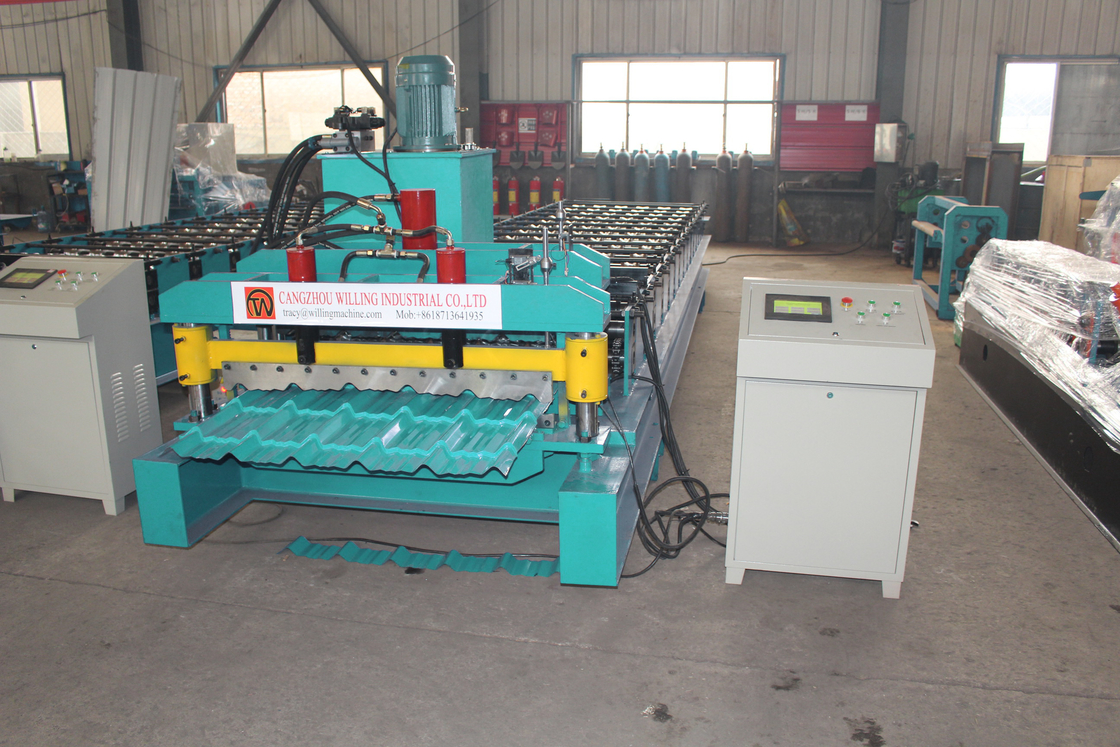

Metal Sheet Glazed Tile Roll Forming Machine Automatic

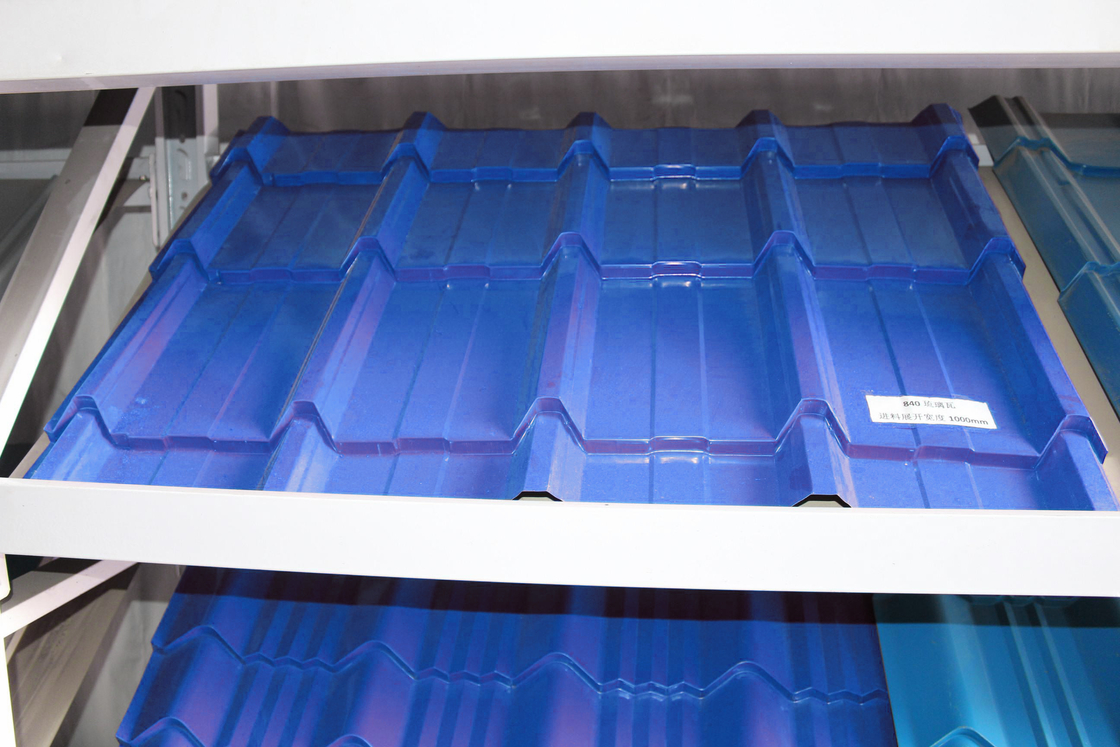

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

Specification

No.	Item	Description
1	Type	Steel / Galvanized Panel
2	Feeding width	According to client's requirement
3	Thickness	0.3-0.7 mm
4	Roller station	13 Steps (According to the profile)
5	Diameter of shaft	75mm
6	Shaft material	45# Steel
7	Roller material	45# Steel
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	4 KW
10	Voltage	380V 50Hz 3phases or Customerization
11	Cutting Accuracy	±2 mm
12	Weight	About 3.5 Tons
13	Cutting type	Hydraulic cutting
14	Material of blade	Cr12, HRC60-62°C

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
