1mm Tophat Omega Roll Forming Machine Profile Stud Making

tophat omega roll forming machine,1mm omega roll forming machine,tophat profile roll forming machine

1mm omega roll forming machine

tophat profile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ تاپات ساخت گل میخ پروفیل امگا

اجزای اصلی:

PLC، موتور، موتور، دنده، پمپ

ظرفیت تولید:

8-25 متر در دقیقه

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

3 تن

گارانتی:

1 سال

قدرت:

8.5 کیلو وات

سیستم کنترل:

PLC

برجسته کردن:

tophat omega roll forming machine,1mm omega roll forming machine,tophat profile roll forming machine

1mm omega roll forming machine

tophat profile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Tophat Roll Forming Machine Omega Profile Stud Making

Omega hat-shaped steel purlin forming machine is mainly composed of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, computer control cabinet and other parts.
The finished product of hat-shaped purlin has good bending and compression resistance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, and quick and convenient installation.

Specification

No.	Item	Description
1	Material Thickness	1 mm- 3 mm
2	Working Speed	8-25m/min ( not including the cutting time)
3	Pump motor	4KW; Cutting
4	Cutting tool material	Cr12, Heat treatment
5	Electrical Control System	PLC
6	Main Motor	5.5KW
7	Liner speed of roll former	approx. 15~18m/min
8	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
9	Cutting Accuracy	±2 mm

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

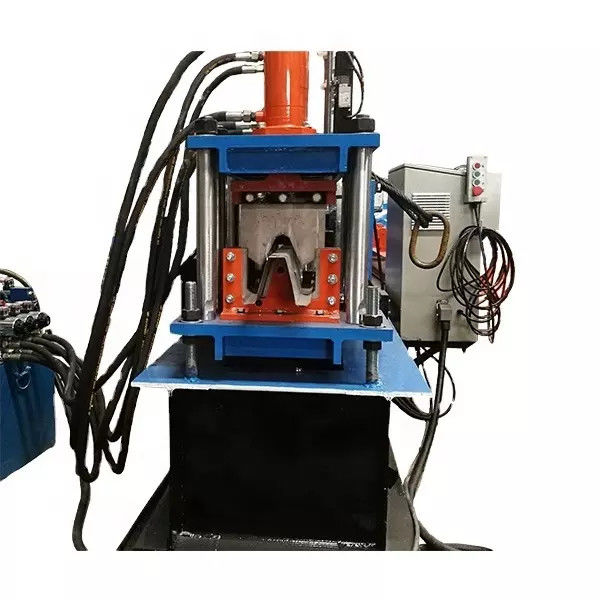

1mm Tophat Omega Roll Forming Machine Profile Stud Making 0

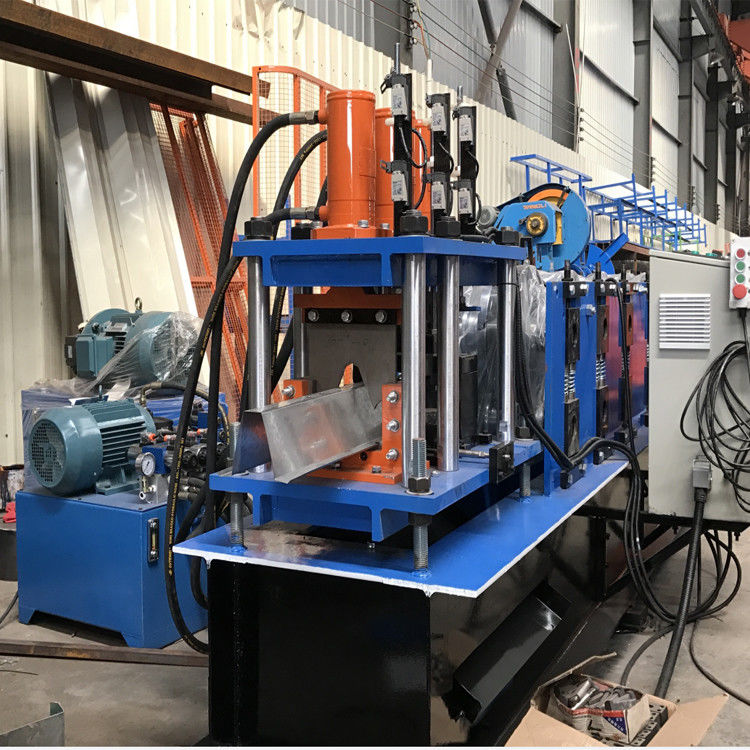

1mm Tophat Omega Roll Forming Machine Profile Stud Making 1
