Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic

door frame roll forming machine automatic,ppgl door frame roll forming machine,hydraulic cutting door frame forming machine

ppgl door frame roll forming machine

hydraulic cutting door frame forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

قاب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ قاب درب هیدرولیک اتوماتیک

مواد خام:

PPGI، GI، PPGL GL

سرعت کار:

10 متر در دقیقه - 15 متر در دقیقه سرعت بالا

ضخامت مواد:

0.3 میلی متر - 0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

وضعیت:

جدید

قدرت موتور درایو:

5 کیلو وات

نیروگاه ایستگاه هیدرولیک:

5 کیلو وات

برجسته کردن:

door frame roll forming machine automatic,ppgl door frame roll forming machine,hydraulic cutting door frame forming machine

ppgl door frame roll forming machine

hydraulic cutting door frame forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

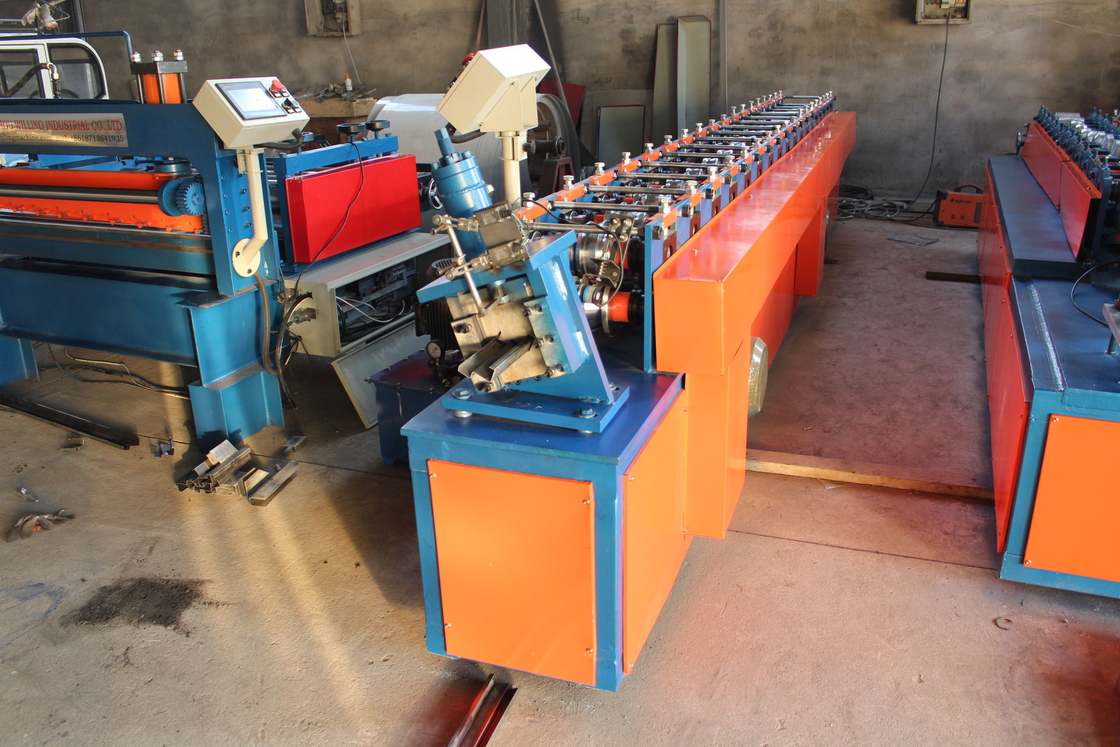

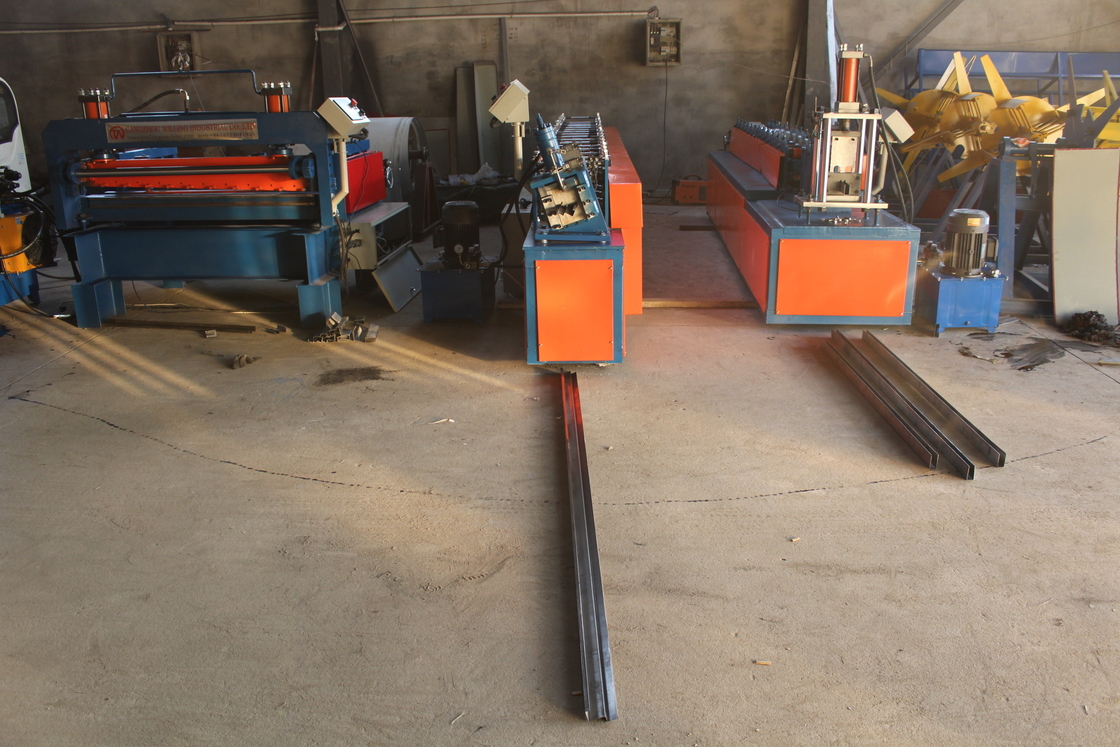

Hydraulic Cutting Door Frame Roll Forming Machine Automatic

The steel door frame forming machine is controlled by the PLC control system to realize fully automatic operation.The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. The surface is treated with special electrophoresis, which has unlimited luster, is not easy to stick to dust, is not corroded by polluted gases, and is never rusted.

The machine version can be customized according to customer requirements. Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.3 mm - 0.9 mm
3	Working Speed	10-15 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic 0
