Name: Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: پایین درب
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

gl automatic rolling shutter machine,ppgi shutter door roll forming machine,hydraulic shears shutter door rolling machine

ppgi shutter door roll forming machine

hydraulic shears shutter door rolling machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

پایین درب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

قیچی هیدرولیک دستگاه رول فرمینگ پایینی درب کرکره ای با دقت بالا

مواد خام:

PPGI، GI، PPGL GL

سرعت کار:

10-15 متر در دقیقه

ضخامت مواد:

0.3mm - 0.8mm

ولتاژ:

380 ولت 50Hz 3Phases

دقت برش:

± 1 میلی متر

قدرت موتور درایو:

5 کیلو وات

نیروگاه ایستگاه هیدرولیک:

5 کیلو وات

برجسته کردن:

gl automatic rolling shutter machine,ppgi shutter door roll forming machine,hydraulic shears shutter door rolling machine

ppgi shutter door roll forming machine

hydraulic shears shutter door rolling machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

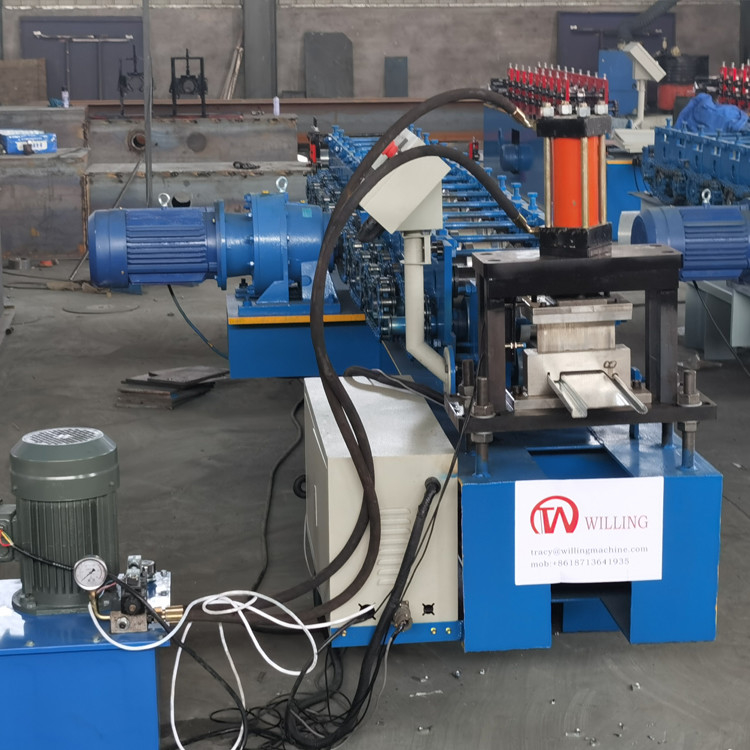

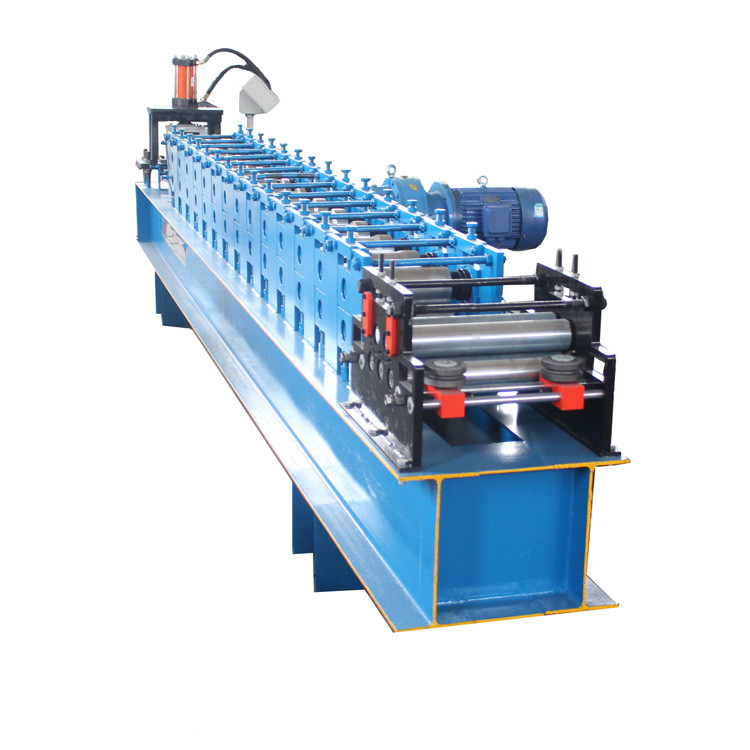

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears

The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine,cigarettes, printing, textiles, supermarkets and other light industrial plants.

Specification

1	Suitable to process	Color steel plate
2	Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
3	Thickness of the plate	0.3-0.8mm
4	Diameter of the roller	80mm
5	Rolling material	Carbon Steel 45#
6	Main motor power	5.5kw
7	Material of the cutting blade	Cr12 mov
8	Hydraulic cutting power	4kw
9	Processing precision	Within 1.00mm
10	Control system	Delta PLC control
11	Side panel of machine	16mm
12	Main structure of the machine	350 H steel
13	Voltage	380V 50Hz 3phases(changeable as needs)
14	Certificate	CE/ISO

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
