Hydraulic Cutting Chaindrive Steel Door Production Line

hydraulic cutting steel door production line,chain drive steel door production line,chaindrive steel door roll forming machine

chain drive steel door production line

chaindrive steel door roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

قاب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

قاب درب فولادی برش هیدرولیک Mahine برای خط تولید درب فولادی

مواد خام:

با توجه به شما نقشه های نمایه

اختیاری 1:

ساخت پانل

اختیاری 2:

ساختار چدن

ولتاژ:

380 ولت 50Hz 3Phases

وضعیت:

جدید

مواد غلتک:

درمان خاموش کردن GCr15، Cr12، SKD11: HRC58-62 (اختیاری)

راه درایو:

درایو زنجیره ای، درایو جعبه دنده (اختیاری)

برجسته کردن:

hydraulic cutting steel door production line,chain drive steel door production line,chaindrive steel door roll forming machine

chain drive steel door production line

chaindrive steel door roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

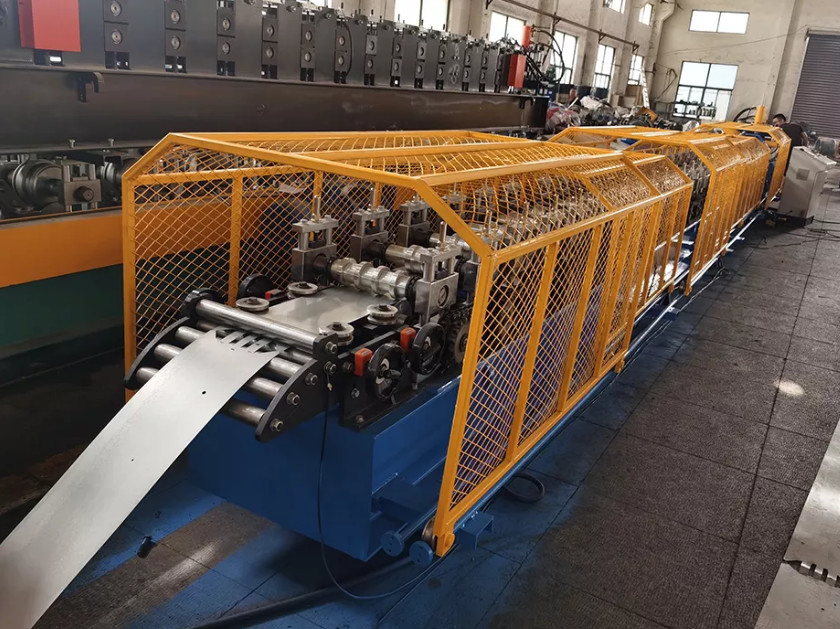

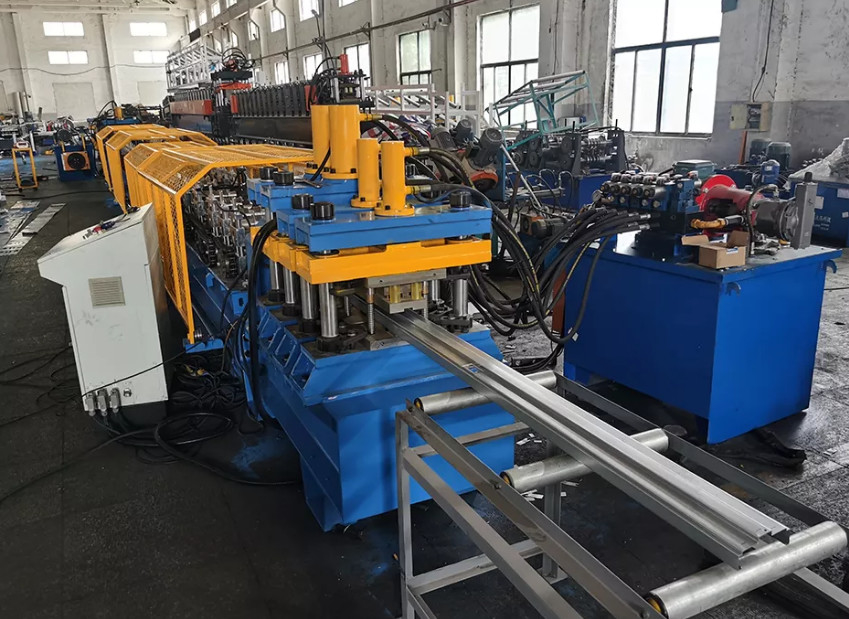

Hydraulic Cutting Steel Door Frame Mahine For Steel Door Production Line

The steel door frame forming machine is controlled by the PLC control system to realize fully automatic operation.The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. it is convince for installation,low-noise,reliable quality,and easy handlind.
The machine version can be customized according to customer requirements. Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Specification

Forming stations:	according to you profile drawings
Machine structure:	Optional 1: wall panel structure Optional 2: cast iron strcture
Rollers material :	GCr15,Cr12,SKD11 quenching treatment:HRC58-62(optional)
Way of drive :	chain drive,Gearbox drive(optional)
Raw material request:	cold rolled or hot rolled steel,galvanized steel,SS316L/Mild Steel
Whole line working speed:	0-25m/min
Length precision:	±0.3mm/10m
Punching system:	hydraulic punching ,punching press machine(option)
Cutting system:	pre cutting,hydraulic post cutting,servo Tracking cutting
Inverter :	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
PLC :	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)

Application

The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Hydraulic Cutting Chaindrive Steel Door Production Line 0
