Name: Galvanised Steel Sheets Roof Roll Forming Machine Automated Production Lines
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کاشی Met / کاشی لعابدار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Galvanised Steel Sheets Roof Roll Forming Machine Automated Production Lines

galvanised roof roll forming machine,0.25mm roof roll forming machine,galvanised metal roofing roll former

0.25mm roof roll forming machine

galvanised metal roofing roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

کاشی Met / کاشی لعابدار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خطوط تولید خودکار ماشین آلات رول فرمینگ ورق های سقف فولادی گالوانیزه

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت 50 هرتز 3 فاز یا دیگر

ظرفیت تولید:

6-8 متر در دقیقه

گارانتی:

1 سال

ضخامت مواد:

0.25-0.8 میلی متر

هیدرولیک برق:

4 کیلو وات

دقت برش:

± 2 میلی متر

برجسته کردن:

galvanised roof roll forming machine,0.25mm roof roll forming machine,galvanised metal roofing roll former

0.25mm roof roll forming machine

galvanised metal roofing roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

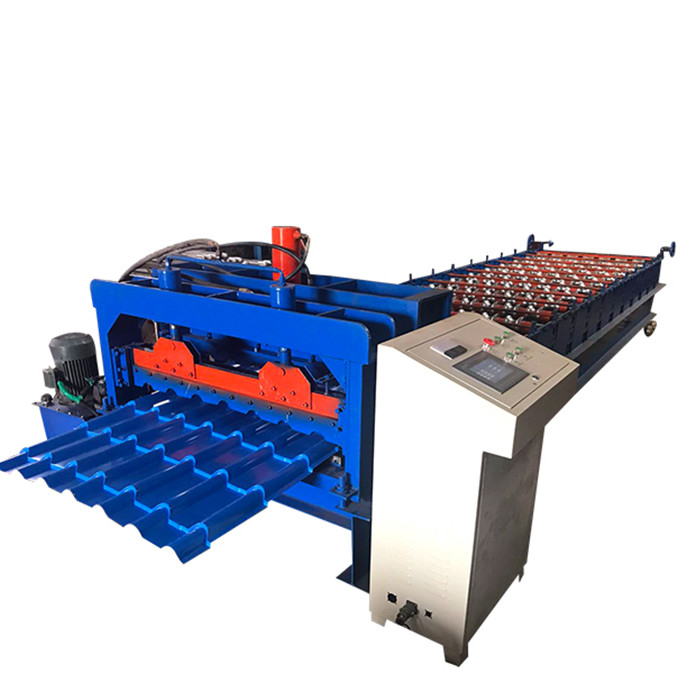

Galvanised Steel Roofing Sheets Roll Forming Machine Automated Production Lines

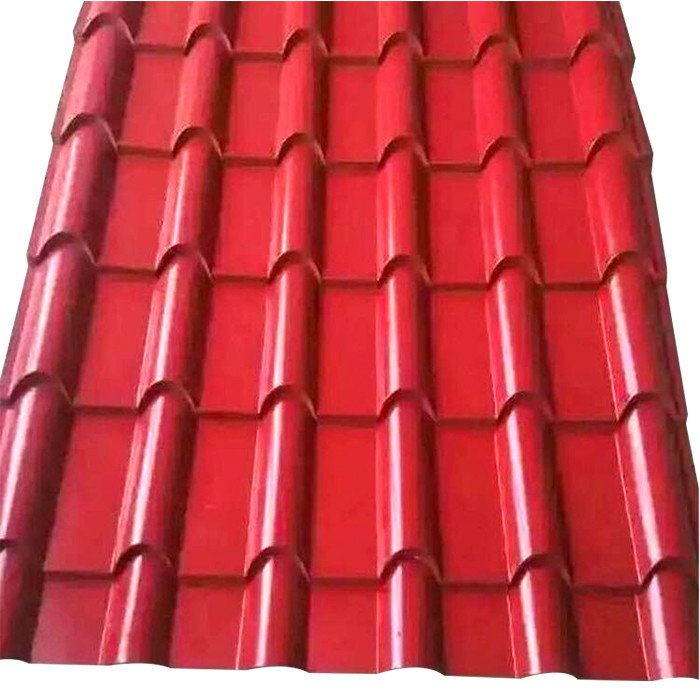

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

Specification

1	material of input sheet	galvanized steel/ colored steel
2	feeding width	1200mm
3	effective width	960mm
4	material thickness	0.3-0.8mm
5	main motor power	4kw
6	hydraulic pump power	4kw
7	forming step	13steps
8	diameter of shaft	75mm
9	main frame	300H steel
10	roller material	45# steel with chrome
11	cutting knives material	Cr12
12	control system	PLC control system with inverter (Delta brand)
13	working speed	6-8m/min
14	machine size	6.01.51.3m
15	machine weight	about 3.5 tons
16	voltage	380v 3phase 50hz

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
