Name: Customized Shape Profile Ppgi Roof Panel Roll Former Metal
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کاشی Met / کاشی لعابدار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Customized Shape Profile Ppgi Roof Panel Roll Former Metal

customized shape roof roll forming machine,customized profile roof panel roll former,ppgi roof panel roll former

customized profile roof panel roll former

ppgi roof panel roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

کاشی Met / کاشی لعابدار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه ساخت سقف رول رول فلزی پانل پروفایل شکل سفارشی

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت 50 هرتز 3 فاز یا دیگر

ظرفیت تولید:

8-12 متر در دقیقه

گارانتی:

1 سال

سیستم کنترل:

کاملاً اتوماتیک

هیدرولیک برق:

4 کیلو وات

دقت برش:

± 2 میلی متر

برش مواد تیغه:

Cr12Mov با درمان خاموش

ماده شفت:

فولاد فورج 45

برجسته کردن:

customized shape roof roll forming machine,customized profile roof panel roll former,ppgi roof panel roll former

customized profile roof panel roll former

ppgi roof panel roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

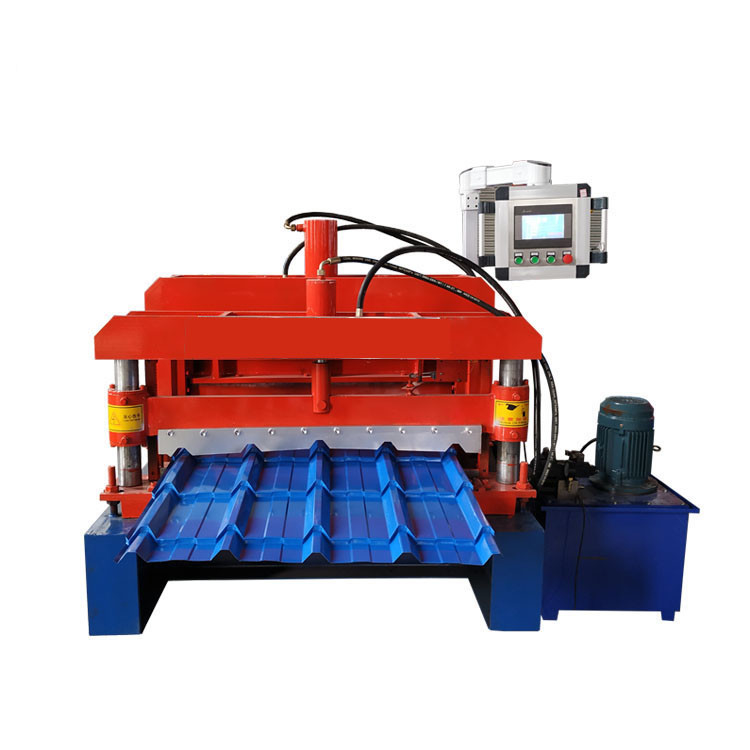

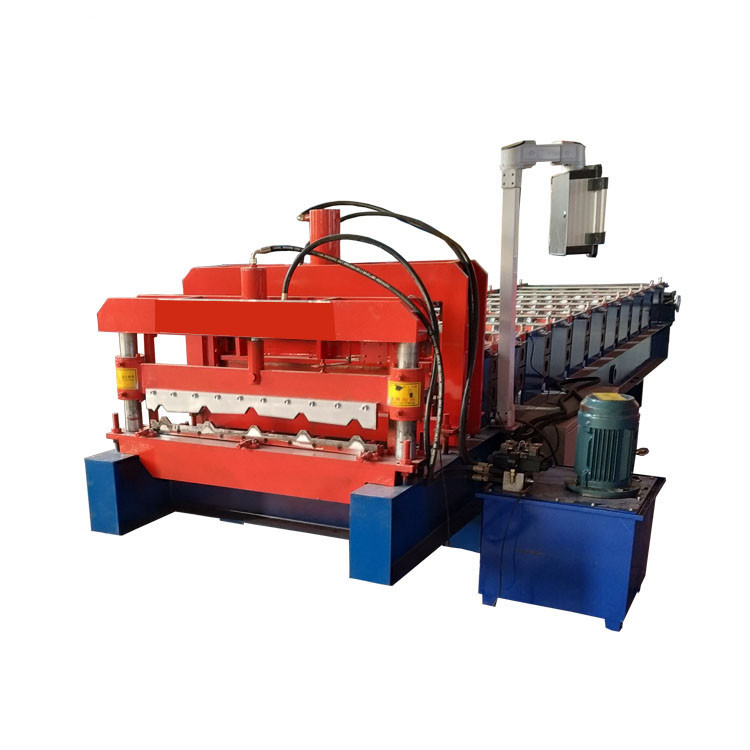

Customized Shape Profile Panel Metal Roll Forming Roof Sheet Making Machine

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.

The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

Specification

Article No.	Item Name	Specification
1	Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2	Processing thickness (mm)	0.3-0.8 mm
3	Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4	Material of shafts	45# steel
5	Diameter of shafts	70mm or as your customized
6	Forming speed	3-4 m/min
7	Under frame	350 H-beam
8	Sidewall	16mm
9	Connect bar	25mm, zinc plated
10	Forming steps	11 stations
11	Control system	Delta PLC and Inverter
12	Suitable power	380V, 50 Hz, 3 phase or according to your need
13	Drive mode	Chain and sprocket, chain size 1 inch
14	Main motor	3.5 kw
15	Hydraulic pump station	4 kw
16	Cutting model	Hydraulic profile cutting
17	Dimension of the machine	6.5m×1.5mm×1.5m
18	Weight of the machine	3.5 tons

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
