Name: High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کلاهک ریج
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine

galvalume ridge cap roll forming machine,0.3mm ridge cap roll forming machine,high speed ridge cap machine

0.3mm ridge cap roll forming machine

high speed ridge cap machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

کلاهک ریج

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین شکل دهی رول رول بالا ریج رول با سرعت بالا آفریقای جنوبی

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.3-0.8mm

نوع کاشی:

کلاهک ریج

ظرفیت تولید:

20 تا 25 متر/دقیقه

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

ولتاژ:

380 × 50 هرتز 3 فاز

اجزای اصلی:

موتور، پمپ، PLC

برجسته کردن:

galvalume ridge cap roll forming machine,0.3mm ridge cap roll forming machine,high speed ridge cap machine

0.3mm ridge cap roll forming machine

high speed ridge cap machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

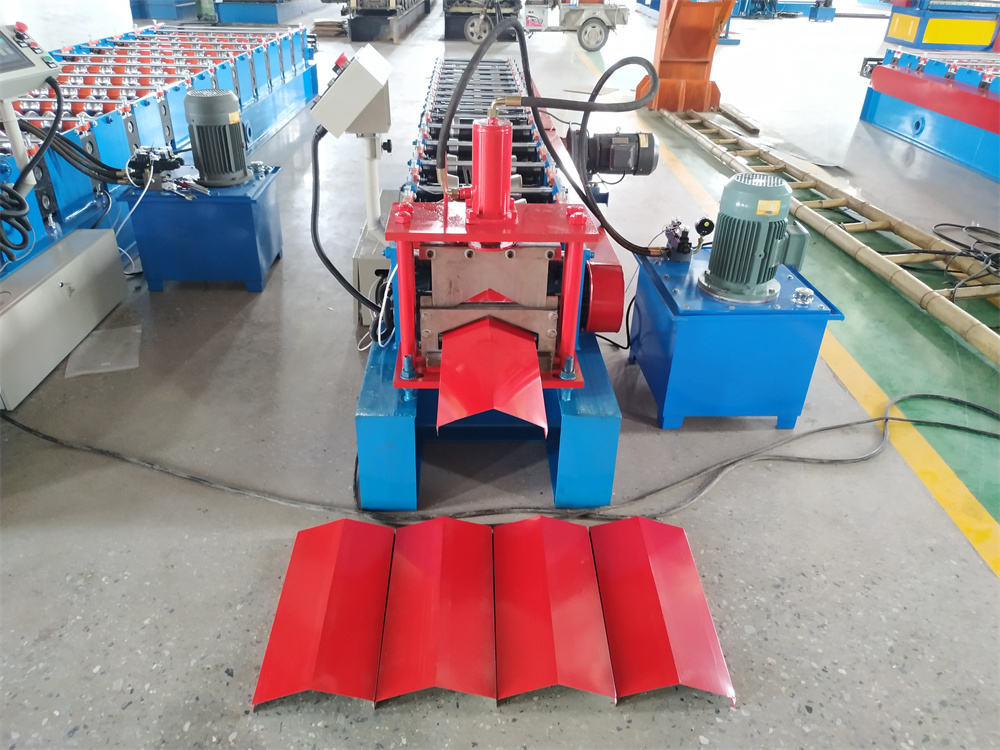

High Speed Roll Top Ridge Cap Roll Forming Machine South Africa

Is designed to produce ridge cap tile used on roof, this machine is very easy to install, low noise and high efficiency.

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. This machine can be customized according to customer requirements.The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.

Specification

Article No.	Item Name	Specification
1	Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2	Processing thickness (mm)	0.3-0.8mm
3	Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4	Material of shafts	45# steel
5	Diameter of shafts	70mm or as your customized
6	Forming speed	20-25 m/min
7	Under frame	300 H-beam
8	Sidewall	16mm
9	Connect bar	25mm, zinc plated
10	Forming steps	11rollers
11	Control system	Delta PLC and Inverter
12	Suitable power	380V, 50 Hz, 3 phase or according to your need
13	Drive mode	Chain and sprocket, chain size 1 inch
14	Main motor	4w
15	Hydraulic pump station	4w
16	Cutting model	Hydraulic profile cutting
17	Dimension of the machine	6m×0.6mm×1.0m
18	Weight of the machine	2.5tons

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
