Profile 1.2MM Deck Floor Roll Forming Machine With Pressing Dot

1.2mm deck floor roll forming machine,profile deck floor roll forming machine,pressing dot floor deck forming machine

profile deck floor roll forming machine

pressing dot floor deck forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول پروفیل B Deck محبوب در بازار ایالات متحده با نقطه فشار

اندازه:

380V/50HZ/3PHASE، 220V/380V/415V/440V/سفارشی

ضخامت نورد:

0.8-1.2 میلی متر

نوع برش:

برش هیدرولیکی

سیستم کنترل:

PLC

شفت ها:

فولاد جامد 82 میلی متر

ظرفیت تولید:

18 متر در دقیقه

نکات کلیدی فروش:

طول عمر طولانی

برجسته کردن:

1.2mm deck floor roll forming machine,profile deck floor roll forming machine,pressing dot floor deck forming machine

profile deck floor roll forming machine

pressing dot floor deck forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

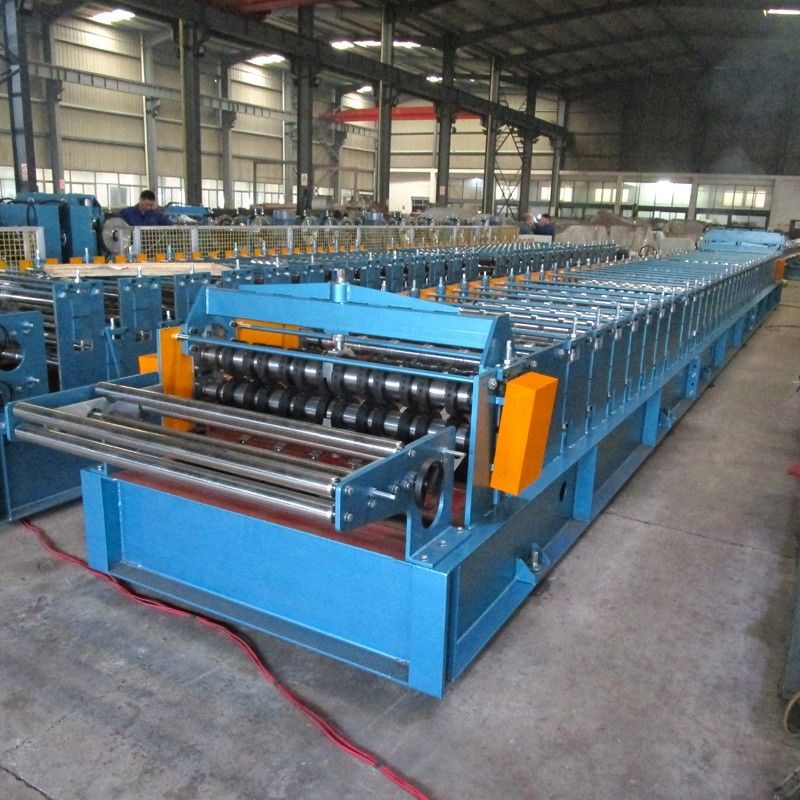

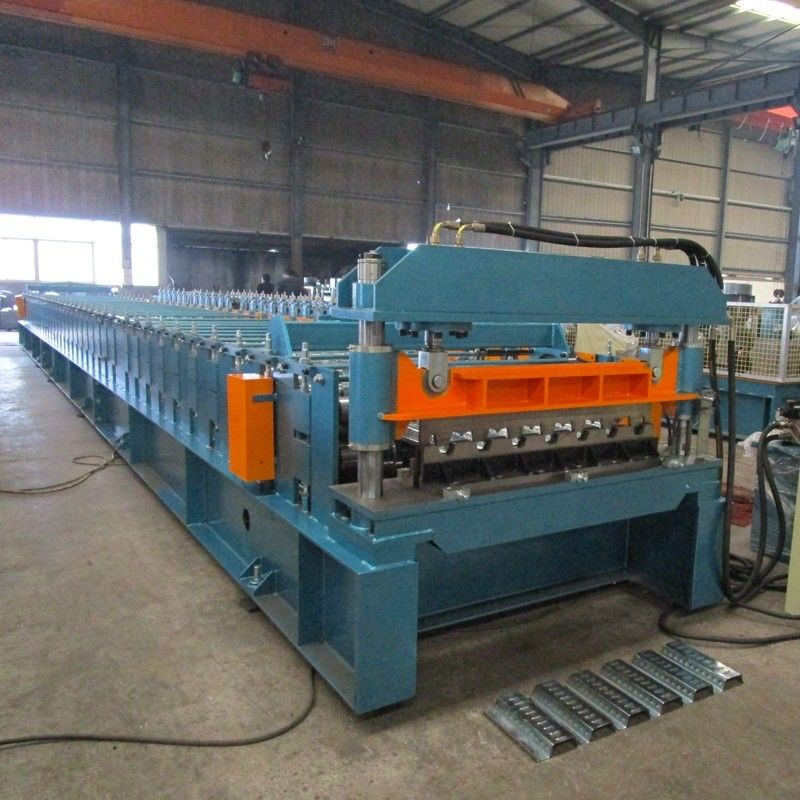

USA Market Popular B Deck Profile Roll Forming Machine With Pressing Dot

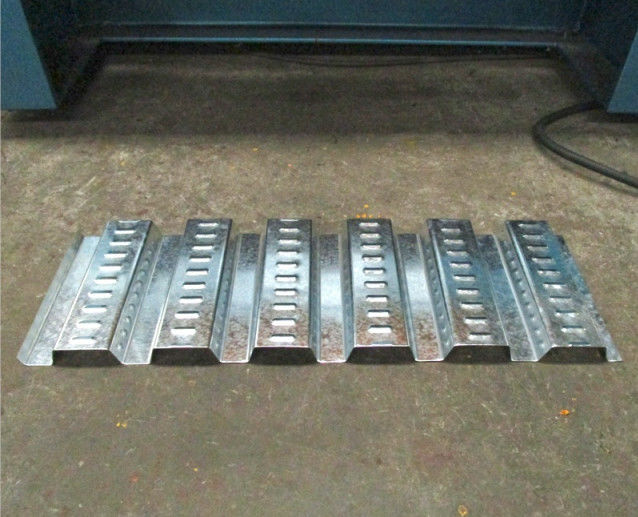

The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.

Specification

Item		Specification
Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.8-1.2
	Yield strength(mpa)	235-345
Roller material		45#Chrome steel plate with hard chrome
Forming speed(m/min)		12
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		11x2KW
Total power(kw)		27.5KW

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
