Prepainted Galvanized Steel Floor Deck Roll Forming Machine

prepainted floor deck roll forming machine,galvanized floor deck roll forming machine,prepainted deck floor roll forming machine

galvanized floor deck roll forming machine

prepainted deck floor roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

تولید کننده خطوط رول شکل دهی کف فولادی گالوانیزه

اندازه:

380 ولت / 50 هرتز، 3 فاز یا به درخواست شما

وزن:

8000 کیلوگرم

نوع برش:

برش هیدرولیکی

سیستم کنترل:

موتور، پمپ، موتور، PLC

نکات کلیدی فروش:

طول عمر طولانی

عرض تغذیه:

1200 میلی متر

مواد غلتک:

فولاد #45 با روکش کروم سخت

روش برش:

برش هیدرولیکی

ضخامت نورد:

0.8-1.5 میلی متر

برجسته کردن:

prepainted floor deck roll forming machine,galvanized floor deck roll forming machine,prepainted deck floor roll forming machine

galvanized floor deck roll forming machine

prepainted deck floor roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

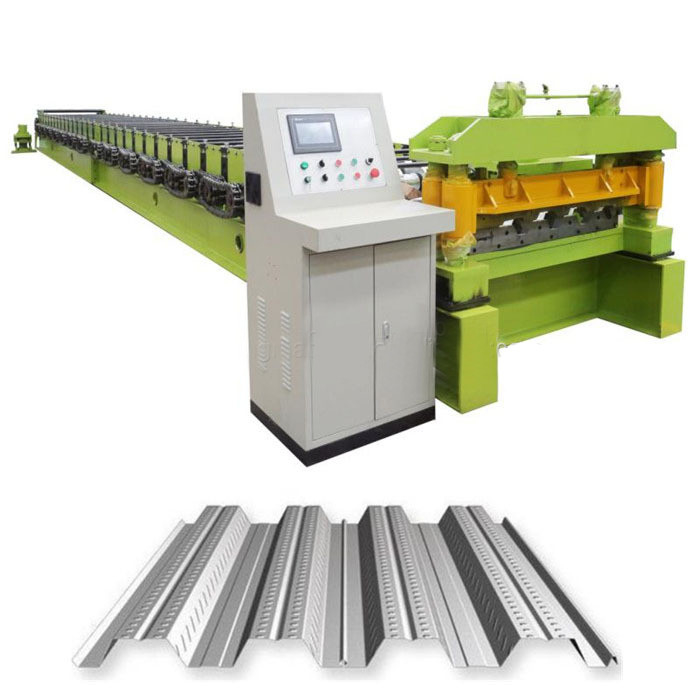

Galvanized Steel Floor Decking Roll Forming Lines Manufacturer

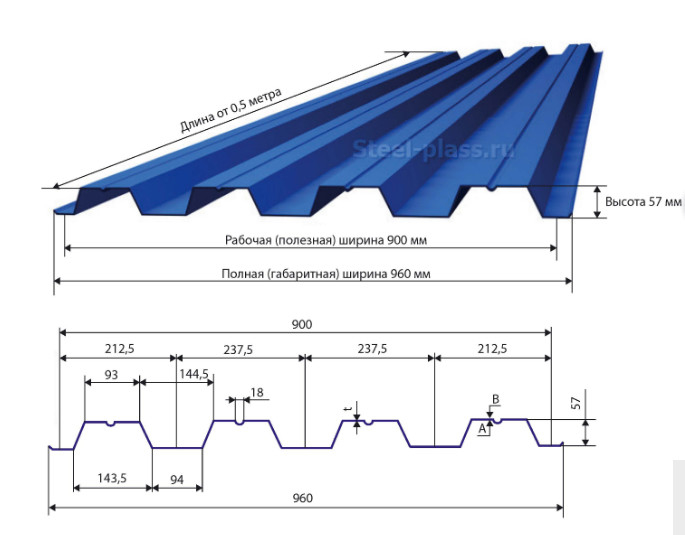

The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.

Specification

Suitable Material
Material Width		1000/1250mm
Effective Width		600/850/915 mm
Material Thickness		0.8-1.5mm
Material Type		Galvanized Steel Strip,Prepainted Galvanised Steel
Yeild Strength		245Mpa
Main Machine
Size shaft diameter		95mm
Wall Panel Thickness		18mm
Base Specification		H446*199
Main Motor		37KW hydraulic system
Forming Speed		0-10m /min
Forming Station		33 Stations
Blade Material		Cr12(Die Steel)
Roller Material		45# steel,CNC lathes, Heat Treated,hard Chrome Coated
Mode of Speed Regulation		AC Inverter Speed Regulation
Driving Mode		Reduction Motor + Chain Transmission
Cutting Mode		Hydraulic Type,Post-cutting
Cutting Motor		Hydra station/hydraulic motor
Measuring Mode		Photoelectric Encoder
Control Mode		PLC
Operation Mode		Button+Touch Screen
Voltage		380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension		15 M1.5M1.3M
Machine Weight		16500KG(15500KG)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Prepainted Galvanized Steel Floor Deck Roll Forming Machine 0
