Painted Steel Tr5 0.8mm Roof Tile Roll Forming Machine

0.8mm roof tile roll forming machine,tr5 roof tile roll forming machine,painted steel roof roll forming machine

tr5 roof tile roll forming machine

painted steel roof roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول کاشی سقفی فولادی Tr5 برای کامرون

اجزای اصلی:

موتور، پمپ، PLC

ولتاژ:

380 ولت 50 هرتز 3 فاز یا سفارشی سازی

نوع برش:

برش هیدرولیکی

قطر شافت:

75 میلی متر

سیستم کنترل:

کاملاً اتوماتیک

ضخامت نورد:

0.3-0.8mm

نکات کلیدی فروش:

خودکار

ظرفیت تولید:

8-12 متر در دقیقه

برجسته کردن:

0.8mm roof tile roll forming machine,tr5 roof tile roll forming machine,painted steel roof roll forming machine

tr5 roof tile roll forming machine

painted steel roof roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

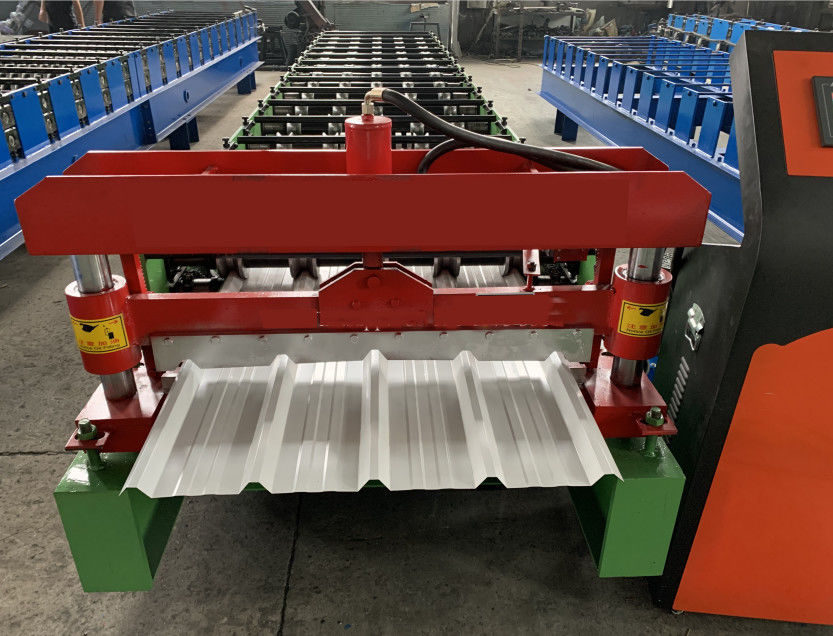

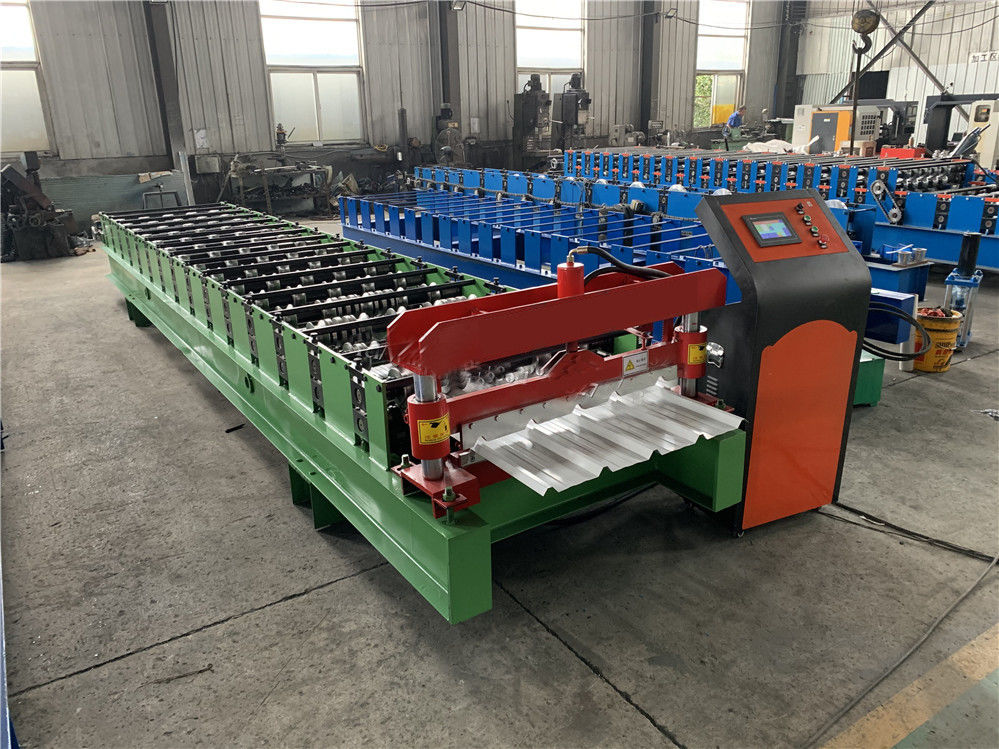

Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon

The trapezoidal metal roofing making machine used fully automatic control system,It has the characteristics of high output and high quality.
The Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon is a affordable metal roofing machine . This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.

Specification

Feeding width	1000 mm (According to the profile)
Thickness	0.3-0.8mm
Roller Stage	16 rows
Roller Material	45# forging steel with chromium plate
Roller station	15 steps (According to the profile)
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H beams
Side Panel of Machine	16mm
Chain	1.2 inch
Motor power	4 kw
Hydraulic pump power	4 kw
Voltage	380V 50Hz 3phases or Customerization

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
