Crimping Curved Arch Plc Roof Sheet Roll Forming Machine Automatic

crimping roof sheet roll forming machine,plc roof sheet roll forming machine,plc controlled sheet roll forming machine

plc roof sheet roll forming machine

plc controlled sheet roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

چین دار قوس منحنی سقف ورق رول فرمینگ ماشین اتوماتیک

ظرفیت تولید:

10-15 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

سیستم کنترل:

PLC

نکات کلیدی فروش:

صرفه جویی در مصرف انرژی

عرض تغذیه:

1200 میلی متر

ماده شفت:

45# قطر بیرونی فولاد: 75 میلی متر

مواد خام:

ورق فولادی

برجسته کردن:

crimping roof sheet roll forming machine,plc roof sheet roll forming machine,plc controlled sheet roll forming machine

plc roof sheet roll forming machine

plc controlled sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T، Western Union، L/C،

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

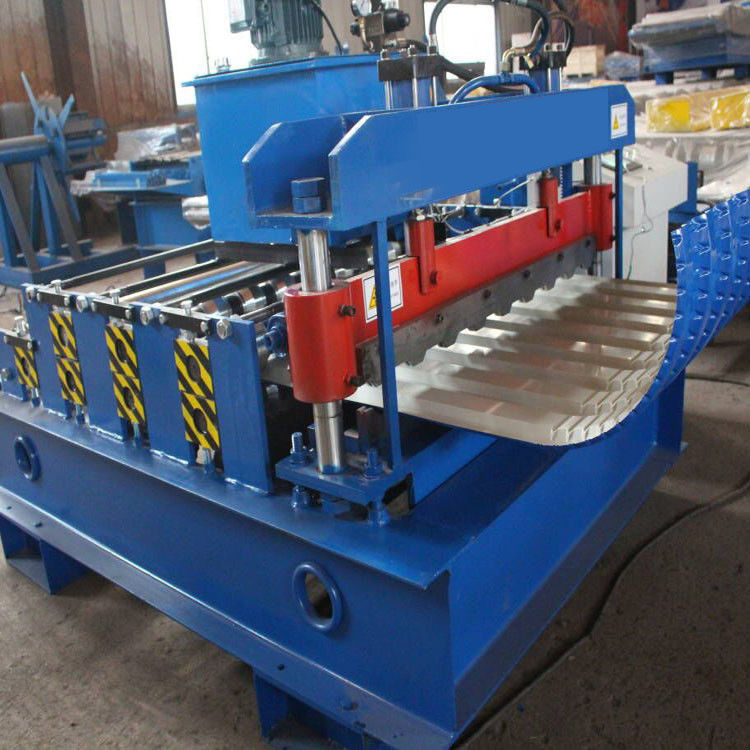

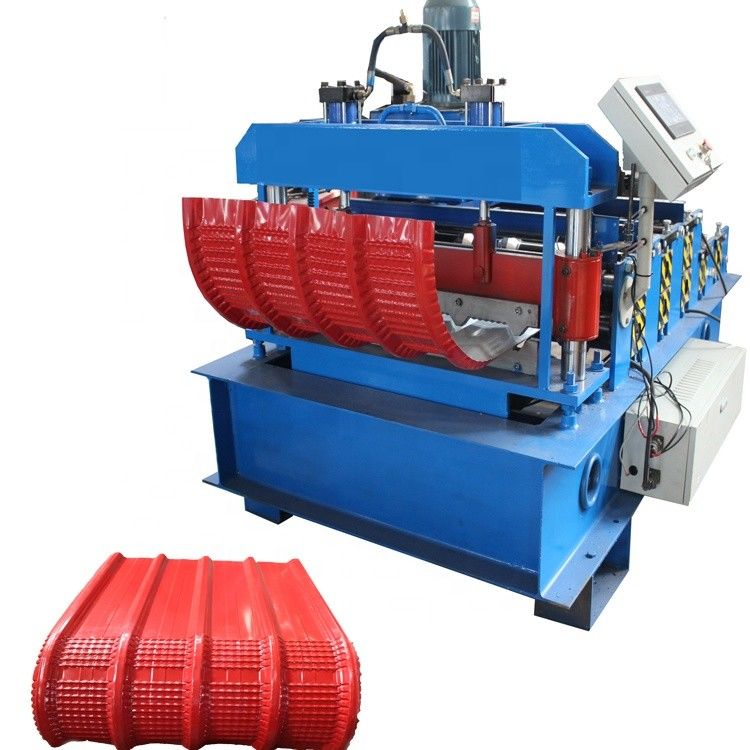

Crimping Curved Arch Roof Sheet Roll Forming Machine Automatic

The curved panel is used for the door and wall, when raining, the rain drops to the front of your door, and there is some water. It is not convenient to come in or out. Now with the curved panel, the rain is guided away from your door.It will be cleaner.
It works same for the wall. With the curved panel, the rain will not leak into your room, also keeps away from the wall panel. Thus the wall panel will endure for longer years.

Specification

Name	Crimping Curved Arch Roof Sheet Roll Forming Machine
Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Coil Width Range	914, 1000, 1220 or 1250 mm; According to actual drawing
Electric Power	380V, 50 Hz, 3 phase or according to your need
Dimension	About 2.61.61.2m(LWH), as per the drawing
Cutting	Automatically stop and cutting when it comes to the set length
Length of the Sheet	You can set the length according to your need. It is controlled by PLC. length accuracy: ±1mm.

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
