Name: Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 840/850
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof

versatile trapezoidal roll forming machine,0.3mm trapezoidal roll forming machine,0.3mm metal roof roll forming machine

0.3mm trapezoidal roll forming machine

0.3mm metal roof roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

شماره مدل:

840/850

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

مواد خام:

ورق PPGI/گالوانیزه

قدرت کل:

9.5 کیلو وات

نام تجاری سیستم کنترل:

دلتا یا در صورت نیاز

ماده غلتکی:

45# فولاد کروم اندود

ضخامت کار:

0.3-0.7 میلی متر

اجزای اصلی:

موتور، پمپ، PLC

وزن:

5500 کیلوگرم

ولتاژ:

380 ولت یا در صورت نیاز

برجسته کردن:

versatile trapezoidal roll forming machine,0.3mm trapezoidal roll forming machine,0.3mm metal roof roll forming machine

0.3mm trapezoidal roll forming machine

0.3mm metal roof roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

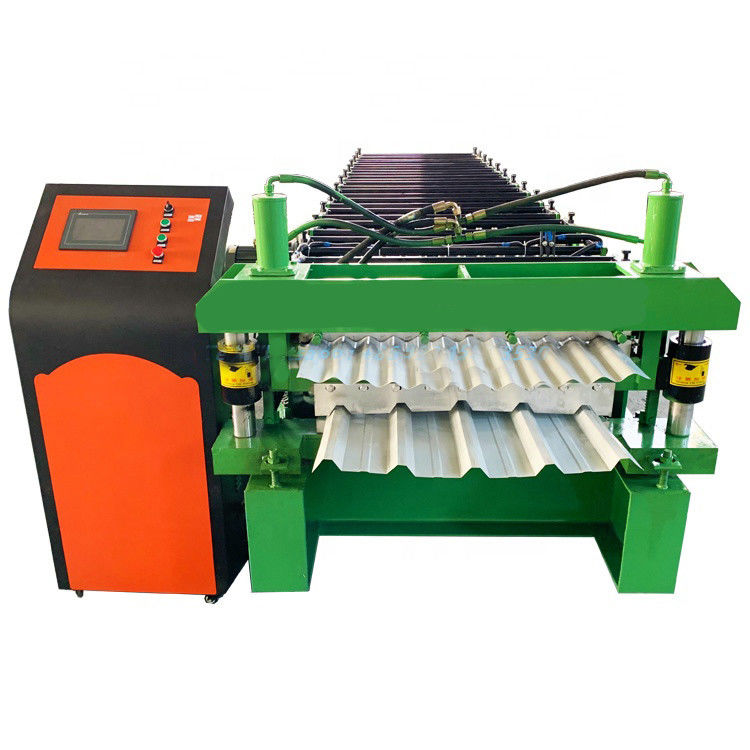

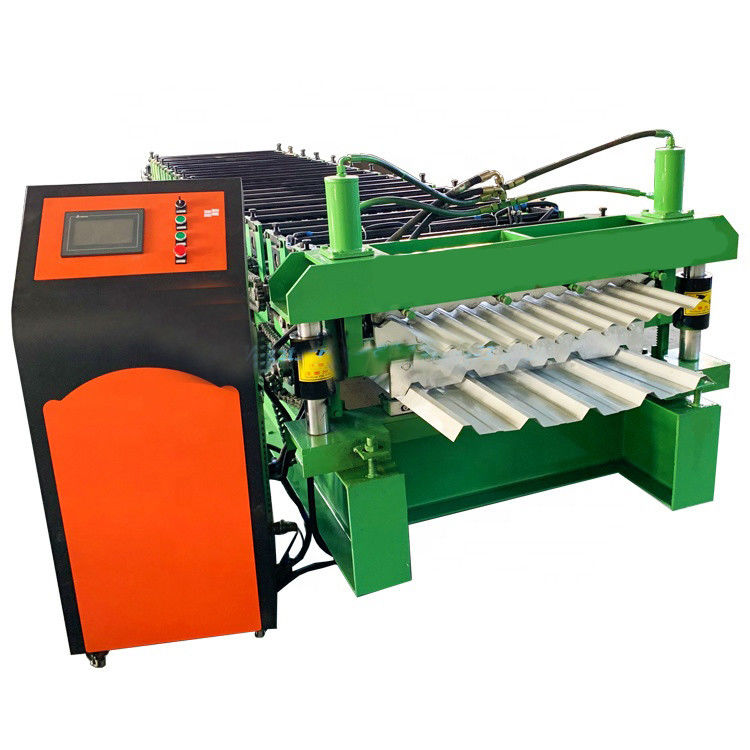

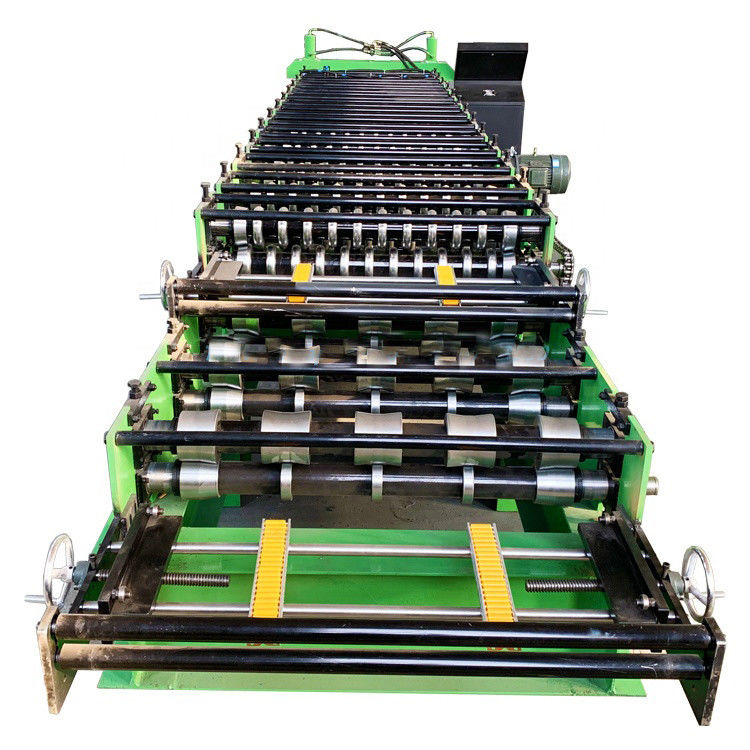

Double Layer Trapezoidal Metal Roofing Machine Versatile

The double layer rollformer produces a dual profile on the same machine, sharing the same de-coiler, drive trains and motors, but using different rolls and different cut offs.

The double layer machine is particularly useful where operating or storage space is a problem. Double layer roofing panel roll forming machine can make two different roof design one machine , you can choose different roof collocations, IBR profile and Corrugated profile,Step tile and trapezoidal,Step tile and corrugated or Glazed tile and IBR ,Glazed and Corrugated profile.
Detailed Parameters:

Metal material thickness	0.3 - 0.7mm
Metal material width	925mm or as client require
Roller Stage	13+15 rows
Roller Material	45# forging steel with chromium plate
Diameter of shaft	Φ70mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H beams
Side Panel of Machine	16mm
Chain	1.2 inch
Motor power	5.5 kw
Hydraulic pump power	4 kw
Productivity	8-12 meters per minute

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
