Name: 7/8 Roof Roll Forming Machine Corrugated Galvanized Metal Automatic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کاشی Met / کاشی لعابدار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

7/8 Roof Roll Forming Machine Corrugated Galvanized Metal Automatic Cutting

galvanized roof roll forming machine,automatic cutting roof roll forming machine,corrugated roofing sheet roll forming machine

automatic cutting roof roll forming machine

corrugated roofing sheet roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

کاشی Met / کاشی لعابدار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه برش اتوماتیک سقف فلزی گالوانیزه موجدار 7/8

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت 60 هرتز یا با توجه به نیاز مشتری

ظرفیت تولید:

8-12 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

سیستم کنترل:

جعبه کنترل PLC

اجزای اصلی:

موتور، پمپ، گیربکس، PLC

برش مواد تیغه:

Cr12Mov با درمان خاموش

نکات کلیدی فروش:

طول عمر طولانی

برجسته کردن:

galvanized roof roll forming machine,automatic cutting roof roll forming machine,corrugated roofing sheet roll forming machine

automatic cutting roof roll forming machine

corrugated roofing sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

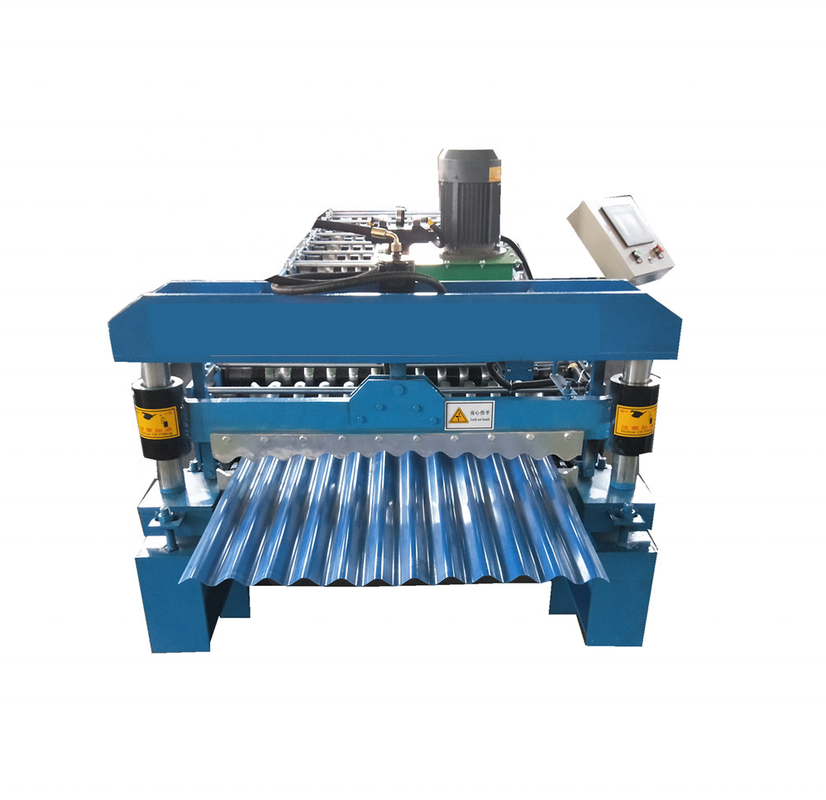

7/8 Corrugated galvanized metal Roofing machine automatic cutting

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. This machine can produce very beautiful and durable roof tile, With these roof tile, it can protect your roof of house well.

Specification

No.	Type		Specification
1	Row Material	Type	Aluminum / Steel / Galvanized Panel
		Feeding width	According to client's requirement
		Thickness	0.3-0.7 mm
2	Main body	Roller station	13 Steps (According to the profile)
		Diameter of shaft	75mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	300mm H Steel
		Frame thickenss	18 mm
		Operation	Manual and Automatic
		Working speed	8-12 m/min
		Size (LWH)	About 760015501510mm
		Weight	About 3.5 Tons
		Cutting type	Hydraulic cutting
		Material of blade	Cr12, HRC60-62°C
3	Power	Motor power	4 kw
		Hydraulic power	4 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

7/8 Roof Roll Forming Machine Corrugated Galvanized Metal Automatic Cutting 0
