Touchscreen 105 Dura Metal Palisade Fence Roll Forming Machine Automated

palisade fence roll forming machine,touchscreen fence roll forming machine,automated fence post roll forming machine

touchscreen fence roll forming machine

automated fence post roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

قاب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

105 Dura Metal Palisade Fence Roll Forming Machine Automated

ولتاژ:

380 ولت 50Hz 3Phases

وزن:

3700 کیلوگرم

اجزای اصلی:

موتور، بلبرینگ، پمپ، PLC، صفحه لمسی

قاب اصلی:

فولاد 350 H

ظرفیت تولید:

12-18 متر در دقیقه

ایستگاه های غلتکی:

18 ایستگاه

برجسته کردن:

palisade fence roll forming machine,touchscreen fence roll forming machine,automated fence post roll forming machine

touchscreen fence roll forming machine

automated fence post roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

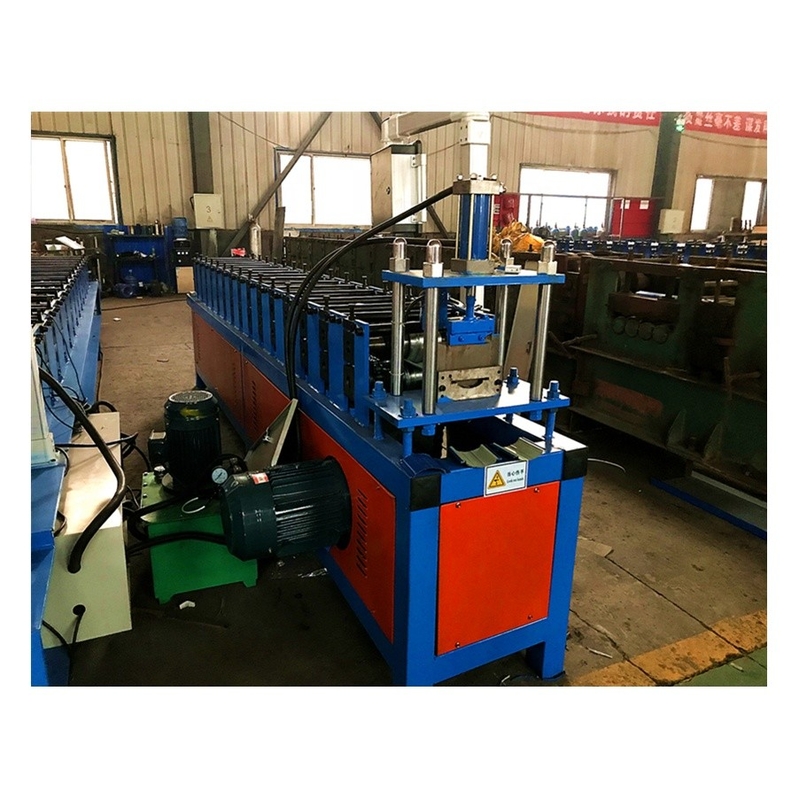

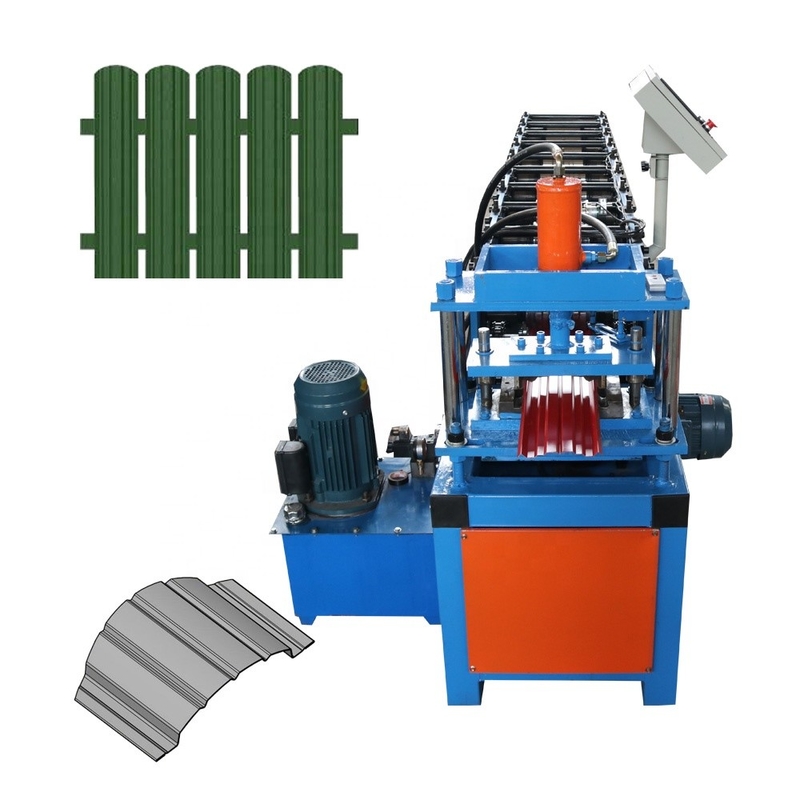

105 Dura Metal Palisade Fence Roll Forming Machine Automated

The advantage of 105 dura metal palisade fence roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

Specification

No.	105 dura metal palisade fence roll forming machine
1	Suitable to process	Color alu-zinc steel strips
2	Roller	15 Rows plus leveling device
3	Dimensions	5.811.5m
4	Motor Power	3Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ70mm
10	Weight	About 2600kgs
11	Main structure of the machine	Square steel frame
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Gear driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

Application

The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
