Metal Roof PPGI Detla Sheet Roll Forming Machine

380v 60 hz sheet roll forming machine,detla sheet roll forming machine,ppgi roofing sheet roll forming machine

detla sheet roll forming machine

ppgi roofing sheet roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خط تولید رول شکل دهی ورق سقف فلزی آمریکای جنوبی

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت 60 هرتز یا با توجه به نیاز مشتری

ظرفیت تولید:

8 تا 20 متر/دقیقه

ضخامت نورد:

0.3-0.8mm

وزن:

4500 کیلوگرم

ماده غلتکی:

فولاد 45# با کروم 0.05mm

سیستم کنترل:

سیستم PLC(detla).

برجسته کردن:

380v 60 hz sheet roll forming machine,detla sheet roll forming machine,ppgi roofing sheet roll forming machine

detla sheet roll forming machine

ppgi roofing sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

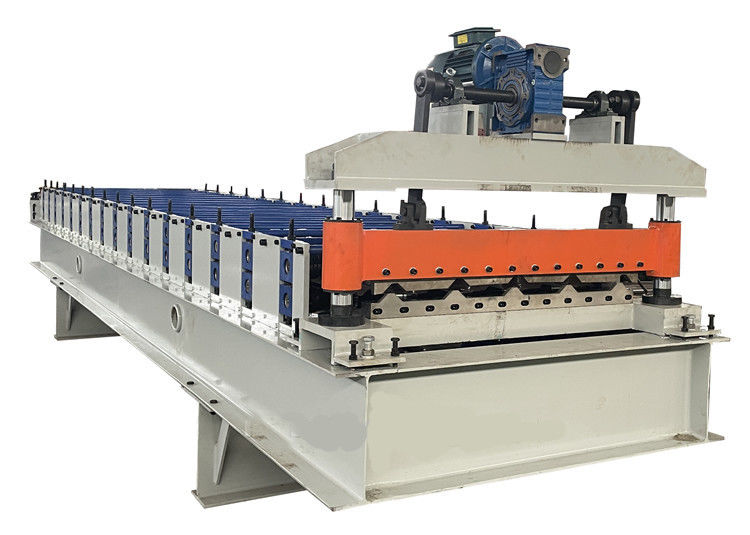

South America Metal Roof Sheet Roof Sheet Roll Forming Production Line

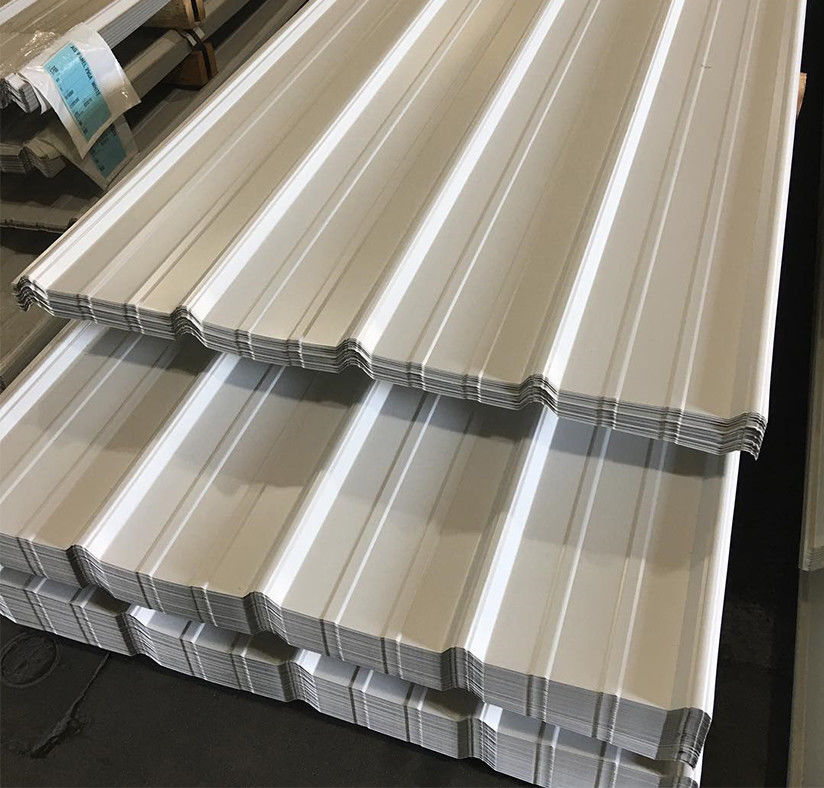

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. With these roof tile,840 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm /1200mm / 1250mm. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. it can protect your roof of house well.

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	11
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6.2×1.5×1.3 m
	Machine weight	About 4.5 ton
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
Guarantee

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
