Name: Plc Waterproof Stud And Track Roll Forming Machine With Punching
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مطالعه و پیگیری
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Plc Waterproof Stud And Track Roll Forming Machine With Punching

plc stud and track roll forming machine,punching stud and track roll forming machine,waterproof stud roll former

punching stud and track roll forming machine

waterproof stud roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

مطالعه و پیگیری

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل‌دهی رول گل میخ و مسیر مالزی محبوب با پانچ

ظرفیت تولید:

20---40 متر در دقیقه

قدرت:

5.5 کیلو وات + 4 کیلو وات

نکات کلیدی فروش:

آسان برای کار کردن

وضعیت:

جدید

سرعت ماشین:

معمولی: 25 متر در دقیقه؛ بالاتر: 40---60 متر در دقیقه

سیستم کنترل ماشین:

کنترل کامل خودکار PLC

تحمل:

+/- 0.1mm

برجسته کردن:

plc stud and track roll forming machine,punching stud and track roll forming machine,waterproof stud roll former

punching stud and track roll forming machine

waterproof stud roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

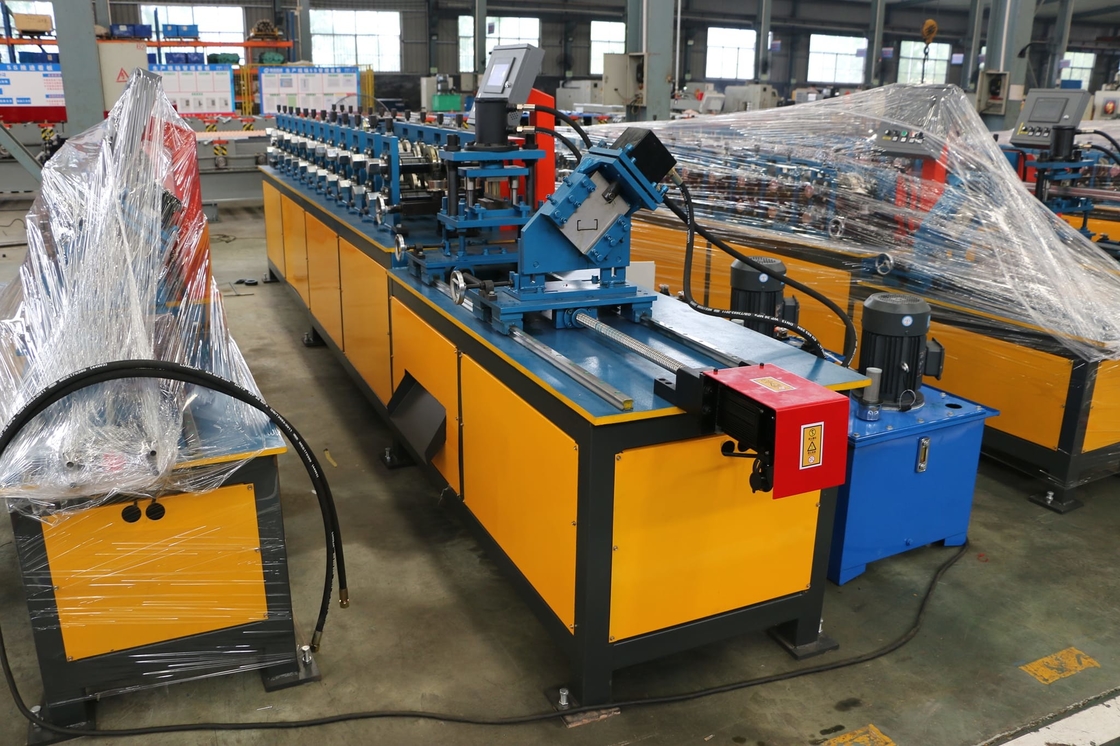

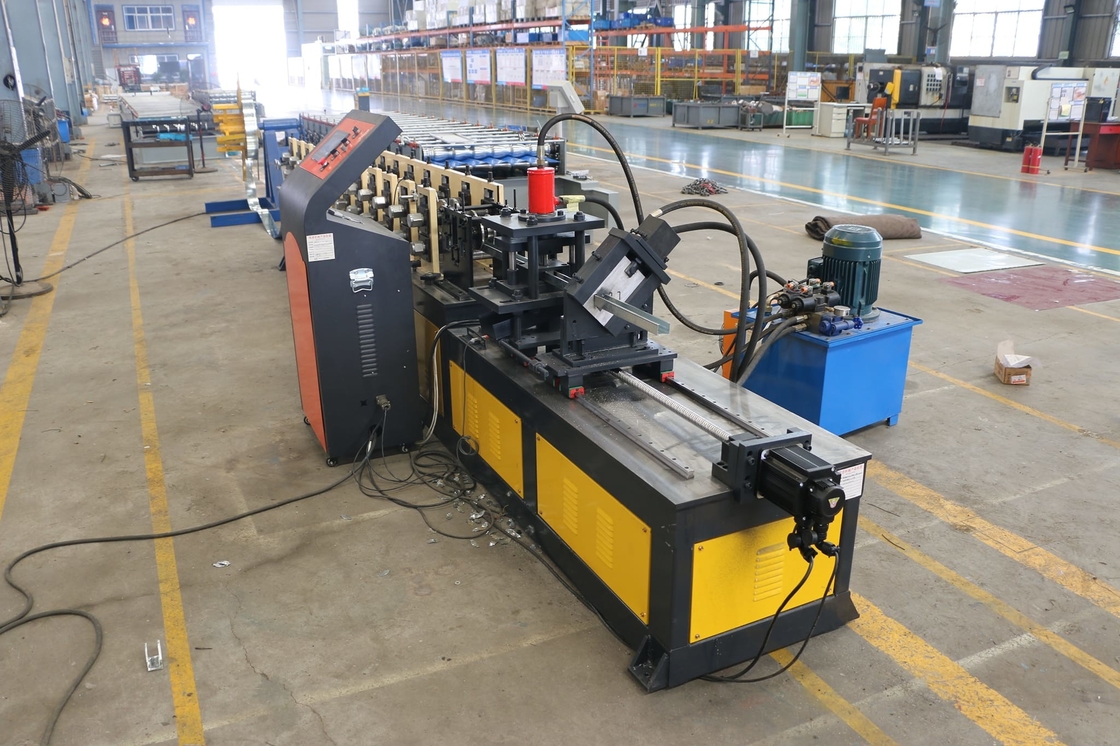

Stud and Track Roll Forming Machine Malaysia Popular with Punching

Summary

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 17+ years experience;

3). We achieves that the machine capacity is double of the competitors;

4). The machine working speed can be 60m/min;

5). Very easy to install and operate the roll forming machine.

light gauge Stud and Track Roll Forming Lines produce precision studs and tracks for the booming residential and commercial construction market.The Steel Stud Drywall Framing machine can produce a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Stud and Track wal machines are available to suit almost all situations.

Specification

Forming steps	12stations
Roller material	Cr12
Shaft material	45# steel
Shaft diameter	80mm
Machine frame	Middle steel plate
Machine stand	350H steel
Work speed	0-20m/min
Transimmison	Gear
Power of main machine	4kw
Cutting system	Hydraulic cutting
Voltage	380V 50HZ 3P
Oil pump motor	4kw
Machine color	Yellow and blue

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received. Plc Waterproof Stud And Track Roll Forming Machine With Punching 0
