Name: Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کاشی Met / کاشی لعابدار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic

corrugated color steel roll forming machine,fullautomatic color steel roll forming machine,three layer corrugated roll former

fullautomatic color steel roll forming machine

three layer corrugated roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

کاشی Met / کاشی لعابدار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سه لایه تمام اتوماتیک

نوع کاشی:

استیل رنگی

ولتاژ:

380 ولت 50 هرتز 3 فاز یا دیگر

اجزای اصلی:

موتور، پمپ، PLC

قدرت موتور:

4 کیلو وات

تیغ برنده:

Cr12Mov با درمان خاموش

سیستم برش:

سیستم برش هیدرولیک پس از شکل گیری

ابعاد (L*W*H):

7000mm*1500mm*1700mm

ضخامت نورد:

0.3-0.8mm

سیستم کنترل:

کاملاً اتوماتیک

برجسته کردن:

corrugated color steel roll forming machine,fullautomatic color steel roll forming machine,three layer corrugated roll former

fullautomatic color steel roll forming machine

three layer corrugated roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

35 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

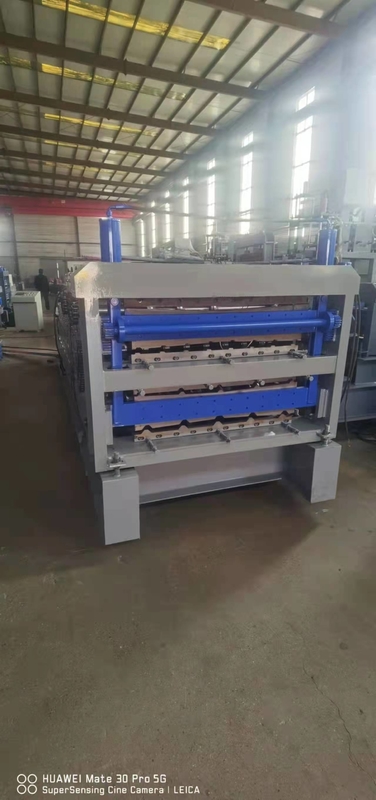

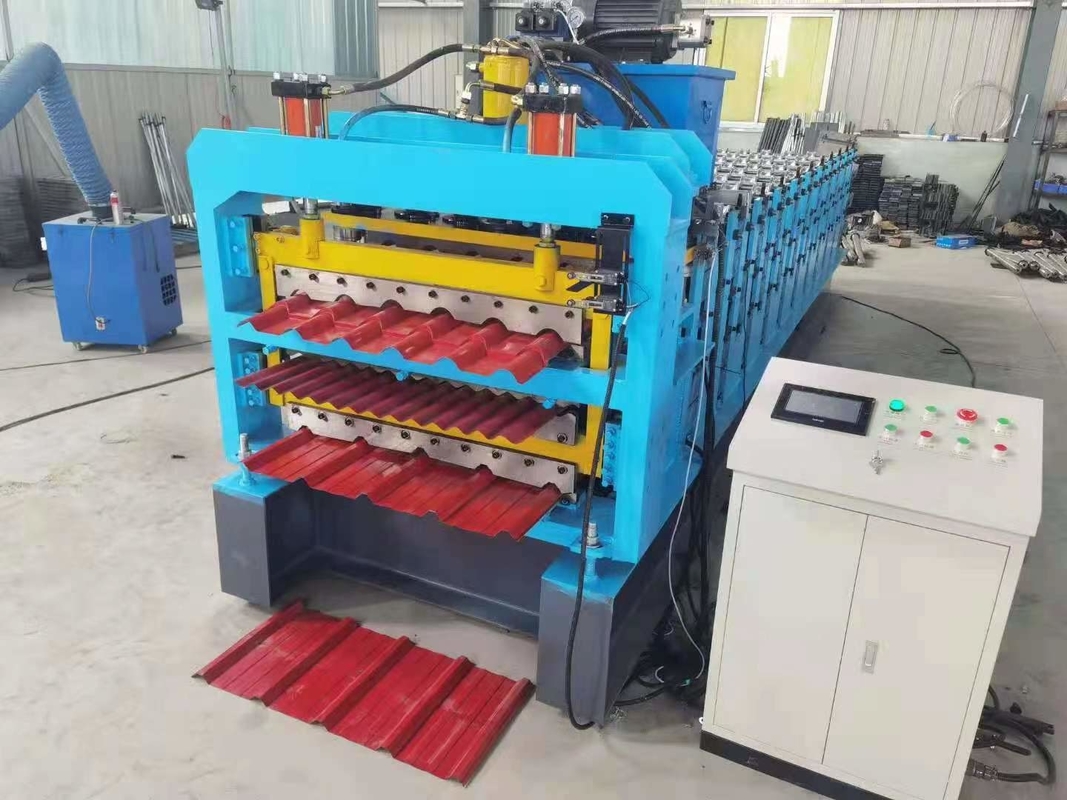

Three layer roll forming machine Full automatic

Color painted steel three layer roofing roll forming machine is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

Specification

Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm)	0.3-1.0mm or as your customized
Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts	45# steel
Diameter of shafts	70mm or as your customized
Forming speed	8-12 m/min or as your customized
Under frame	350 H-beam
Sidewall	16mm
Connect bar	25mm, zinc plated
Forming steps	10-18 or as your customized
Control system	Delta PLC and Inverter
Suitable power	380V, 50 Hz, 3 phase or according to your need
Drive mode	Chain and sprocket, chain size 1 inch
Main motor	3-5.5kw
Hydraulic pump station	3-5.5kw
Cutting model	Hydraulic profile cutting
Dimension of the machine	7.5m-11m×1.5mm×1.2m
Weight of the machine	3.5 ton -6 ton

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic 0
