Ceiling C U Automatic Keel Making Machine For Building Material

plc keel roll forming machine,ceiling keel making machine,plc keel making machine

ceiling keel making machine

plc keel making machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه ساخت کیل خودکار سقفی CU برای مصالح ساختمانی

اجزای اصلی:

PLC، موتور، بلبرینگ، گیربکس، موتور، مخزن تحت فشار، دنده، Pu

فشار کاری:

195 mpa --- 350 mpa

ولتاژ:

380 ولت / 3 فاز / 50 هرتز (یا طبق نیاز شما)

ابعاد (L*W*H):

3000*800*1400 میلی متر

ضخامت:

0.18mm-0.8mm

ماده شفت:

فولاد 45# درجه بالا

گارانتی قطعات اصلی:

2 سال

برجسته کردن:

plc keel roll forming machine,ceiling keel making machine,plc keel making machine

ceiling keel making machine

plc keel making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

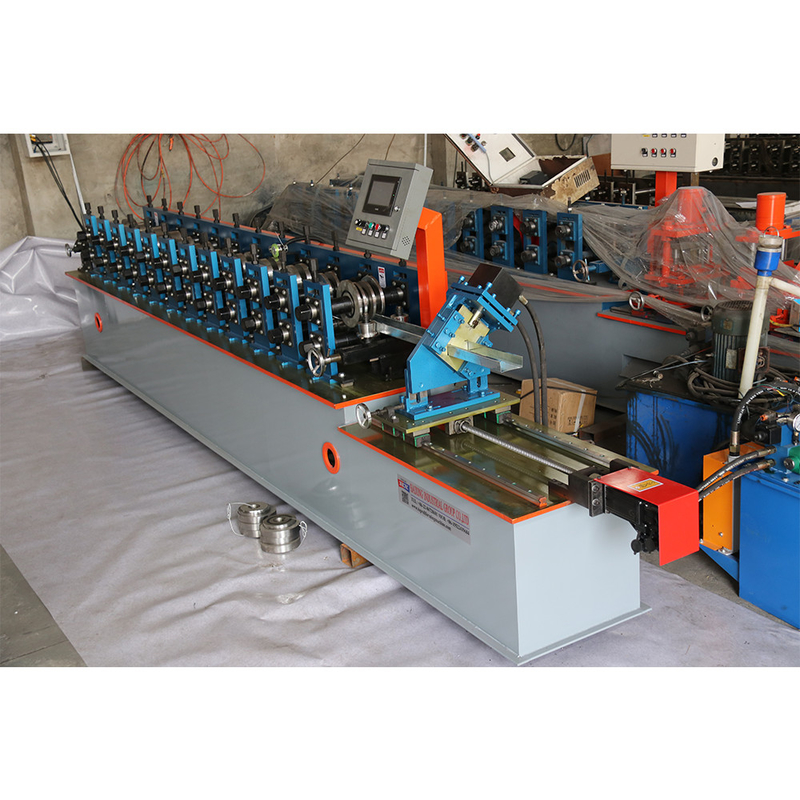

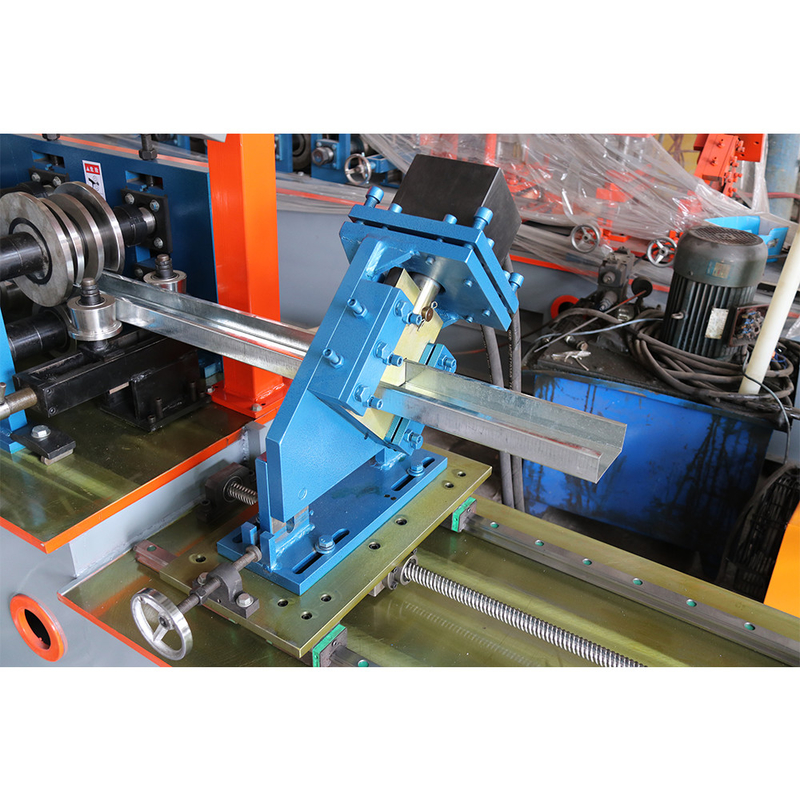

Ceiling C U Automatic Keel Making Machine For Building Material

This product Cd Ud Light Steel Ceiling Keel Machine for Beam and Frame is mainly used to produce light steel keel required for hotels, terminals, bus stations, stations, playgrounds, shopping malls, factories, office buildings, old building renovation, interior decoration, roofing and other places. This product has strong durability, is not easy to be damaged, and the speed of production is fast, which greatly saves time and labor costs. All our machine include a range of standard equipment that ensures the safety, functionality and usability of the machine are unsurpassed.

Specification

No.	Item	Description
1	Core Components	Motor, Engine, PLC
2	Shaft material	45#steel hardening and tempering
3	Cutting Mode	Hydraulic Cutting
4	Production Capacity	12-20/min
5	Cutting length tolerance	±1mm
6	Weight	3.5T
7	Main frame	350H Bemas
8	Suitable material	Galvanizedsteel Coil
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 50HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Feeding width	according to sample panel size

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

Ceiling C U Automatic Keel Making Machine For Building Material 0
