Name: Metal Cold PLC Floor Deck Machine Thickness 1.5mm 22kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

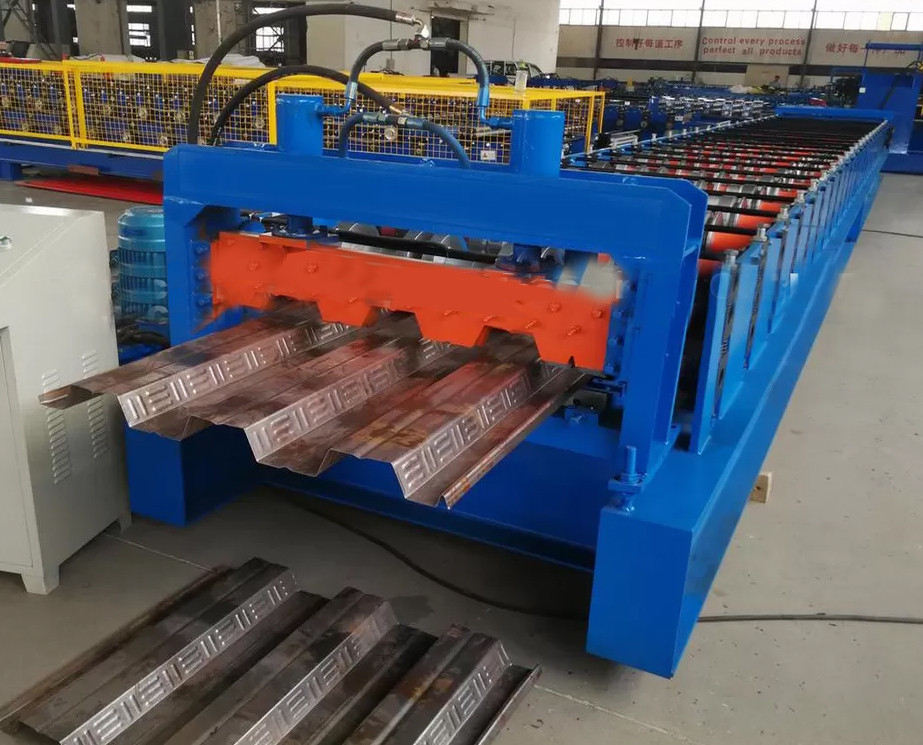

Metal Cold PLC Floor Deck Machine Thickness 1.5mm 22kw

thickness 1.5mm floor deck machine,plc steel deck roll forming machine,22kw floor deck machine

plc steel deck roll forming machine

22kw floor deck machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول سرد عرشه فلزی برای ضخامت 1.5 میلی متر 22 کیلووات

ضخامت:

1.5 میلی متر

گارانتی:

1 سال

سرعت:

10 متر در دقیقه

سیستم کنترل:

PLC

وزن:

20T

سرعت شکل دهی رول:

10-15 در دقیقه

برجسته کردن:

thickness 1.5mm floor deck machine,plc steel deck roll forming machine,22kw floor deck machine

plc steel deck roll forming machine

22kw floor deck machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Metal Floor Deck Cold Roll Forming Machine For Thickness 1.5mm 22KW

Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.

Specification

No.	Main parameter of Floor Deck Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1500mm
3	Rollers	28 rows
4	Dimensions	127001.851.61m
5	Power	33+11.5kw
6	Rolling material	shaft bearing steel(quenching)
6	Thickness of the plate	1.5mm
7	Productivity	15m/min
8	Diameter of the roller	Φ100mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Metal Cold PLC Floor Deck Machine Thickness 1.5mm 22kw 0
