Name: 76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: ناودان
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic

rectangular downpipe forming machine,76.2 * 101.6mm downpipe forming machine,full automatic square downspout machine

76.2 * 101.6mm downpipe forming machine

full automatic square downspout machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

ناودان

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه تمام اتوماتیک 76.2 * 101.6 میلی متر رول شکل دهی مستطیل شکل

تایپ کنید:

خودکار

ولتاژ:

380 ولت 50Hz 3Phases

روش برش:

تراشه پرواز

سیستم کنترل:

کنترل PLC

ضخامت صفحه:

0.3-0.6 میلی متر

مواد صفحه برش:

CR12

ابعاد:

7.4 * 1.15 * 1.51 متر

هیدرولیک:

40#

قدرت:

5.5 + 4 کیلو وات

برجسته کردن:

rectangular downpipe forming machine,76.2 * 101.6mm downpipe forming machine,full automatic square downspout machine

76.2 * 101.6mm downpipe forming machine

full automatic square downspout machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

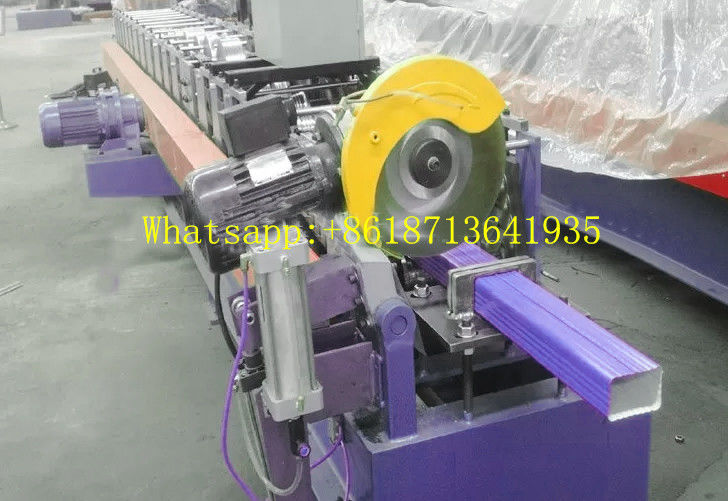

76.2 * 101.6mm Rectangular Downspout Roll Forming Machinery Full Automatic

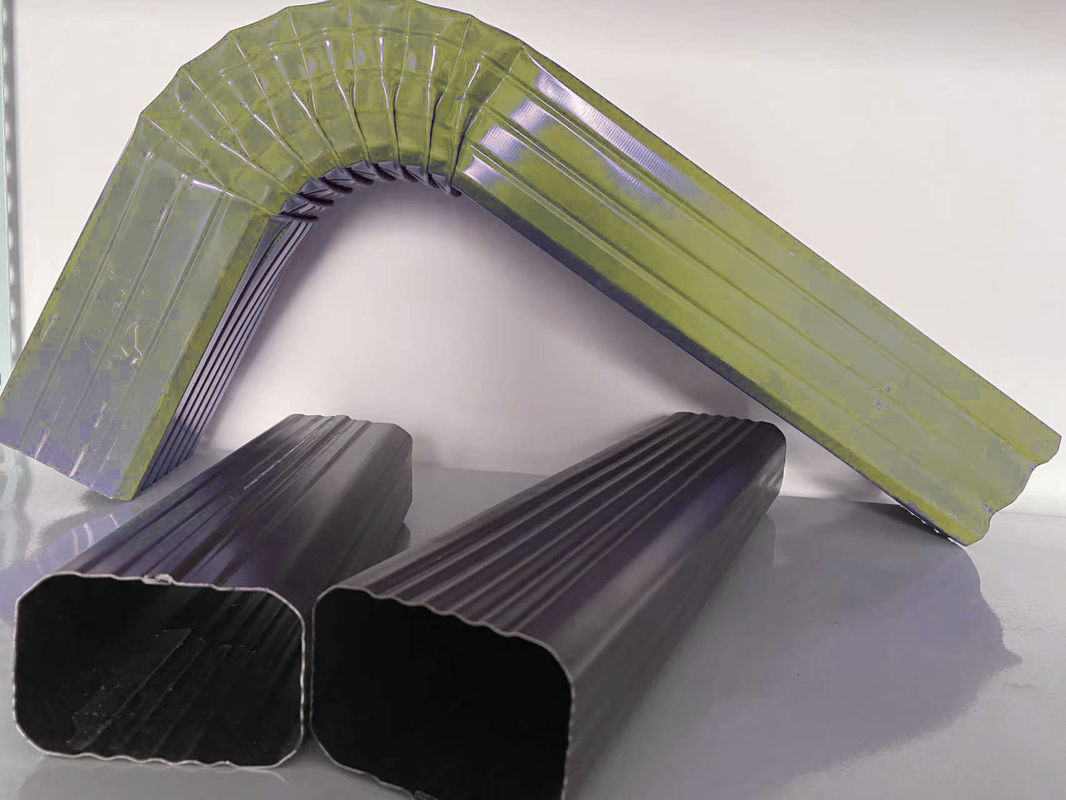

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Specification

No.	Main parameter of Downspout Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	330mm
3	Rollers	15rows
4	Dimensions	740011501510mm
5	Power	5.5+4kw
6	Rolling material	high grade 45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ66mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Application

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms and delivery

40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.

76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic 0
