Mild Steel 2350mpa Double Layer Roll Forming Machine For Industrial

industrial double layer roll forming machine,2350mpa double layer roll forming machine,mild steel rollform equipment

2350mpa double layer roll forming machine

mild steel rollform equipment

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

دستگاه رول فرمینگ دو لایه فولادی ملایم برای صنعتی

سرعت شکل دهی رول:

15-20 متر در دقیقه

مواد:

فولاد شماره 45، با پوشش کروم

قدرت موتور واحد هیدرولیک:

3 کیلو وات

سیستم کنترل:

PLC و کنورتر

قدرت حرکتی اصلی:

7.5 کیلو وات

ولتاژ:

380 ولت 50 هرتز 3PH

مواد:

کویل های فولادی رنگی

برجسته کردن:

industrial double layer roll forming machine,2350mpa double layer roll forming machine,mild steel rollform equipment

2350mpa double layer roll forming machine

mild steel rollform equipment

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

35 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

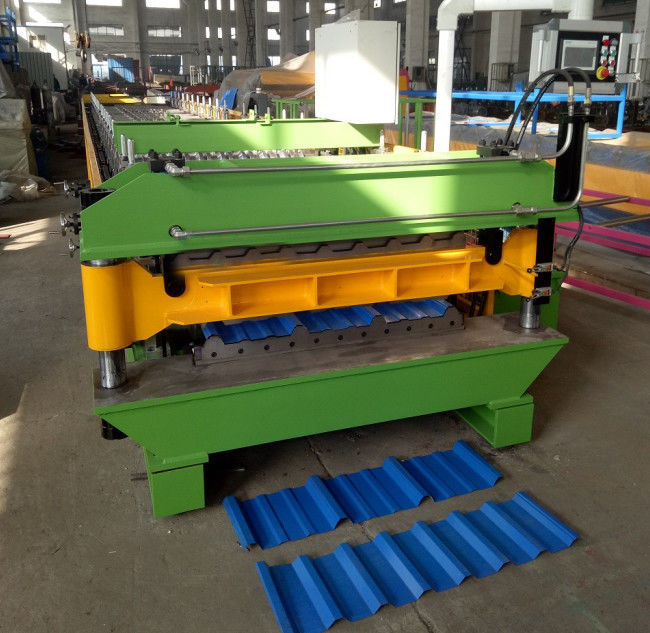

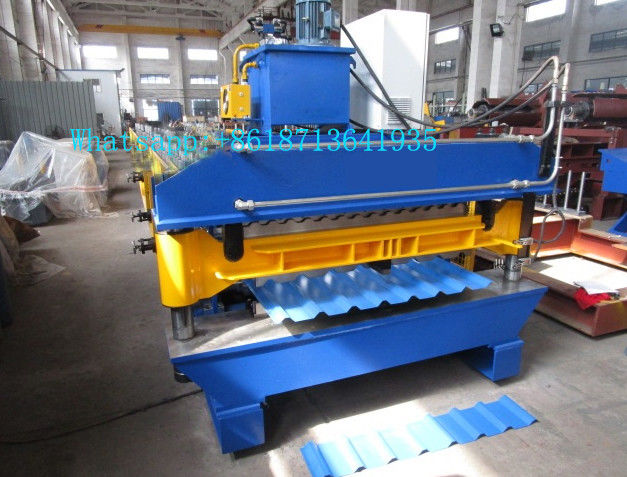

Mild Steel Double Layer Roll Forming Machine For Industrial

Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets.

usually, one layer forming machine or single layer forming machine only make one roofing design.

Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.

double layer machine have additional set rollers and cut blade for another roofing design. that is , two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.

Equipment Detailed Parameters

Suitable Raw Material
Weight	About 12000kgs
Size	About 11m x 1.7m x 1.5m (length x width x height)
Material	Colored Steel Coils
Thickness	0.3-0.7mm
Coil width	1220mm
Yield Strength	2350Mpa
Main Technical Parameters
Quantity of forming rollers stations	20-22
Diameter of forming rollers shafts	75mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 7.5kw
Electric Power requirement	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Mild Steel 2350mpa Double Layer Roll Forming Machine For Industrial 0
