Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

wall panel roll forming machine 30m/min,touchscreen wall panel roll forming machine,touchscreen cold roll former

touchscreen wall panel roll forming machine

touchscreen cold roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

جزئیات محصول

نام محصول:

تولید کنندگان دستگاه پانل دیواری سقف فلزی

اجزای اصلی:

موتور، موتور، PLC

سیستم کنترل:

6000 کیلوگرم

ظرفیت تولید:

30 متر در دقیقه

ولتاژ:

380 ولت

گارانتی قطعات اصلی:

1 سال

نوع کاشی:

فولاد

پس فروش:

پشتیبانی فنی ویدیویی

برجسته کردن:

wall panel roll forming machine 30m/min,touchscreen wall panel roll forming machine,touchscreen cold roll former

touchscreen wall panel roll forming machine

touchscreen cold roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

بهترین قیمت رو بدست بیار

ویدئو

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

بهترین قیمت رو بدست بیار

ویدئو

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

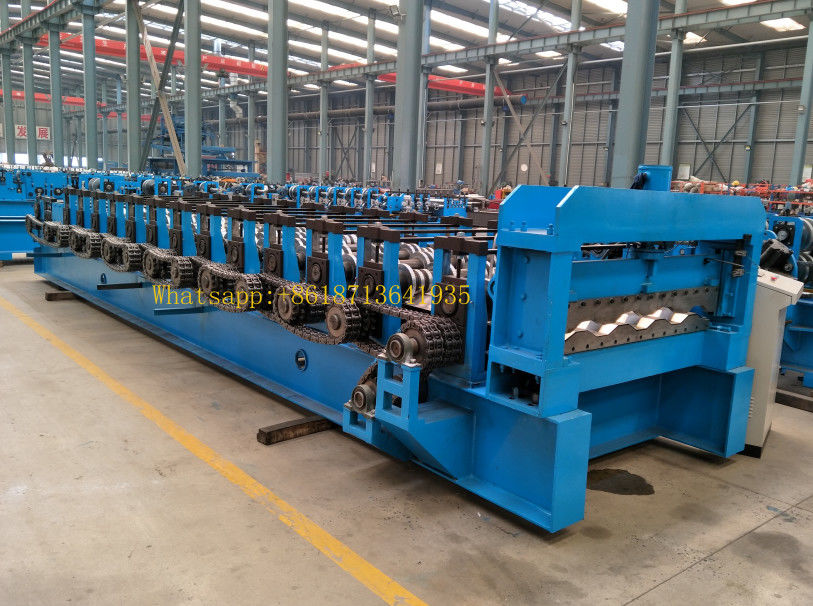

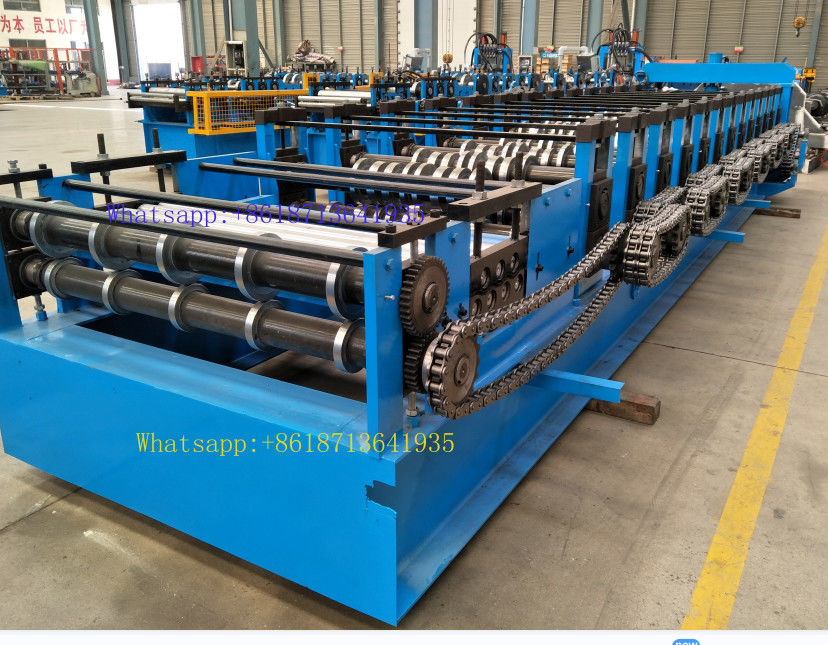

Metal Roof Wall Panel Machine Manufacturers

Metal roof Wall Panel roll forming machine is to use color coating steel plate, the roll forming into various wave type roof sheets, as been widely applied for industrial and civil buildings, warehouses, large-span steel structure roofing, wall and external decoration of the house, etc., Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Specification

Model	840/900
Rod	18
Production and processing speed	30 m/min
Processing thickness	color steel 3mm
Axle diameter of roll	Ø100
Frame	300H steel welding
Medium plate	16mm
Transmission mode	1 inch sprocket chain drive
Shaft material	45# quenching and finishing machining
Wheel material	45# finishing car processing, high frequency quenching, hard chrome plating
Main engine power	4KW pure copper motor
Oil pump motor	7.5KW
Control system	touch screen setting
Shear	hydraulic mold shear
Cutter plate	Cr12 blade

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
