Car Carriage Panel 380V Custom Roll Former Cold Box Panel Making

جزئیات محصول

نام محصول:

ماشین کالسکه پانل سرد رول شکل گیری ماشین جعبه پانل ماشین

نکات کلیدی فروش:

سطح ایمنی بالا

ماده غلتکی:

فولاد Gcr15 با ماشینکاری CNC، سطح کروم سخت اندود شده؛

ظرفیت تولید:

8-12 متر در دقیقه

ولتاژ:

380 ولت

گارانتی قطعات اصلی:

1 سال

نوع کاشی:

فولاد

قطر غلتک:

Φ70mm

برجسته کردن:

car carriage panel custom roll former,380v custom roll former,box panel making rollform equipment

380v custom roll former

box panel making rollform equipment

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

بهترین قیمت رو بدست بیار

ویدئو

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

بهترین قیمت رو بدست بیار

ویدئو

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

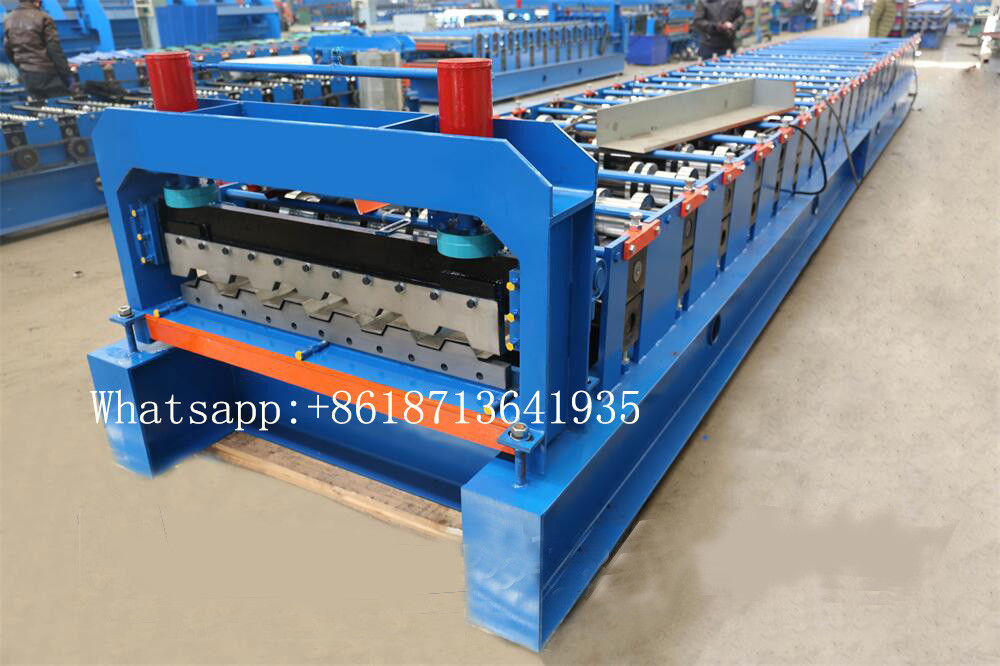

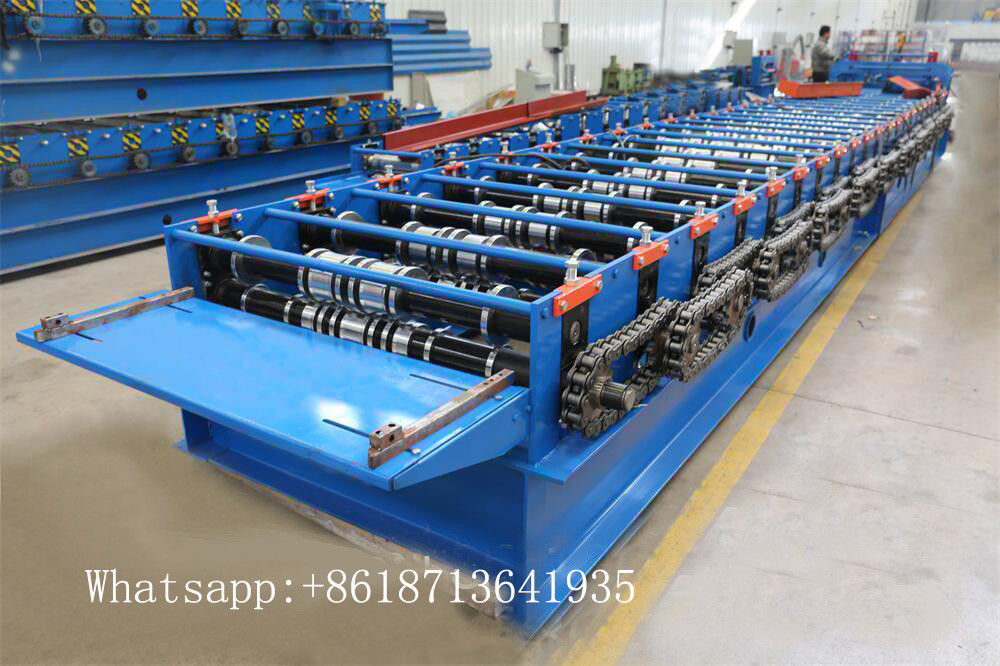

Car Carriage Panel Cold Roll Forming Machine Box Panel Making Machine

cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate,and help to enhance the image of the all project.

Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Specification

No.		main parameter of car panel roll forming machine
1		Suitable to process	Color steel plate
2		Width of the plate	1220mm
3		Rollers	14-18rows
4		Dimensions	11.61.61.5m
5		Power	7.5+4kw
6		Thickness of the plate	0.3-0.8mm
7		Productivity	8-12m/min
8		Diameter of the roller	Φ70mm
9		Weight	About 6.8 T
10		Voltage	380V 50Hz 3phases
11		Rolling material	Carbon Steel 45#
12		Material of the cutting plate	Cr12
13		Processing precision	Within 1.00mm
14		Control system	PLC control
15	Side panel of machine		14mm
16	Main structure of the machine		300 H steel

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
