Name: Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: FMS-24.3-262.5-1050
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

aluminum coil trapezoidal roll forming machine,converter trapezoidal roll forming machine,converter trapezoidal sheet roll forming machine

converter trapezoidal roll forming machine

converter trapezoidal sheet roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE, ISO, TUV

شماره مدل:

FMS-24.3-262.5-1050

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

دستگاه رول فرمینگ ذوزنقه ای

سرعت شکل دهی رول:

15-20 متر در دقیقه

ماده غلتکی:

فولاد شماره 45، با پوشش کروم

قدرت موتور ایستگاه هیدرولیک:

4 کیلو وات

سیستم کنترل:

دلتا plc و مبدل

قدرت حرکتی اصلی:

5.5 کیلووات

ولتاژ:

380 ولت 50 هرتز 3PH

مواد:

کویل های فولادی رنگی، کویل فولادی گالوانیزه، کویل آلومینیومی

برجسته کردن:

aluminum coil trapezoidal roll forming machine,converter trapezoidal roll forming machine,converter trapezoidal sheet roll forming machine

converter trapezoidal roll forming machine

converter trapezoidal sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز کاری

شرایط پرداخت

T/T ، Western Union ، MoneyGram ، L/C ، D/A ، D/P

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Trapezoidal Metal Roof Tile Roll Forming Machine

The trapezoidal roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The trapezoidal roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production

speed of this line is adjustable from 0 to 15 meters per minute, and the normal operation speed is 8 to 10 meters per minute.

3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported

high-quality components with stable performance and high reliability materials applicable to high technical parameters.

Profile Drawing

Equipment Detailed Parameters

Suitable Raw Material
Weight	About 5000kgs
Size	About 8m x 1.2m x 1.3m (length x width x height)
Material	pre-painted steel coil, galvanized steel coil, galvalume steel coil
Thickness	0.3-0.8mm
Coil width	1220mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	18
Diameter of forming rollers shafts	70mm
Roll Forming Speed	0-15m/min
Forming rollers material	45# steel with CNC machining and surface is being hard chrome
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	DELTA PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 4kw
Electric voltage	According to customer’s requirement

More machine pictures

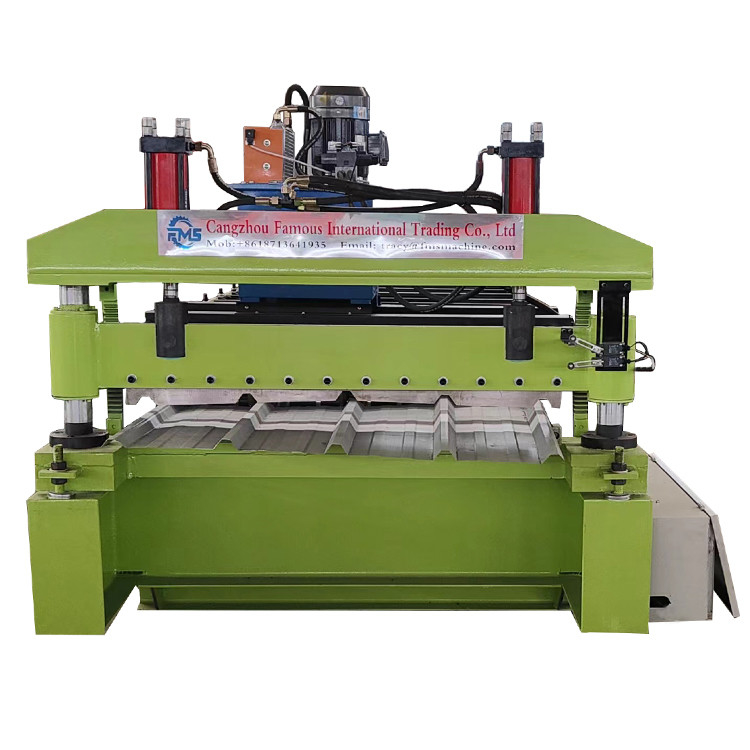

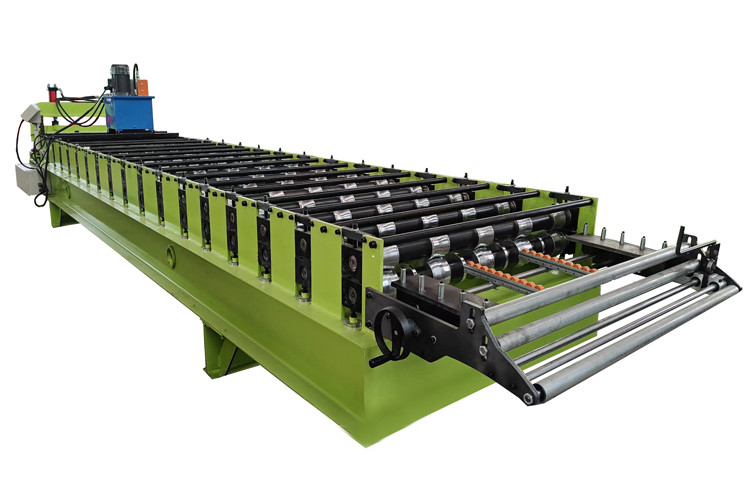

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 1

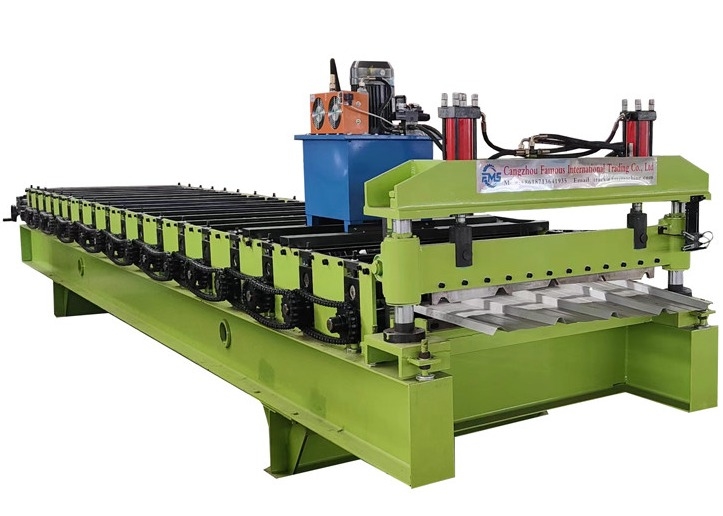

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 2

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

The Delivery Time: 30 working days after the down payment is received.
