Name: Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سرریز
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control

gl down pipe roll forming machine,hydraulic down pipe roll forming machine,3 phases downspout machine

hydraulic down pipe roll forming machine

3 phases downspout machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سیستم کنترل PLC دستگاه رول تشکیل رول برش هیدرولیک

مواد خام:

GL، GI، PPGI

ولتاژ:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

خدمات پس از فروش ارائه شده است:

مهندسین در دسترس برای خدمات ماشین آلات در خارج از کشور، پشتیبانی فنی ویدئویی، پشتیبانی آنلاین، نصب م

گارانتی:

2 سال

ضخامت مواد:

0.4-0.6 میلی متر

ایستگاه غلتکی:

قدرت موتور:

7.5 کیلو وات

پمپ هیدرولیک:

4 کیلو وات

برجسته کردن:

gl down pipe roll forming machine,hydraulic down pipe roll forming machine,3 phases downspout machine

hydraulic down pipe roll forming machine

3 phases downspout machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

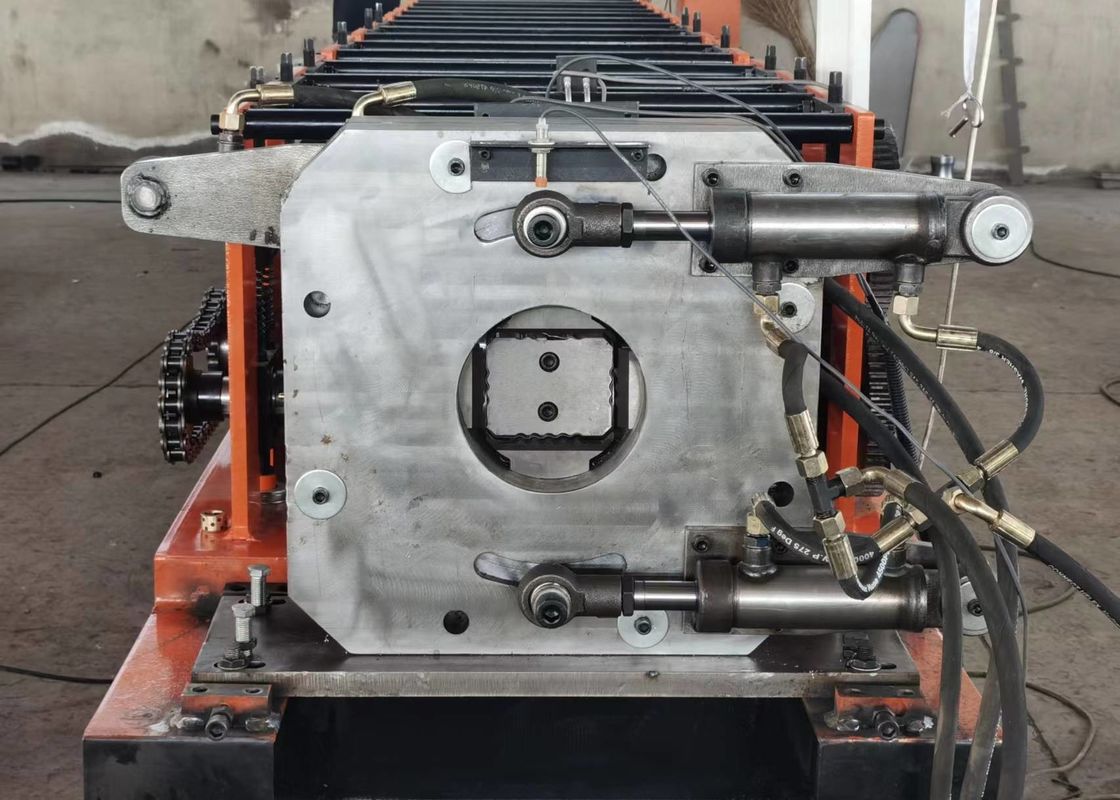

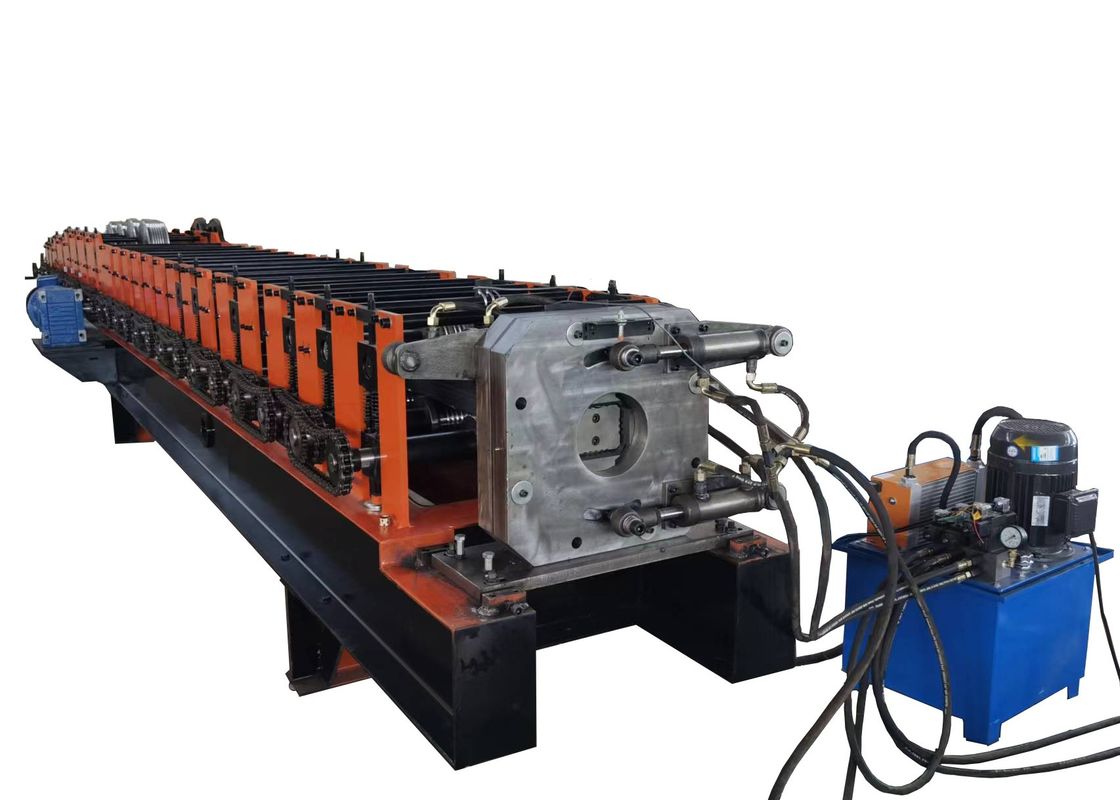

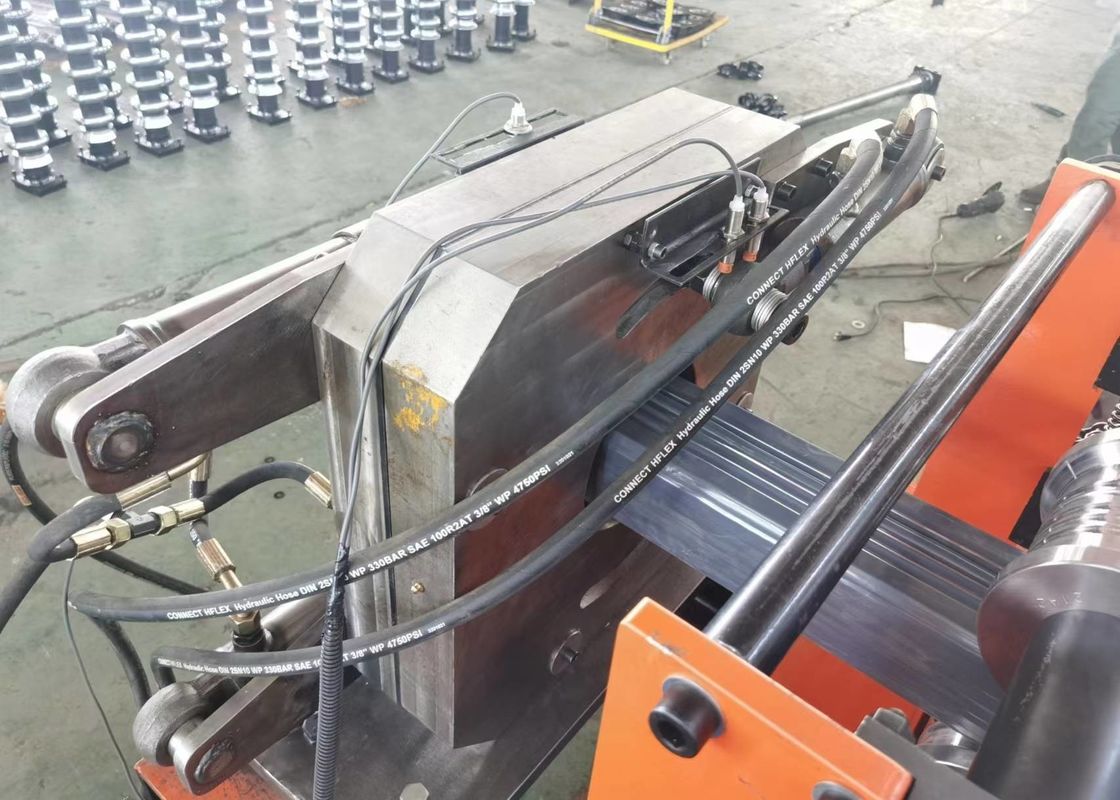

Hydraulic cutting downspout roll forming machine PLC control system

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries.

Profile Drawing

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.4 mm - 0.6 mm
3	Working Speed	8-10 m/min
4	Roller Station	22 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

The equipment is controlled to PLC control, and multiple safety protection is made during normal production. The bed is welded with steel plates. And make a fire treatment to eliminate internal stress and avoid deformation of the fuselage. The material of the roll axis is 40CR, and the quality is adjusted, and the hardness is HB280. The material of the molding mold is GCR15, quenching treatment, hardness: HRC56-62 ° C.

Application

Collect the rainwater of the roof and concentrate to the rainwater pipe paved below the ground. The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.

Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control 1
