75mm Roller Shutter Door Roll Forming Machine Plc Control System

75mm roller shutter door roll forming machine,plc roller shutter door roll forming machine,ppgl roller shutter roll forming machine

plc roller shutter door roll forming machine

ppgl roller shutter roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سیستم کنترل PLC دستگاه شکل دهی دستگاه رول سرد 75 میلی متری درب

اجزای اصلی:

موتور، بلبرینگ، دنده، پمپ، موتور، PLC

ظرفیت تولید:

8-12 متر در دقیقه

ضخامت نورد:

0.8---1.2 میلی متر

وزن:

وضعیت:

جدید

ولتاژ:

380 ولت

ماده شفت:

فولاد شماره 45

برجسته کردن:

75mm roller shutter door roll forming machine,plc roller shutter door roll forming machine,ppgl roller shutter roll forming machine

plc roller shutter door roll forming machine

ppgl roller shutter roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

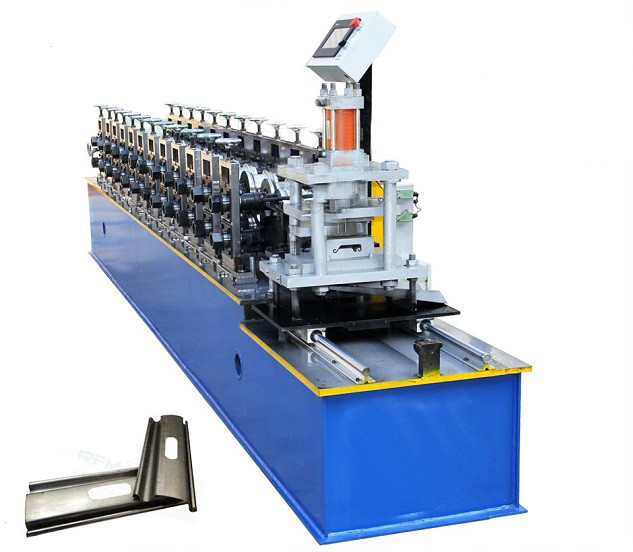

75mm Roller Shutter Door Lath Cold Roll Forming Machine PLC Control System

Roller shutter door roll forming machine is the machines for making shutter door pieces, then several door pieces connected together by door shutter core and linked by rope, the shutter door can be rolled manual or automatic control by electric button. This shutter doors can be installed for steel construction factory, car garage, shop doors and storage doors.

Specification

main forming machine	Control system	Automatic cutting controlled by PLC
	Material thickness	0.8---1.2mm
	Material hardness	195 mpa---350 mpa
	Step length	150mm---380mm(adjustable)
	Forming speed	8-12m/min
	Shaft material	45# steel
	Working speed	3-5.5m/min
	Length of the main part	about 1200017001500mm
	Number of rollers	20 rollers
	Voltage	380V-50HZ-3P(as required)
	Roller fixer	middle plate
	Frame	400H steel
	Material of rollers	45#steel, surface hard chromium plating.

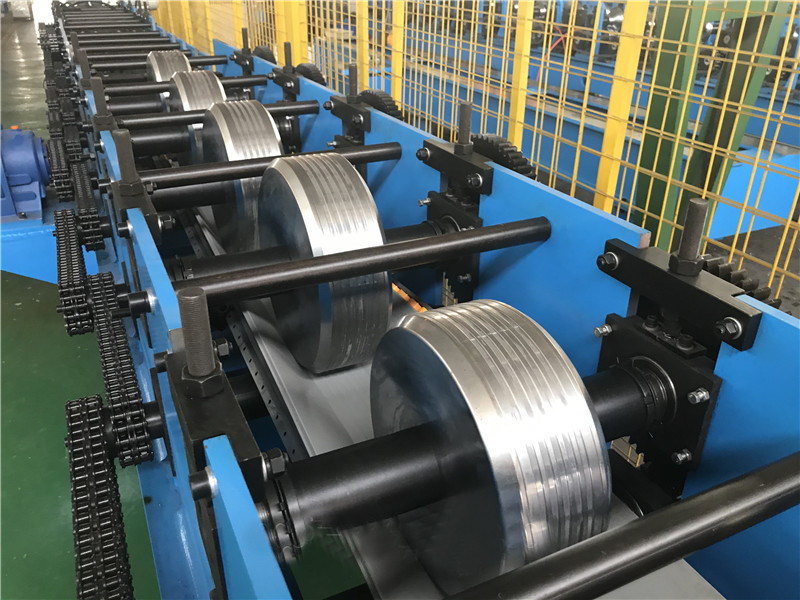

75mm Roller Shutter Door Roll Forming Machine Plc Control System 0

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
