Name: Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درب کرکره ای
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min

metal decoration roller shutter door machine,roller shutter door machine 15m/min,ppgl door shutter roll forming machine

roller shutter door machine 15m/min

ppgl door shutter roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

درب کرکره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دکور فلزی کرکره درب رول فرمینگ ماشین با سرعت بالا 8-15 M / Min

مواد خام:

گالوالوم، گالوانیزه، PPGI

وزن:

ضخامت مواد:

0.3 میلی متر - 0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

15 متر/دقیقه

ابعاد (L*W*H):

3800*600*1000

اجزای اصلی:

موتور، بلبرینگ، دنده، پمپ، PLC

برجسته کردن:

metal decoration roller shutter door machine,roller shutter door machine 15m/min,ppgl door shutter roll forming machine

roller shutter door machine 15m/min

ppgl door shutter roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

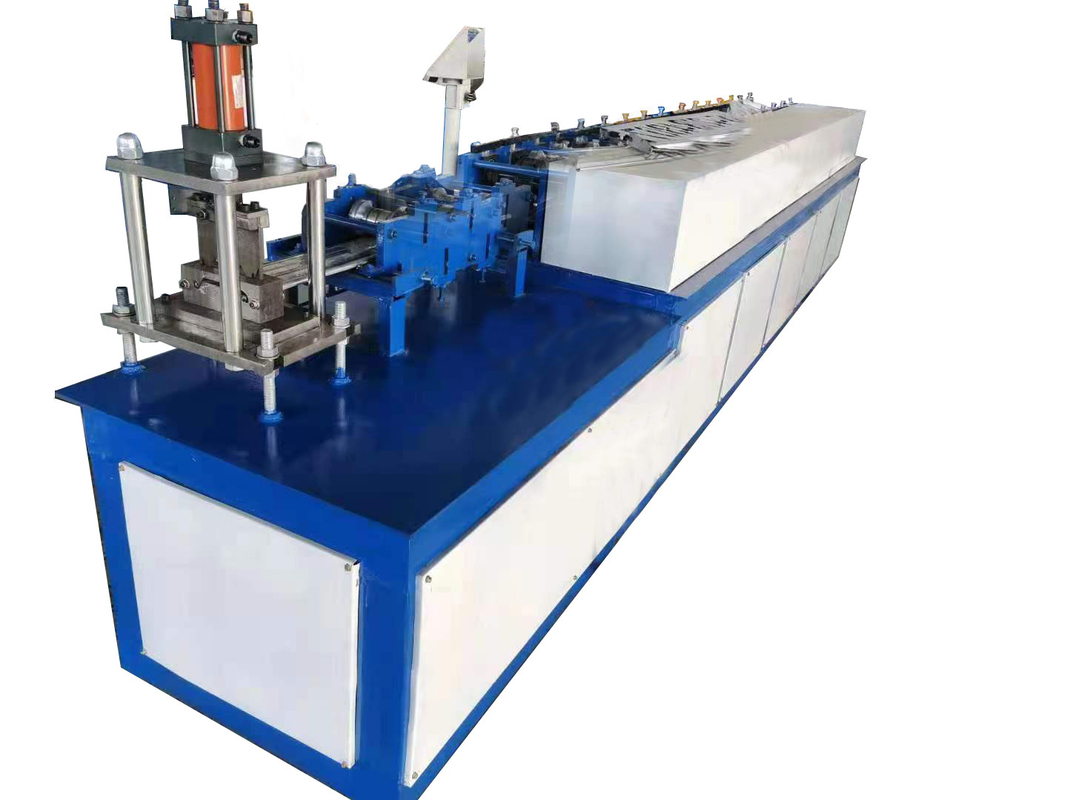

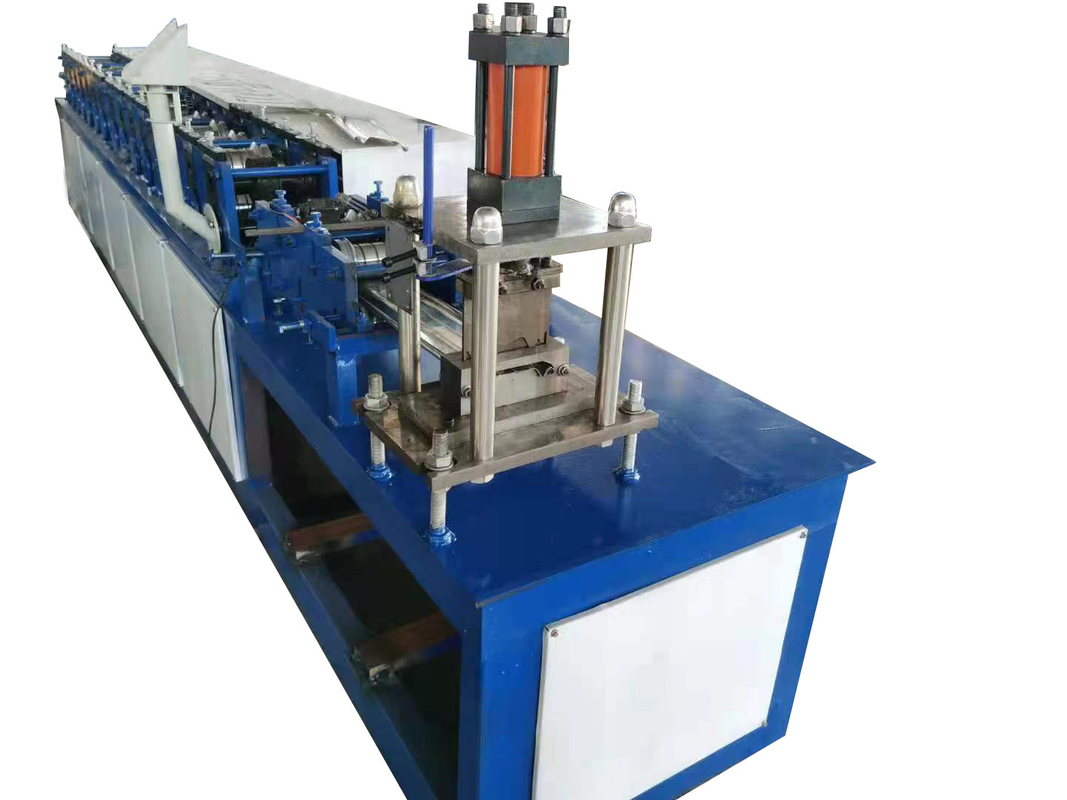

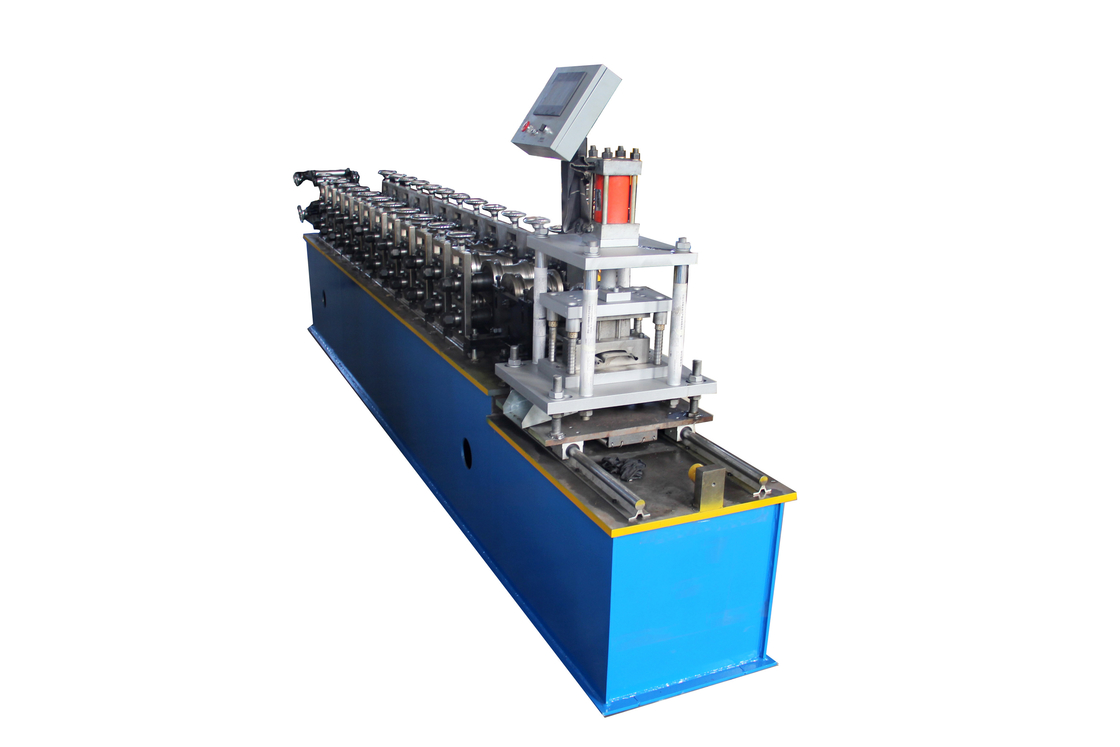

Metal Decoration Shutter Door Roll Forming Machine High Speed 8-15 M / Min

1. This shutter door roll forming machine is widely used for garage door /commercial door / industrial door and so on .
2. A whole shutter door main inculde three parts , shutter door salt and sliding U guide rail with bottom strip . These three part work together to give us a safity environment .
3. it can embossing different patterns according to customer's requirements. Meanwhile, it has manual and automatic two operate model, in this way, client can easy operat this machine.
As to the shutter door can protect the shop or garage well , it is very popular in the world and has a large market .

Specification

No.	Item	Description
1	Coil	Width:100mm
2	Forming Speed	8-15m/min
3	Roller stations	12 stations + 5 straightening devices
4	Material of Roller	Bearing steel, plate hard
5	Material of Main Shaft	45# steel finishing machining and then slack
6	Material of Shaft	43mm 45# steel forged
7	Power installation	3kw motor 1 set, 250 model speed reducer 1 set
8	Driving method	Gear&chain transmission
9	Feeding equipment	Vertical type decoiler 1 set
10	Electric Control System	PLC automatic control system
11	Cutting system	Pneumatic automatic cutting machine 1 set
12	Material of Cutter	Gcr12
13	Dimension	38006001000
14	Material Thickness	0.8-1.2mm
15	Power Supply	380V60HZ 3 phases
16	Cutting Accuracy	±2mm

Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
