Name: 3 Phases Shutter Roll Forming Machine For Flat And Curved Slats
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درب کرکره ای
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

3 Phases Shutter Roll Forming Machine For Flat And Curved Slats

3 phases shutter roll forming machine,curved slats shutter roll forming machine,gl roller shutter door forming machine

curved slats shutter roll forming machine

gl roller shutter door forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

درب کرکره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ درب کرکره ای برای لت های تخت و منحنی

قدرت برش:

4 کیلو وات

ولتاژ:

380 ولت 50Hz 3 مرحله

نوع برش:

هیدروالیک

قاب بدنه دستگاه:

ساختار عمودی چدنی

اجزای اصلی:

موتور، بلبرینگ، دنده، پمپ، PLC

حالت برش:

برش ردیابی خودکار

سیستم کنترل:

PLC

برجسته کردن:

3 phases shutter roll forming machine,curved slats shutter roll forming machine,gl roller shutter door forming machine

curved slats shutter roll forming machine

gl roller shutter door forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

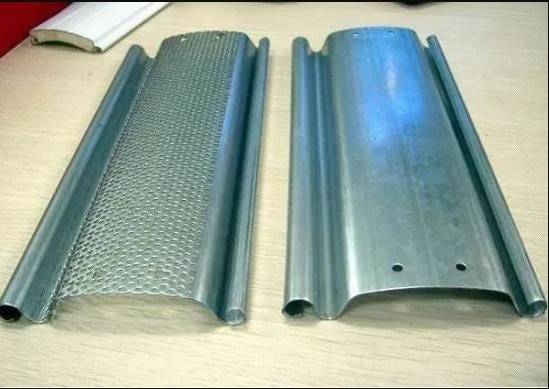

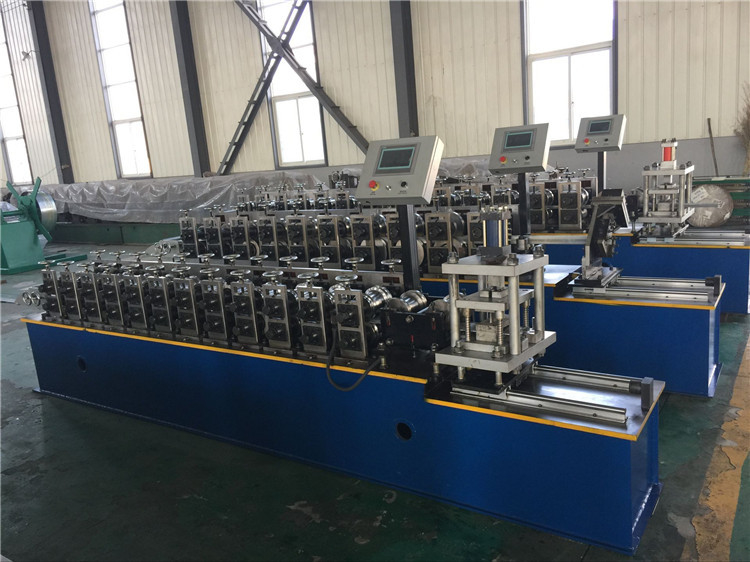

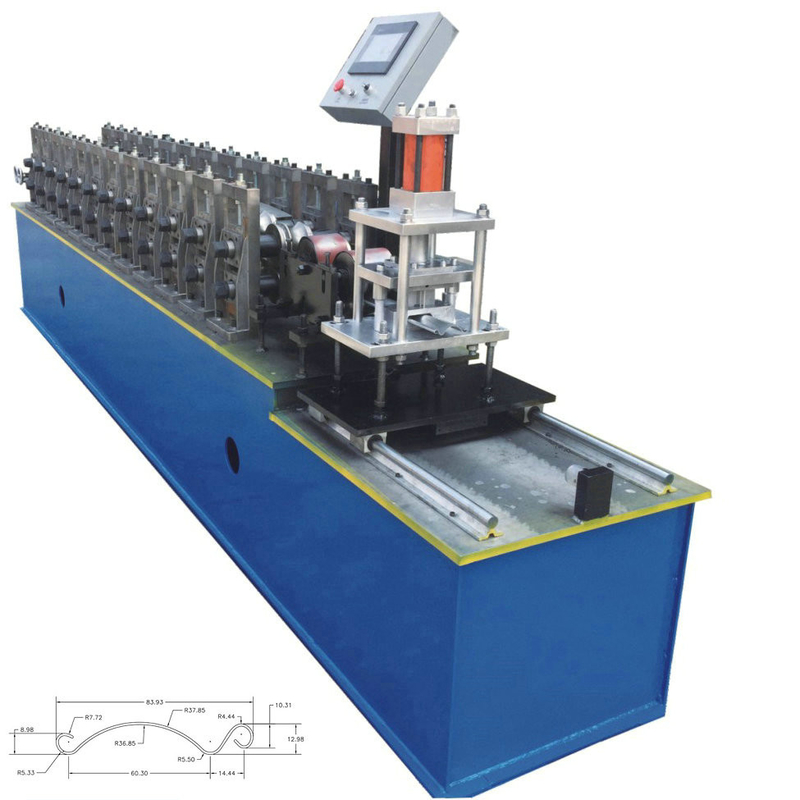

Roller Shutter Door Roll Forming Machine For Flat And Curved Slats

For the roller shutter door making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.7-1.4mm, the shape will be design by your demand.
The shutter door is separated from the wall by the action of the wall, which consists of the curtain plate, the seat plate, the guide rail, the bearing, the reel, the box, the control box, the rollier shutter door machine, the stopper, the lintel, the manual quick release switch, And insurance devices and other parts of the composition, generally installed in the inconvenience to use the wall separated parts. Rolling doors for commercial facade, garage, shopping malls, hospitals, factories and mines and other public places or residential. Especially the larger openings, inconvenience to install the ground door of the place to play a convenient, fast opening effect.

Specification

No.	Item	Description
1	Raw material	galvanized steel
2	Material thickness	0.7-1.2mm (depends on customer's request)
3	Machine work sped	20m/min(8pcs/min,2.5m/pcs)
4	Rolling station	12 stations
5	Roller material	GB-Cr12
6	Transmission	by gear
7	Drive motor	4kw
8	Bearing brand	Harbin

3 Phases Shutter Roll Forming Machine For Flat And Curved Slats 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
