Name: Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سرریز
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi

0.3mm downspout forming machine,ppgi steel downspout forming machine,3 phases downspout roll forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین آلات فولادی آب باران رول شکل دهی دستگاه Downpipe

مشخصات مواد:

آلومینیوم، آلومینیوم روکش شده، گالوانیزه و رنگ شده

ولتاژ:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

ضخامت:

0.3 تا 0.8 میلی متر

گارانتی:

1 سال

قدرت حرکتی اصلی:

7.5 کیلو وات

نیروگاه ایستگاه هیدرولیک:

4 کیلو وات

عرض تغذیه:

398 میلی متر

عرض پوشش:

مدل# Wlfm89-118 118mm است

برجسته کردن:

0.3mm downspout forming machine,ppgi steel downspout forming machine,3 phases downspout roll forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

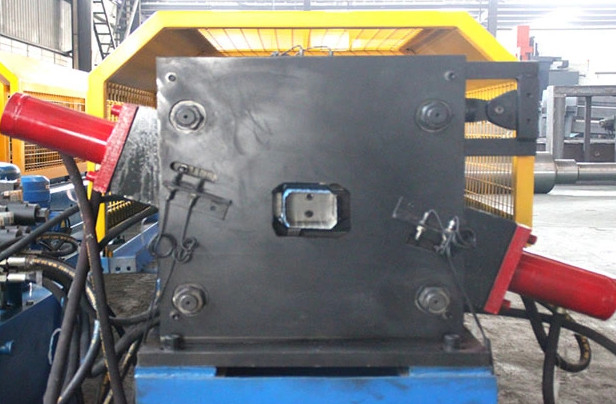

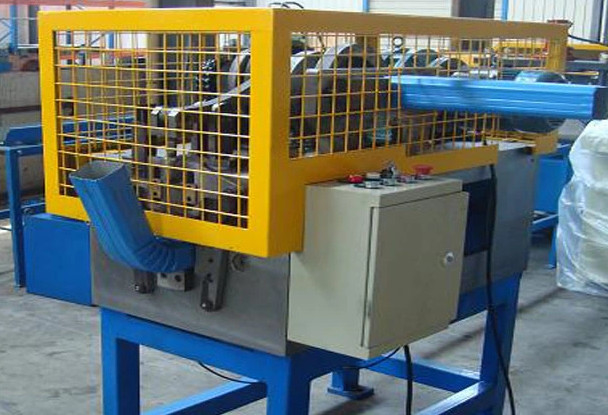

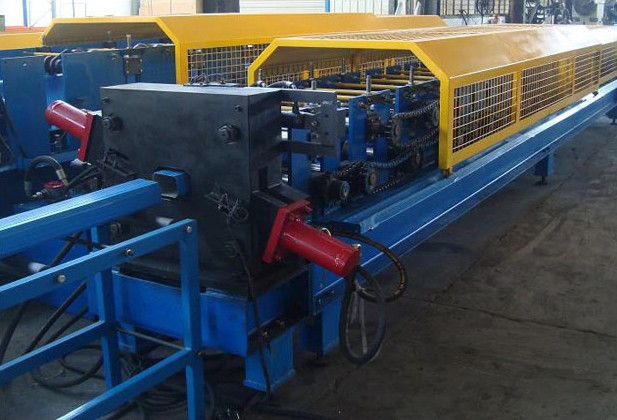

Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.

Specification

Item	Description
Material Spec	Aluminum, coated aluminum, galvanized and painted galvanized steel sheet
Thickness	0.3 mm to 0.8mm
Main motor power	7.5 kw
Hydraulic station power	4 kw
Feeding width	398mm
Cover width	Model# WLFM89-118 is 118mm
Coil stress	Q235 Mpa (33KSI); maximum stress yield is Q345Mpa (50KSI)
Roll forming Speed	10~12 m/min
Cutting Tolerance	≤±2mm
Manual Uncoiler	Max. Capacity: 3000kgs
Manual Uncoiler	Roll-formed and length-set cutting

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
