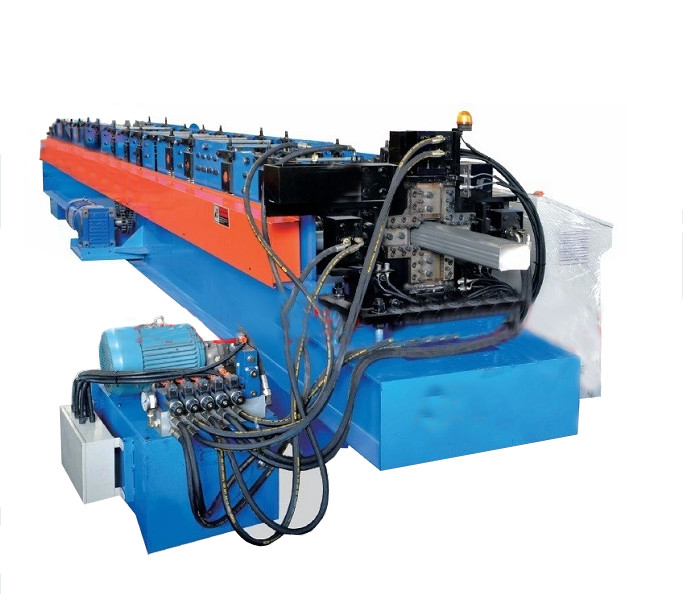

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile

3phases down pipe roll forming machine,profile down pipe roll forming machine,cold metal downspout pipe forming machine

profile down pipe roll forming machine

cold metal downspout pipe forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین آلات فولادی آب باران رول شکل دهی دستگاه Downpipe

مشخصات مواد:

آلومینیوم، آلومینیوم روکش شده، گالوانیزه و رنگ شده

ولتاژ:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

مواد تشکیل دهنده غلتک:

فولاد 45# با عملیات فورج، تراش CNC، روکش کروم سخت

گارانتی:

1 سال

قدرت حرکتی اصلی:

5.5 کیلووات

نیروگاه ایستگاه هیدرولیک:

4 کیلو وات

برجسته کردن:

3phases down pipe roll forming machine,profile down pipe roll forming machine,cold metal downspout pipe forming machine

profile down pipe roll forming machine

cold metal downspout pipe forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

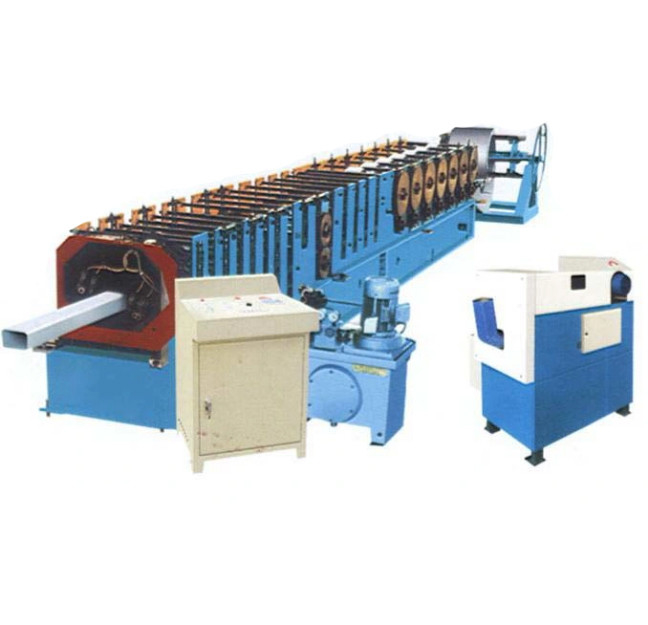

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.

The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable

Specification

The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.4-0.6mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	16 stages
Material of forming roller	45# steel with forge treatment, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	5.5KW
Max. Line speed of roll former	12-15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	3 KW
Material of cutting blade	Cr12, heat treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9500mm×1200mm×1400mm
Major Color of Machine Painted	RAL 5015 (Blue)or as per customer's requirements

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
