Name: Water 70mm CE Down Pipe Roll Forming Machine / Production Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سرریز
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Water 70mm CE Down Pipe Roll Forming Machine / Production Line

70mm down pipe roll forming machine,ce down pipe roll forming machine,cold metal shaping downpipe machine

ce down pipe roll forming machine

cold metal shaping downpipe machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خط تولید خط تولید دستگاه رول شکل دهی لوله های آب پایین

قطر شفت ها:

70 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

سرعت:

10-15 متر در دقیقه

اجزای اصلی:

موتور، پمپ، PLC

گارانتی:

1 سال

مواد غلتک:

45#، آبکاری کروم سخت سطحی

عرض:

300 میلی متر

برجسته کردن:

70mm down pipe roll forming machine,ce down pipe roll forming machine,cold metal shaping downpipe machine

ce down pipe roll forming machine

cold metal shaping downpipe machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

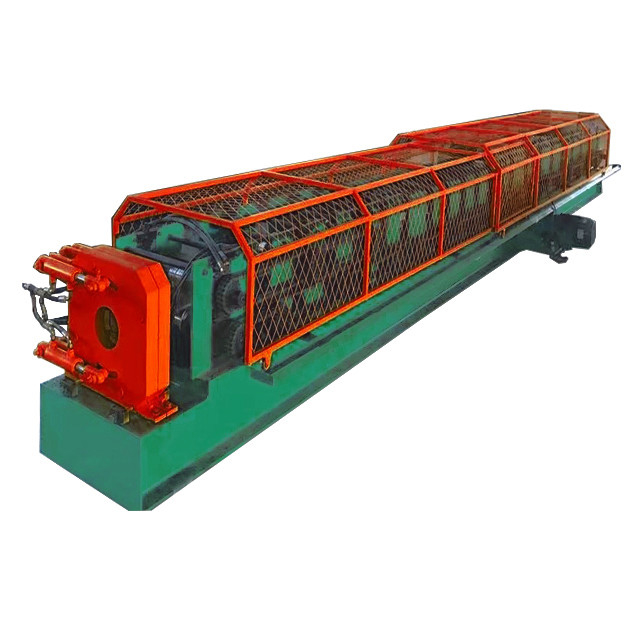

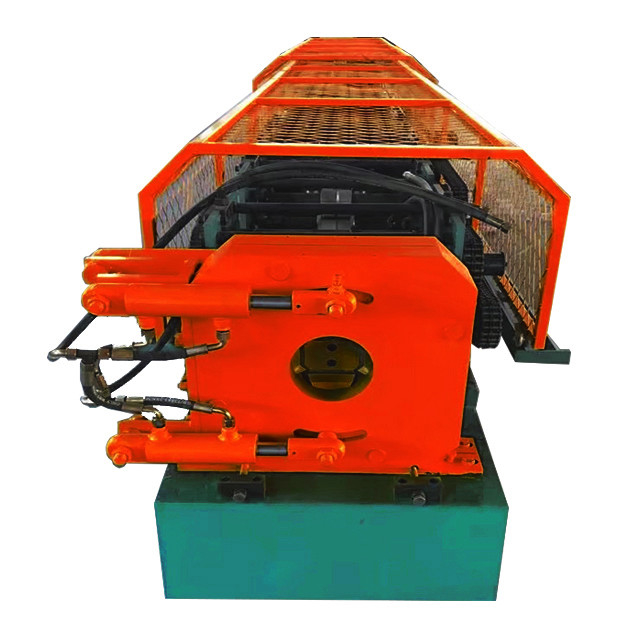

Water Down Pipe Roll Forming Machine Downpipe Making Production Line

Downpipe Making Production Line down Pipe Roll Forming Machine,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table

1.The whole line working speed is about 10m/min.,max working speed could be 15 meters per minute.
2.Feeding material width should be confirmed before machine design .the width are changeable,
3.Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing
5.Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
6.Pre-cutting are provided as you want.

Specification

uitable Material	Material	GI, PPGI, PPGL
	Width	300mm
	Thickness	0.3-0.8 mm
Material of rollers		45#, surface hard chromium plating
Rows of rollers		16 stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		70 mm
Material of cutting blade		Cr12 Heat Treatment
Speed		10-15m/min
Side plate thickness		18 mm
Main power		5.5 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		4000mm1000mm1500mm
Weight(About)		5.8 tons

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
